Hoppe 16mm Manual Top Extension, Tongue at 32.12", Radius end
Use the arrows or swipe left to view all images for this product
Hoppe 16mm Manual Top Extension, Tongue at 32.12", Radius end
Part Number: $55.35Hoppe 16mm Manual Top Extension, Tongue at 32.12", Radius End (to replace Barber & Ross door hardware.)
Manual version engages multipoint when door handle is lifted.

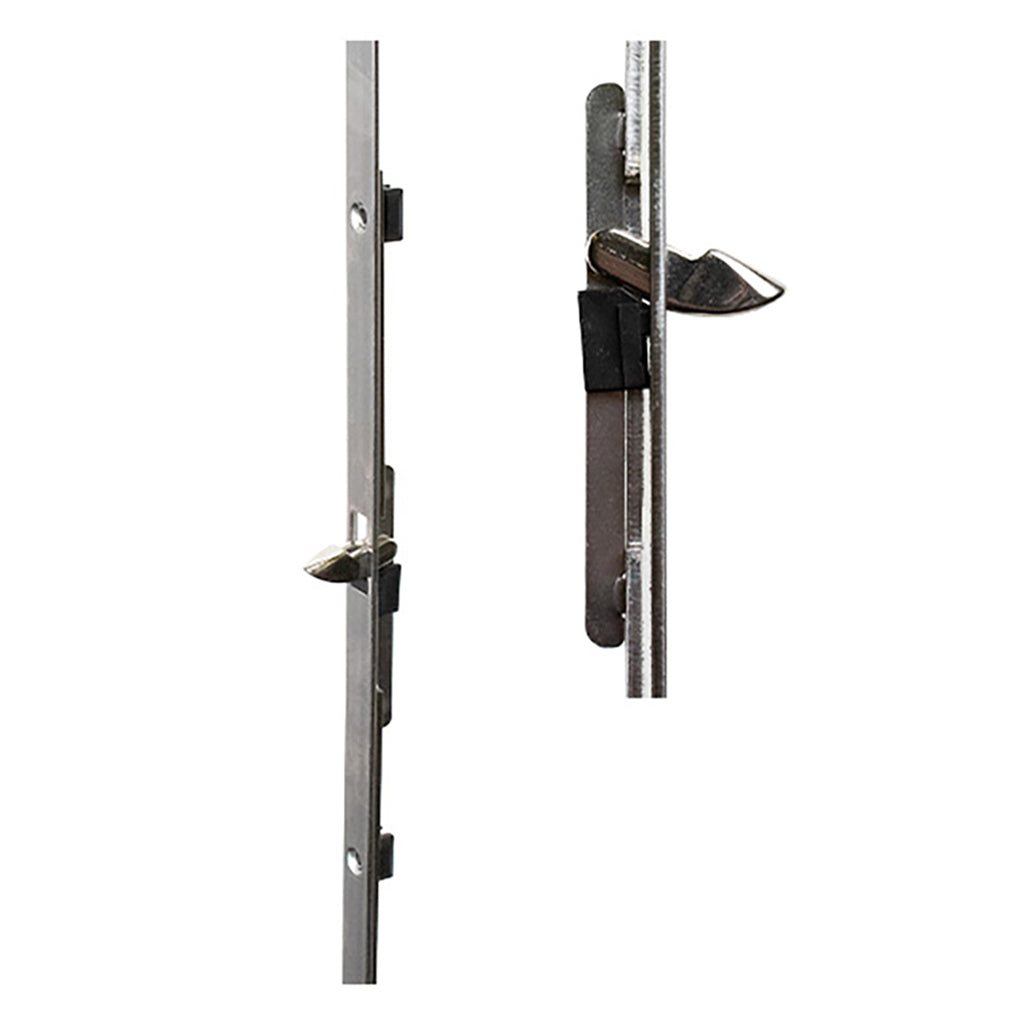

While offering security in the locked position, the HLS9000 tongue retracts when opened, giving a smooth clean appearance.

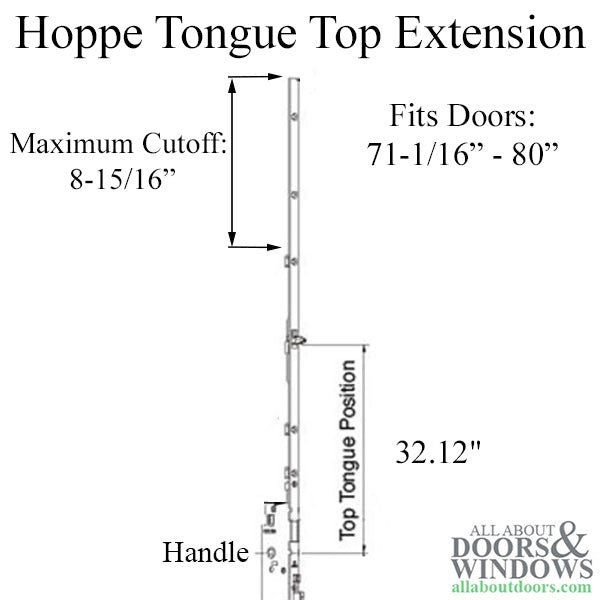

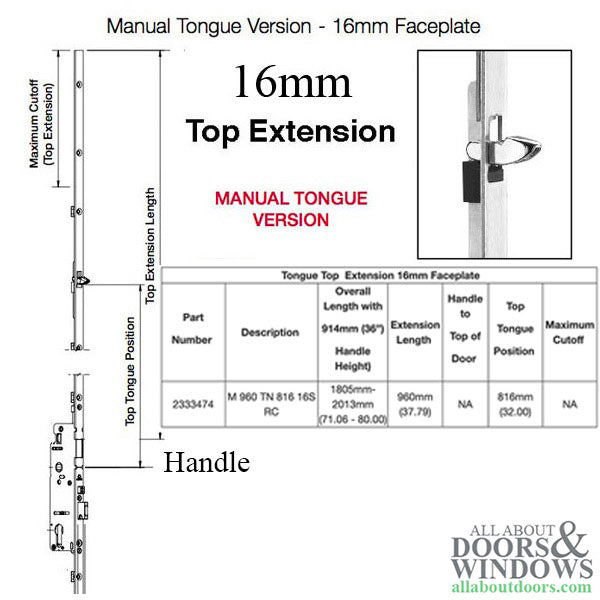

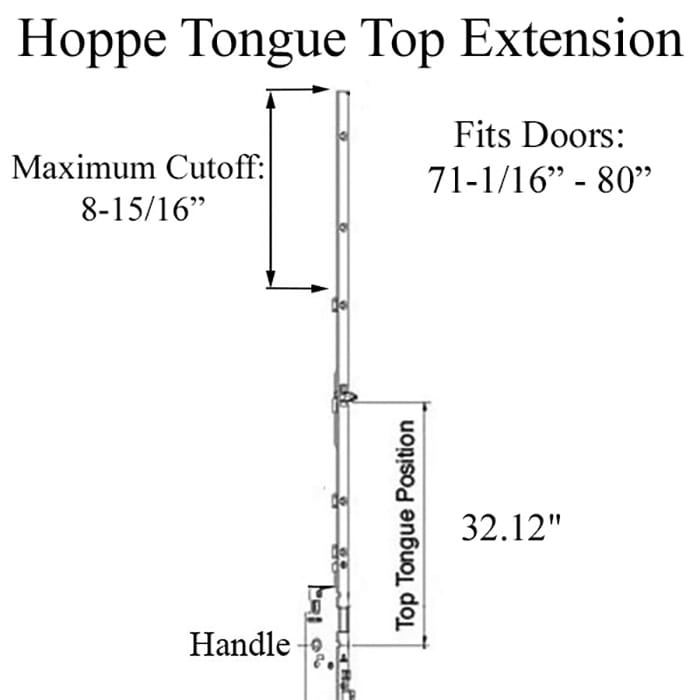

Overall length with 914mm (36") Handle Height: 71.06" - 80" (1805mm-2013mm)
Faceplate width: 16mm

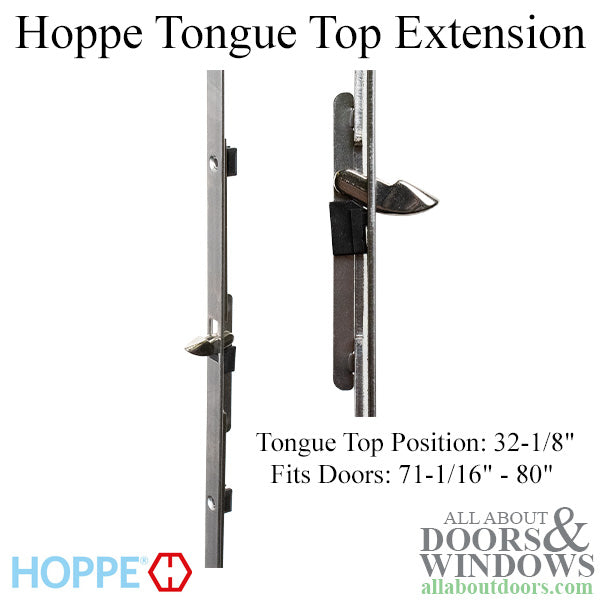

Top Tongue: 32.12" (816mm)
Extension Overall Length: 37.80" (960mm)
Faceplate End: radius
Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - Hoppe Top Extension with Tongue 75.59"
Hoppe 16mm Manual Top Extension, Tongue at 32.12", Radius End (to replace Barber & Ross door hardware.)Manual version engages multipoint when door handle is lifted.
While offering security in the locked position, the HLS9000 tongue retracts when opened, giving a smooth clean appearance.
Overall length with 914mm (36") Handle Height: 71.06" - 80" (1805mm-2013mm)Faceplate width: 16mm
Top Tongue: 32.12" (816mm)
Extension Overall Length: 37.80" (960mm)
Faceplate End: radius
Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - Hoppe Top Extension with Tongue 75.59"
