HOPPE 16mm HLS9000 manual top extension with two Swing Hooks.

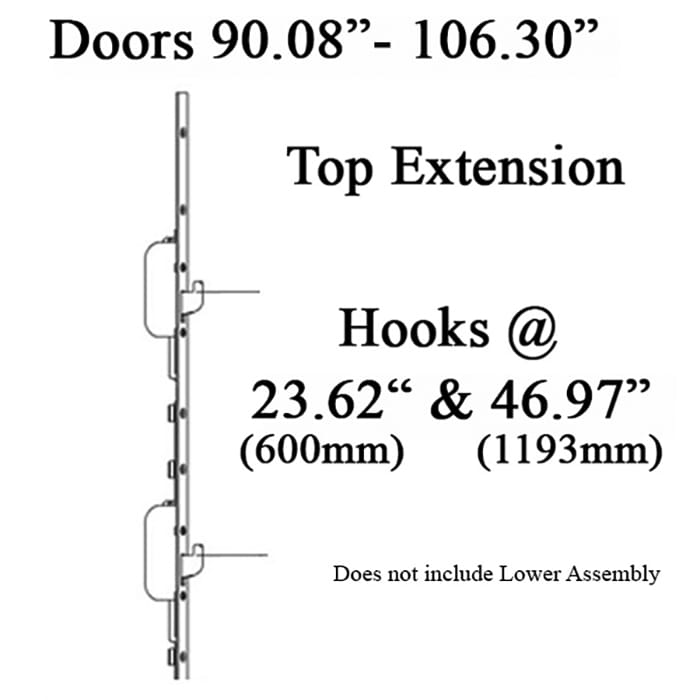

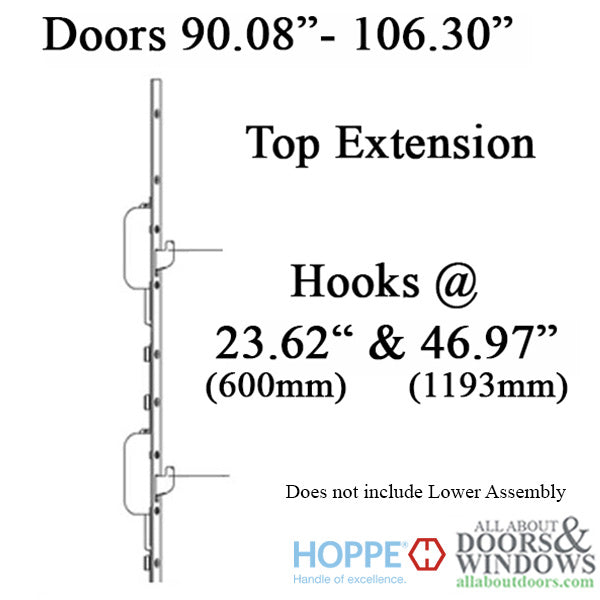

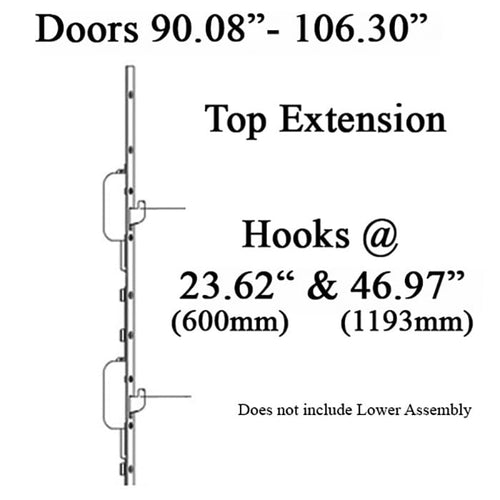

Application: Doors 90.08-106.30” w/ 36" handle height
Locking Type: 2 swing hooks

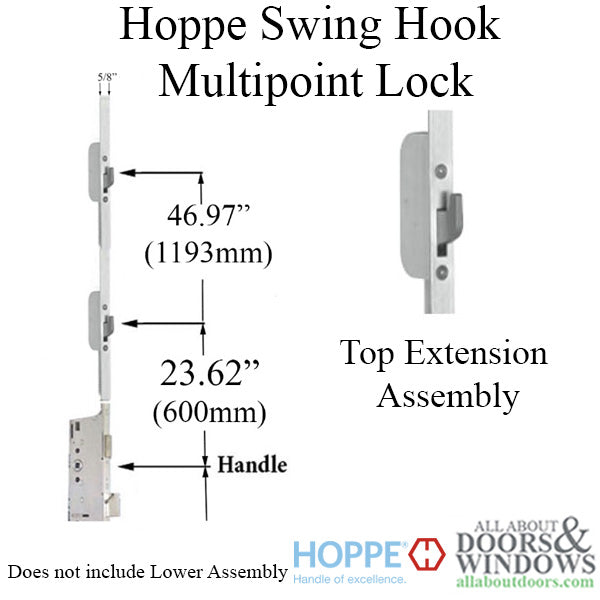

1st  Top Hook: 23.62 inches ( 600mm)
2nd Top Hook: 46.97 inches (1193mm) square end

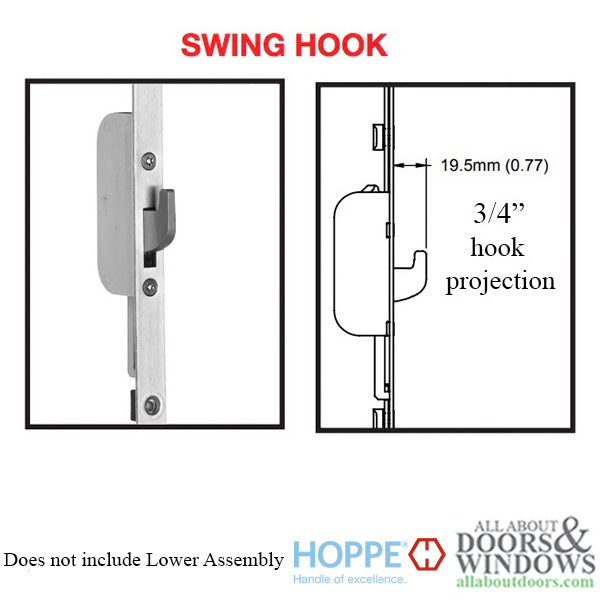

Hook Projection: 3/4 inch (19.5mm)
Face Plate Width: 5/8 inch (16mm)
Extension Length: 68.7 inches (1745mm)
Handle to top of Door: 70.31 inches (1786mm)
Maximum Cutoff: 16.22 inches ( 412mm)
Number of Screws:  10 Stainless Steel

Related Parts:
Available Bottom Gears: Hook at 29.65"
3868868 - 35/92 / 1-3/8" (35mm) Backset
3868876 - 45/92 / 1-3/4" (45mm) Backset
3868884 - 60/92 / 2-3/8" (60mm) Backset
3868892 - 70/92 / 2-3/4" (70mm) Backset

SPECIAL SIZE Hook @ 25.7" / 41.11" Handle Height - 3814341

Available Top Extensions
Part Number     Doors Panels Height:  Hook Position
3868770 - Doors 62.80-79.25”        hook @ 19.69“
3868796 - Doors 78.54-79.25”        hook @ 35.43“
3868809 - Doors 78.54-92.24”       hook @ 35.43“
3868817 - Doors 78.54-92.24”       hook @ 19.69“ & 35.43”
3868825 - Doors  90.08-106.30"    hook @ 23.62“ & 46.97”
3868833 - Doors 102.17 - 126.97” hook @ 23.62“ & 59.05”

To better understand please see our Multipoint Lock Glossary Of Terms
