Magnum 19 inch flush slide bolt for wood door astragals.

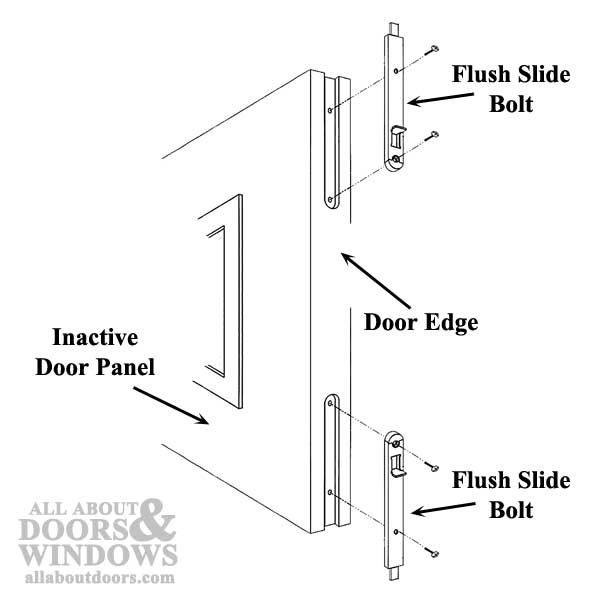

This slide bolt is used primarily with Trilennium multipoint locks.

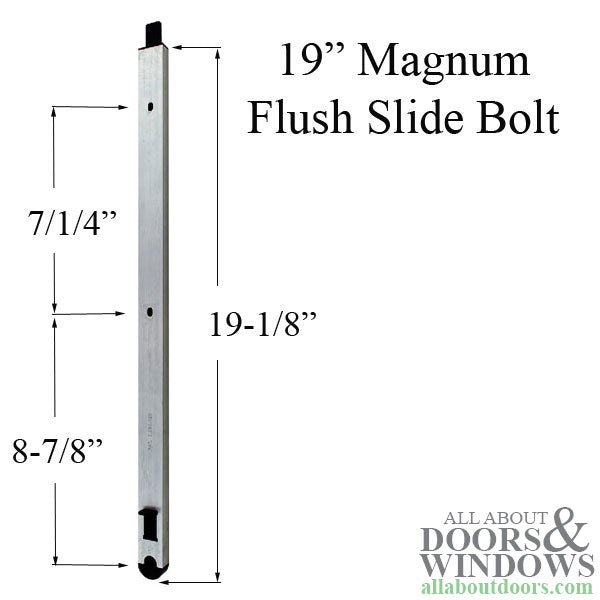

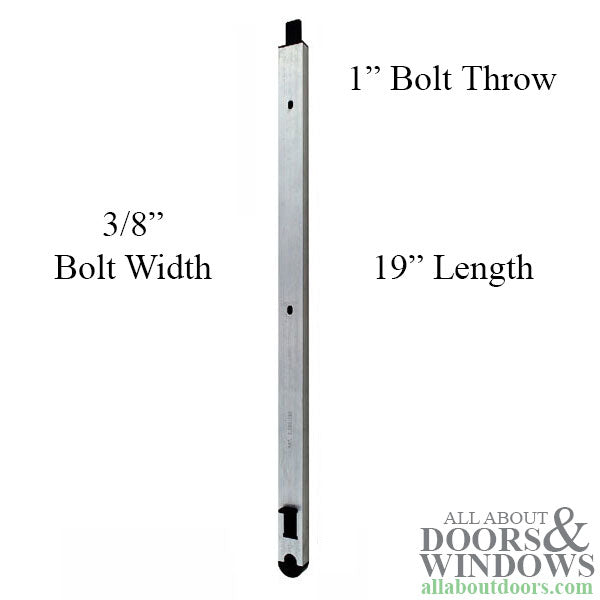

Magnum Bolt Specifications:
Housing length: 19"
Housing thickness: 1/2 Inch
Standard Profile: 3/8"
Housing width: 1  Inch
Bolt throw: 1 Inch
Bolt width: 3/8 Inch
Bolt thickness: 1/8 Inch
Installation Screw Holes: 3
Square Corner Screw Center: 7-1/4 Inch
Radius corner to Center of screw hole: 5/8 Inch

Contents: 1 Flush Bolt, no screws
