2-point Double Hook Sliding Door Lock 11-3/4" Face with Pin
Use the arrows or swipe left to view all images for this product
2-point Double Hook Sliding Door Lock 11-3/4" Face with Pin
Part Number: $46.67 to $84.91Most Common 2 Hook Lock, Gemini Internal latch two point double hook sliding door mortise lock for wood or vinyl doors.

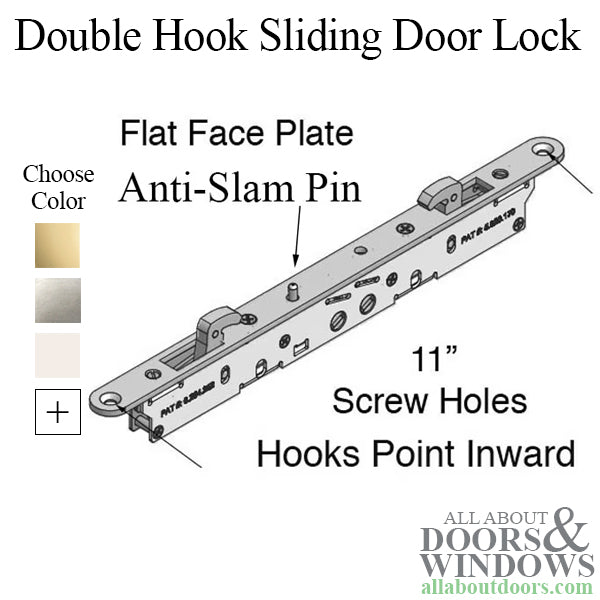

This model has anti slam pin and replaces older models without pin.
Used by Sash Control, Marvin, Weather Shield and others

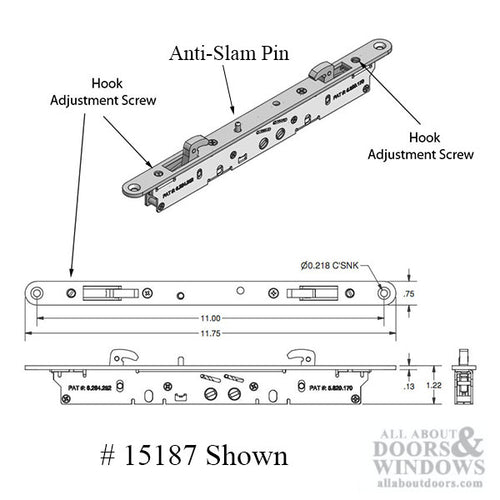

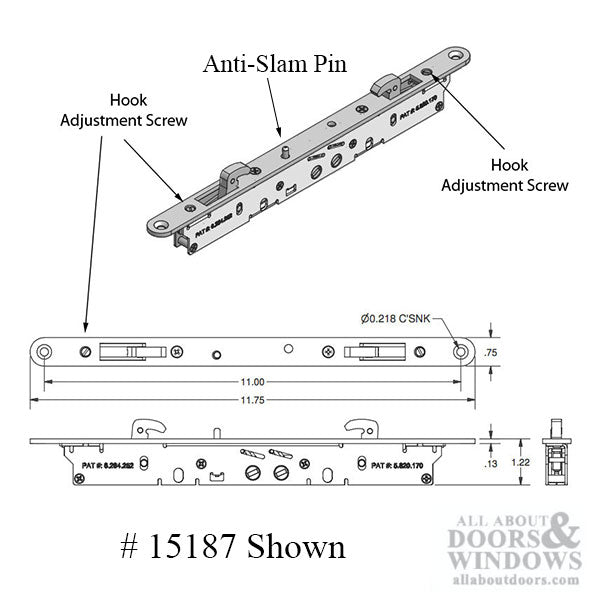

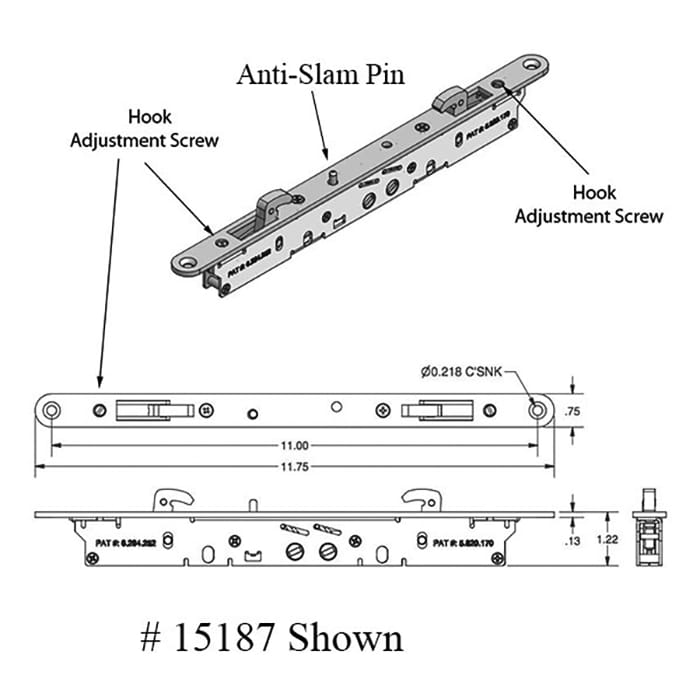

Backset: 7/8 inch ( 22mm)
Face Plate Type: Flat
Face plate Width: 3/4 inch
Face plate thickness: 1/8 inch
Faceplate Length: 11-3/4 Inch

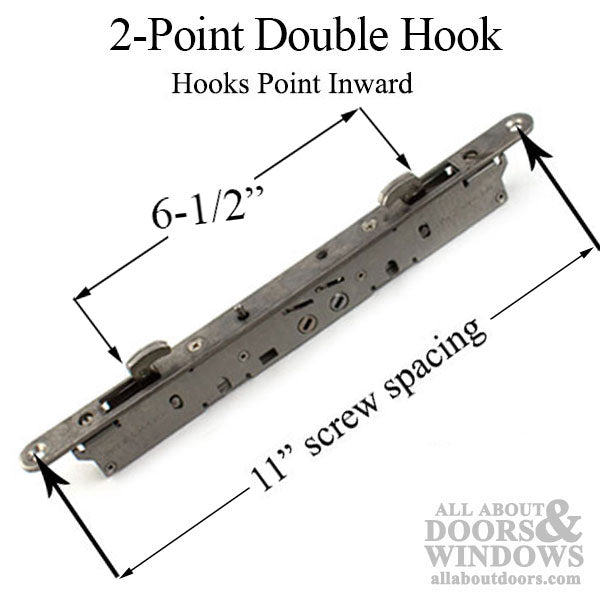

Faceplate Screw Holes: 11 inches
Mortise Lock Depth: 1-1/4 inches

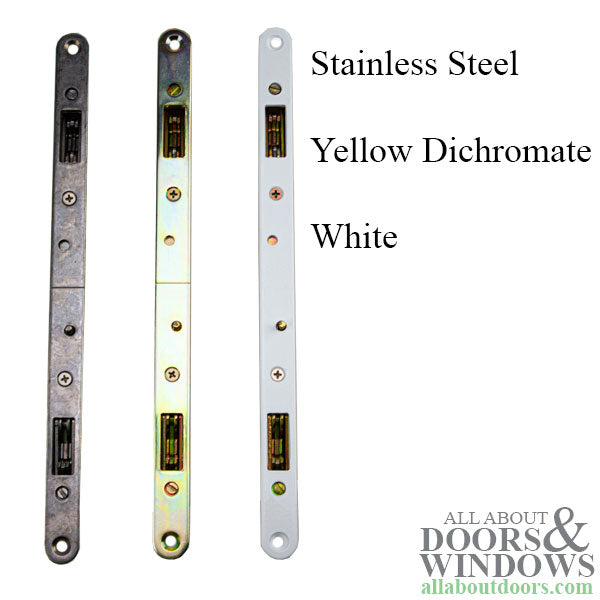

Color Options:
Stainless Steel
Yellow Dichromate
White
Please review additional images as there are several types of locks that look the same, please compare
measurements.
Priced and sold each.
Related Parts: Narrow 5/8 Width, 10-7/8 length
15162 - Flat Strike
15163 - 1/2" Raised Strike
15164 - 3/4" Raised Strike
15170 - 1" Raised Strike
Most Common 2 Hook Lock, Gemini Internal latch two point double hook sliding door mortise lock for wood or vinyl doors.
This model has anti slam pin and replaces older models without pin.
Used by Sash Control, Marvin, Weather Shield and othersBackset: 7/8 inch ( 22mm)
Face Plate Type: Flat
Face plate Width: 3/4 inch
Face plate thickness: 1/8 inch
Faceplate Length: 11-3/4 Inch
Faceplate Screw Holes: 11 inches
Mortise Lock Depth: 1-1/4 inches
Color Options:
Stainless Steel
Yellow Dichromate
White
Please review additional images as there are several types of locks that look the same, please compare
measurements.
Priced and sold each.
Related Parts: Narrow 5/8 Width, 10-7/8 length15162 - Flat Strike 15163 - 1/2" Raised Strike15164 - 3/4" Raised Strike15170 - 1" Raised Strike
