Winkhaus 20mm Cobra 35/92 Multipoint Lock System with Hooks 82-7/8 inch

Part Number: 49911-60
Please note, this product has been discontinued.
Winkhaus Euro version multipoint lock with two locking hook bolts.

Markings on Faceplate: Wink Haus SKG

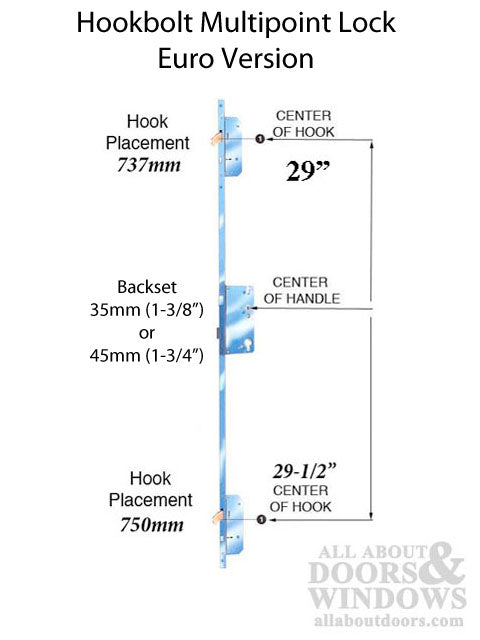

Top Hook Position: 29 inches (737 mm) center of hook
Bottom Hook Location: 29-1/2 inches (750 mm) center of hook
Handle Height: 36 inch; Croppable from 34 inch to 41-5/16 inch
Faceplate Color: Stainless Steel (SS)

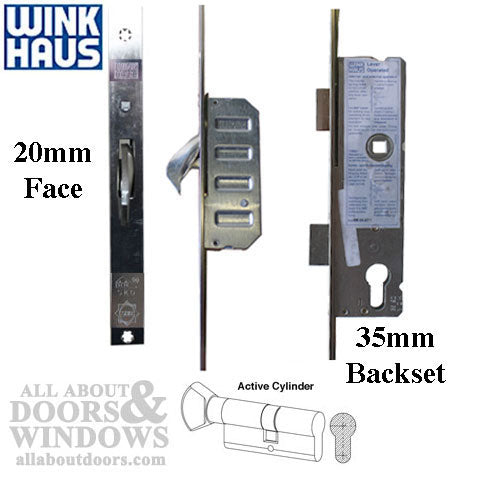

Face Plate width: 25/32 inch (20 mm)
Backset: 1-3/8 inch (35 mm)
Handle to cylinder Spacing: 3-5/8 inch (92 mm)
Spindle Diameter: 5/16 inch (8 mm)
Cylinder type: Euro / Profile

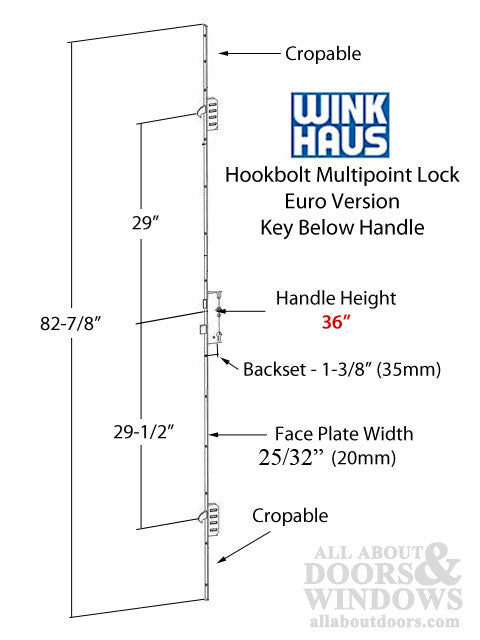

Overall length of lock = 82.842”  before cropping

All hook measurements are from center of handle to center of hook.
Lock is croppable at top or bottom for different door and handle heights

Priced and sold each.

Optional Replacement: Hoppe Tongue Version
