Pease entry doors used the ESSVE Multipoint lock with a deadbolt and 2 Hooks - Discontinued, Replacement with 4990613.
Please Read all information to insure a proper replacement.

Pease Front Door Multipoint Lock Specifications:

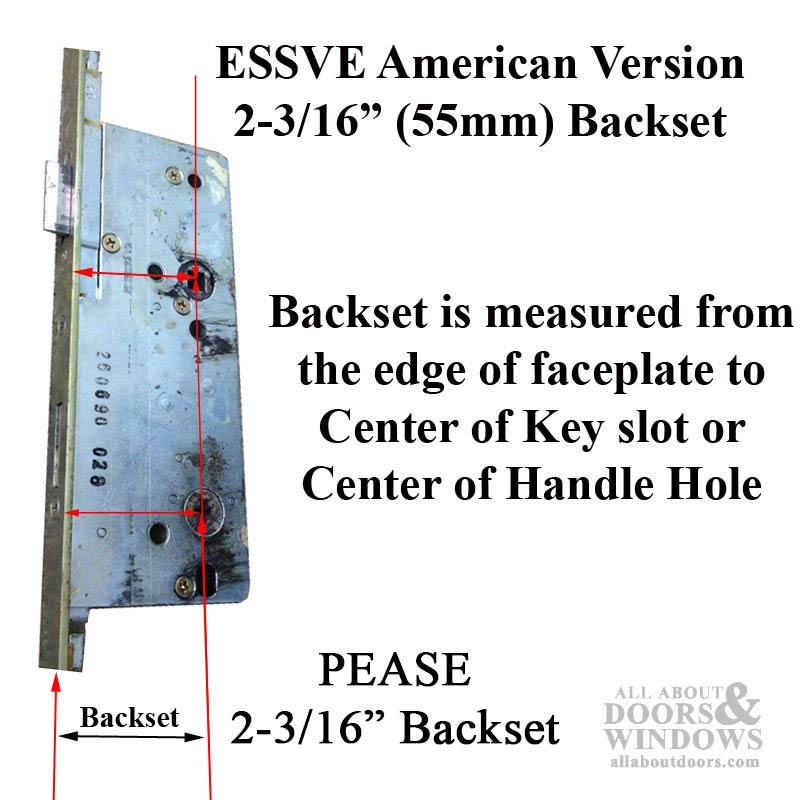

Backset: 2-3/16 inch (55mm) MOST PEASE DOORS
Faceplate Width: 3/4 inch ( 20mm)

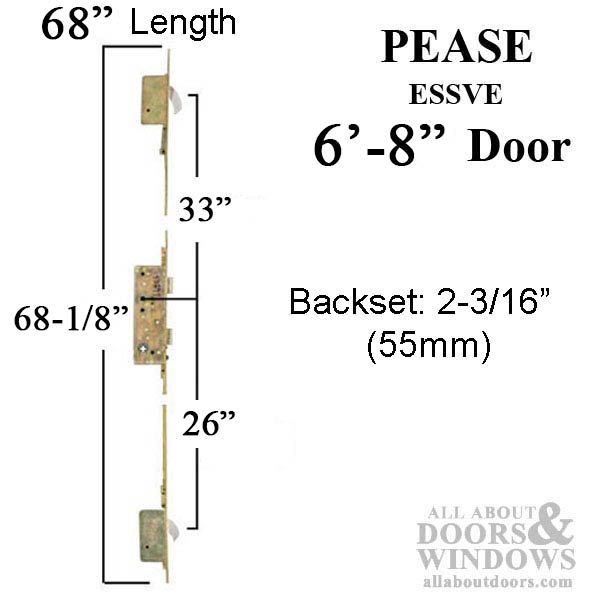

Overall faceplate length: 68 inches (1727mm) with radius ends.
Lower Gear Assembly, Lower Hook @ 26"
Upper Extension with Hook @ 32-3/4"

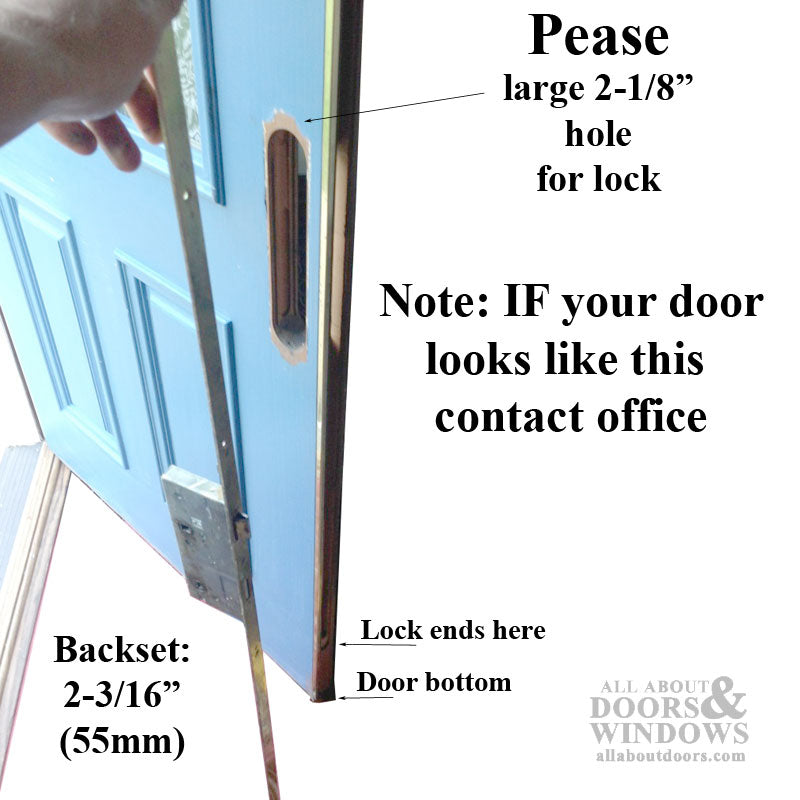

Bore Diameter in door: 1 inch to 2-1/8 inch, most were 2-1/8 inch

Pease Replacement Kit, Custom for 80 inch 6-8
Backset: 2-3/8 inch (60mm) (Deeper by 3/16")
Faceplate Width: 3/4 inch (20mm)
Overall faceplate length: 68-1/8 inches, square ends (1/8" Longer)
Lower Gear Assembly, Lower Hook @ 26"
Upper Extension with Hook @ 32-3/4"
Stainless Steel Installation Screws
Overall Length when assembled - 68-1/8 inch with square corner ends

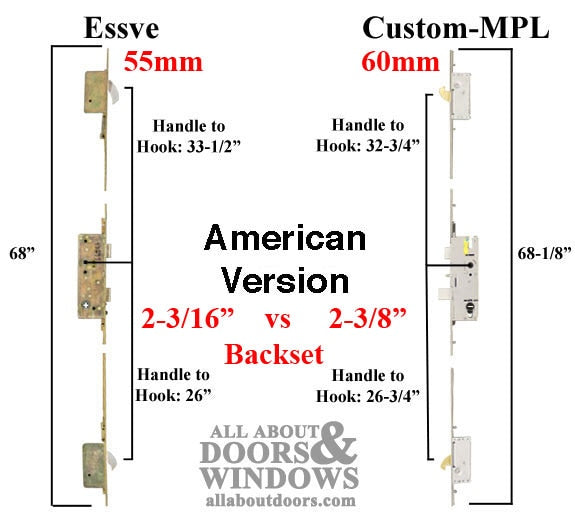

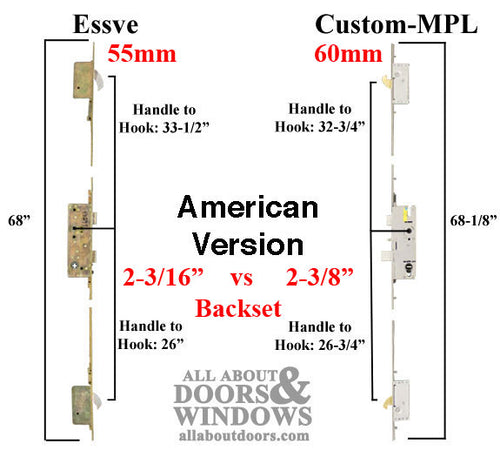

Our custom replacement 4990613 has a 2-3/8" (60mm) backset, yours is 2-3/16" (55mm).
When using the lock with 2-3/8 backset, your handle set will shift 3/16 away from the edge of the door and leave a Paint / Stain
line and most likely an impression in the door from the original plate.
Most Pease Handle sets will not work with the replacement lock.
Pease used 2 different width Handle set plates and 2 different size holes in door.
If your escutcheon plate is only 1-5/8 wide, then a new handle set trim with a 2 x 12 plate, like our or 395009 will cover the old
marks and work with the new custom multipoint lock.

If your door has a cross bore of 2-1/8 inch wide and the trim plates are 2-3/8 inches wide you will need a plate under the trim to
cover the large hole OR new handle set with a plate width of 2-1/2 inches wide or larger.

Replacement 3-point Lock Operation:
To Change Handing / Latch Reversal:
1. Lift Lever to extend deadbolt and hooks
2. Pull spring latch out, rotate latch to correct position
3. Check function of lock before closing door

To Lock door:
Lift the handle to extend locking points and turn thumbturn or key to secure in locked position.
When the Lever is lifted the Deadbolt and hooks are fully extended.
This lock has a mis-handing latch that needs to be pushed in to function. (see additional pictures above)
Please contact our office with any questions or concerns.
