20mm Manual 60/92 Gear, Tongue @ 29.65", 1" D/B, 36" HH

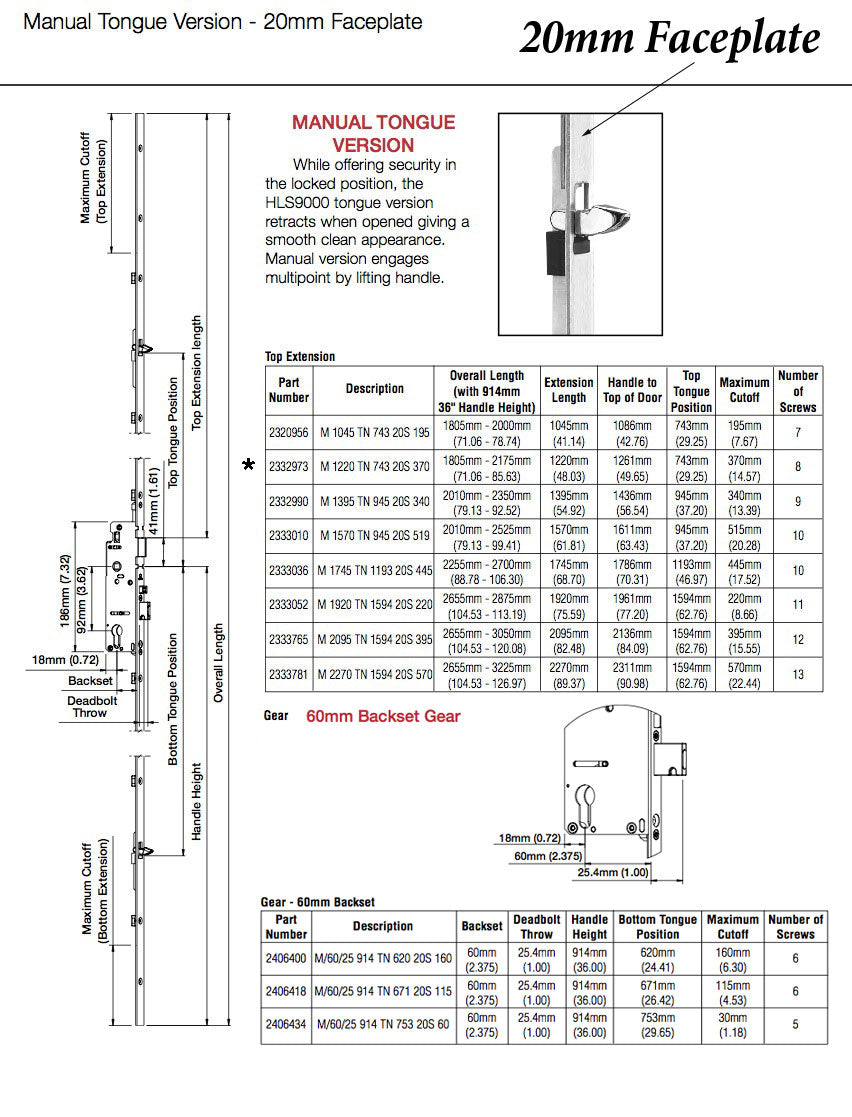

Hoppe 20mm Stainless Steel Faceplate, Manual Bottom Gear, Tongue Version for Active Door
This item is Discontinued and is limited to existing inventory.

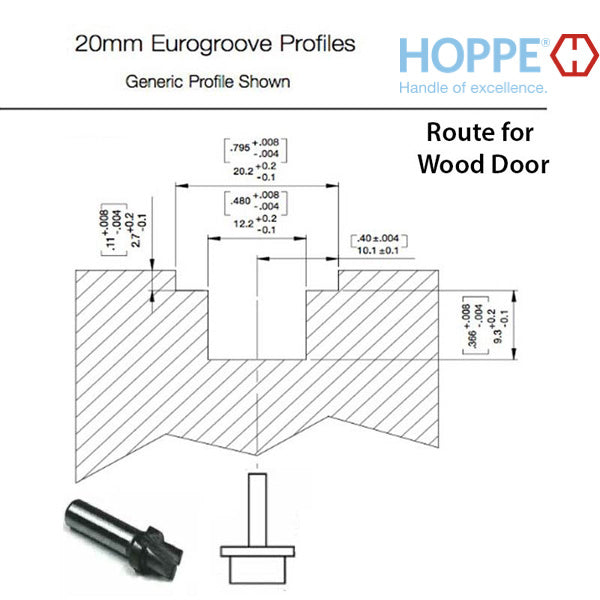

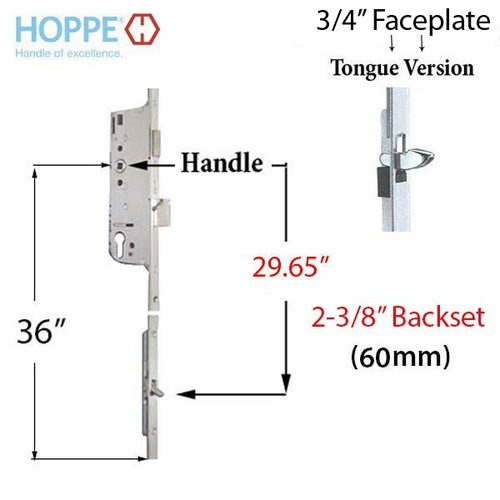

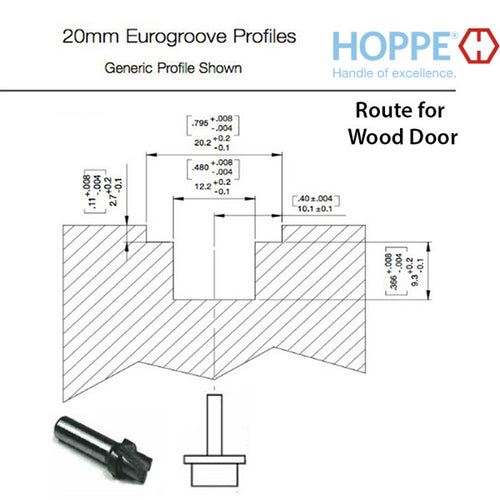

Faceplate width: 3/4", 0.78" (20mm)

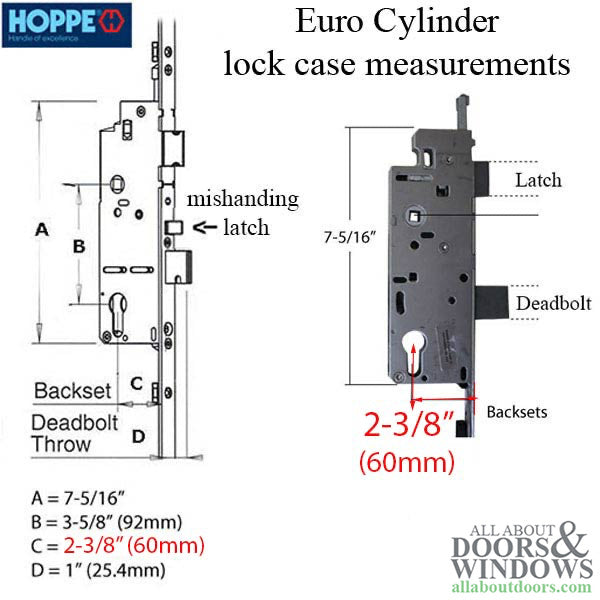

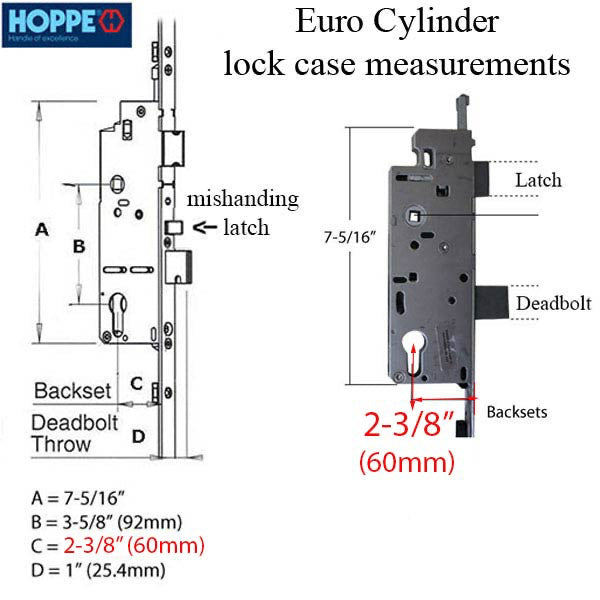

Backset: 2.37" (60mm)
Deadbolt Throw: 1" (25.4mm)

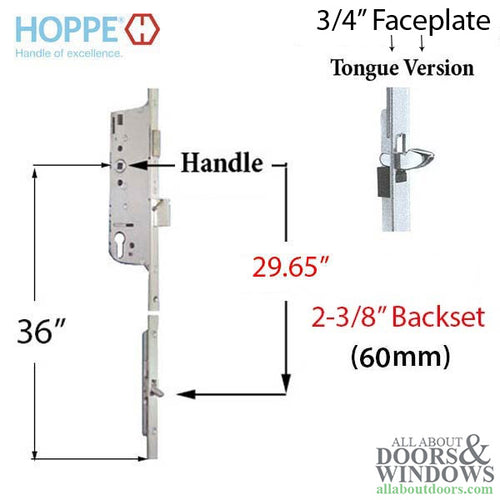

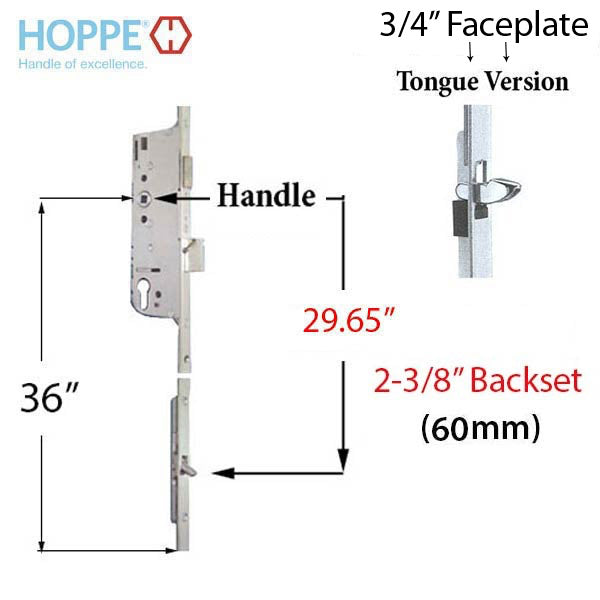

Handle Height 36" (914mm)

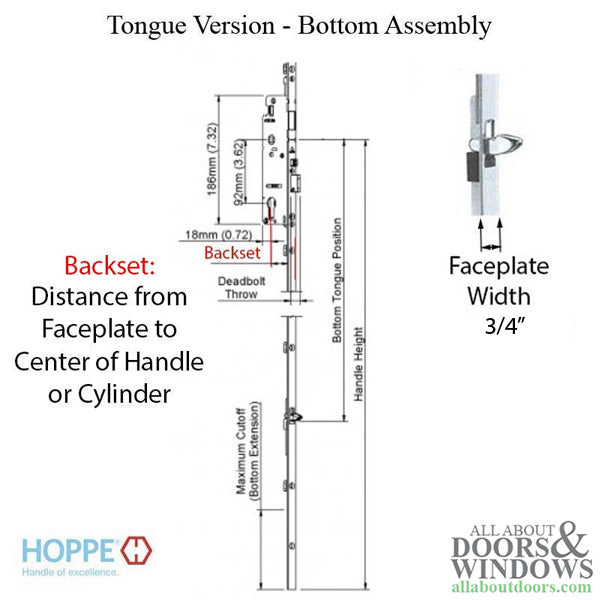

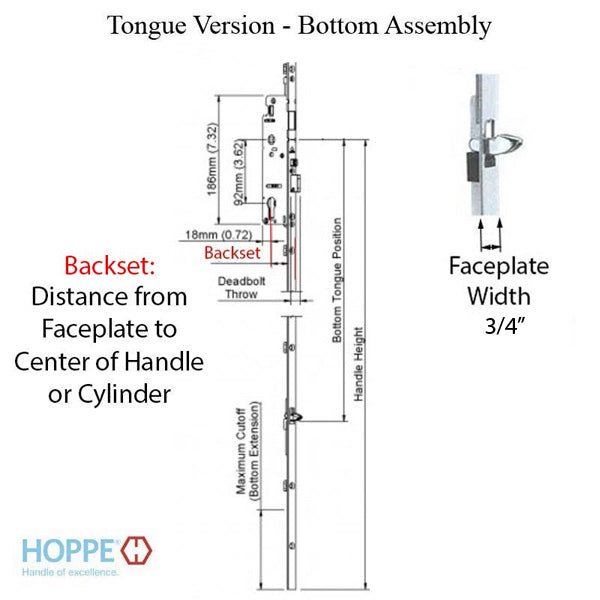

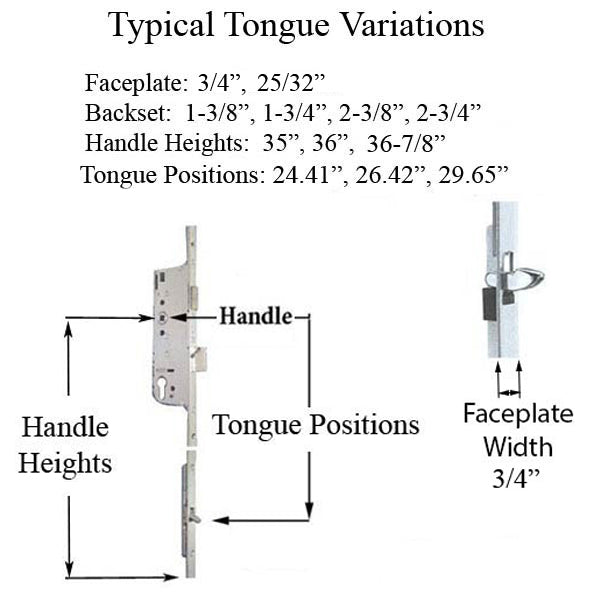

Bottom Tongue Position29.65 inches (753mm)
Maximum cutoff: 1.18 inches ( 30mm)
Number of screws: 5
Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and then depress lever.
NOTE: The Profile cylinder will need a 3-3.25” length screw for a 60mm or 70mm backset.
