This item is Discontinued and no longer available.
20mm Manual 60/92 Gear, Tongue at 26.42", 1" D/B, 36"

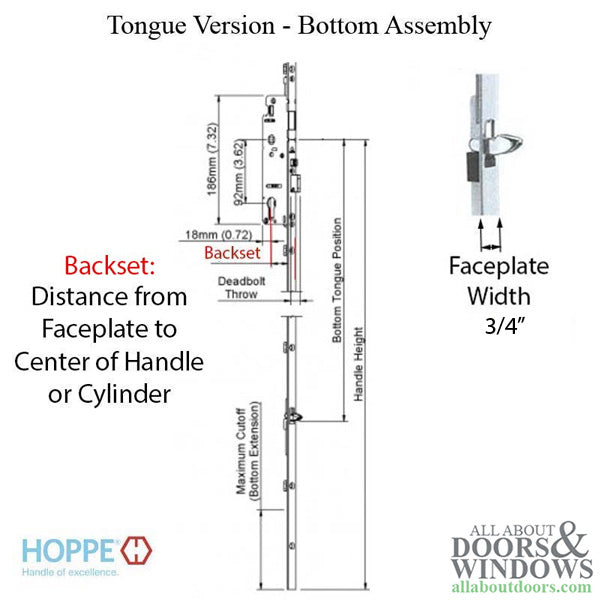

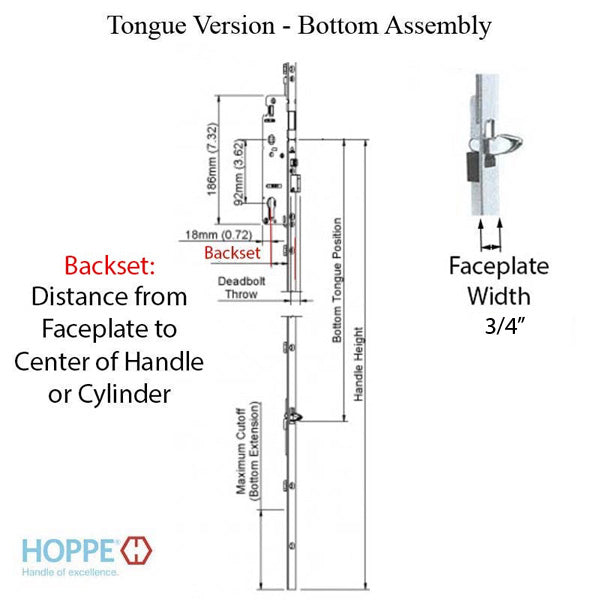

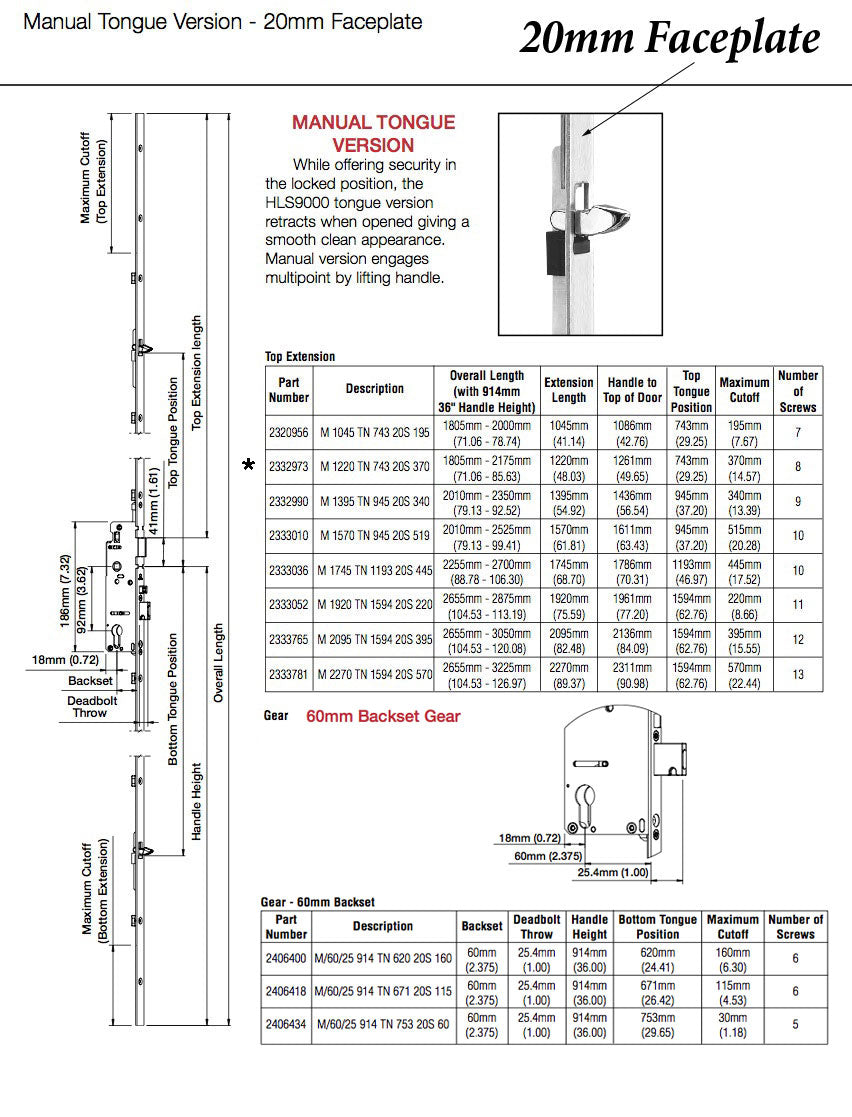

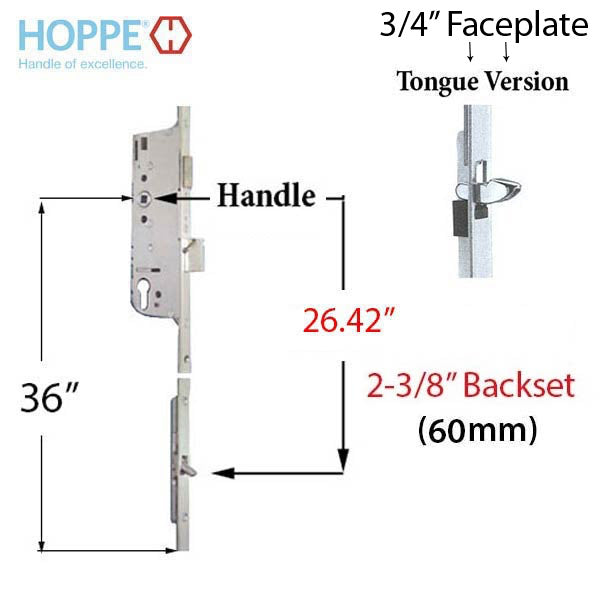

HOPPE HLS 9000 Multipoint Lock with Manual Gear, Tongue Version for Active Door with 20mm Faceplate
Lower Assembly includes lock case with face plate and bottom tongue attached

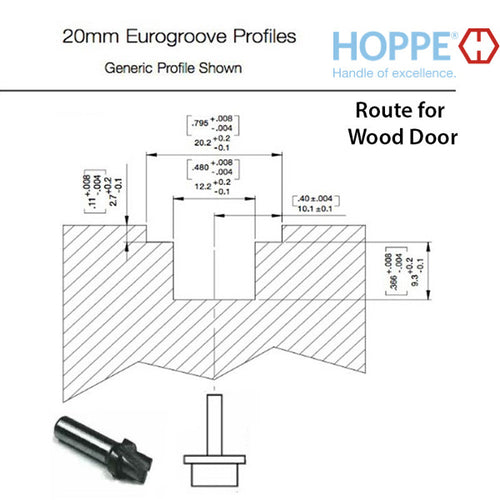

Faceplate Width: 3/4", 0.78" (20mm)

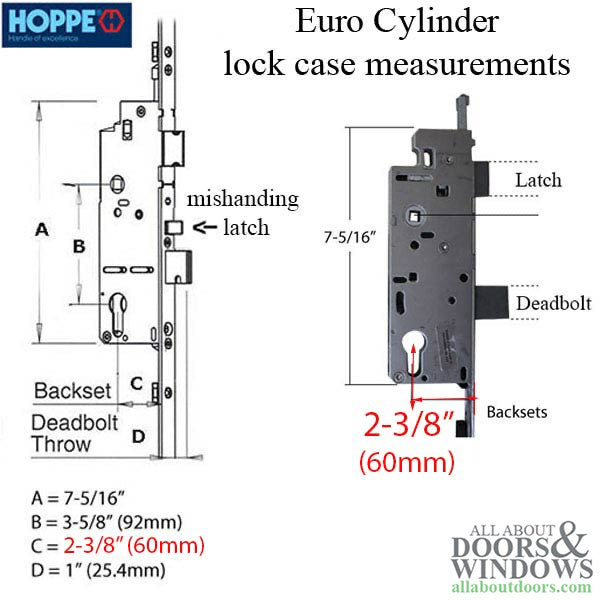

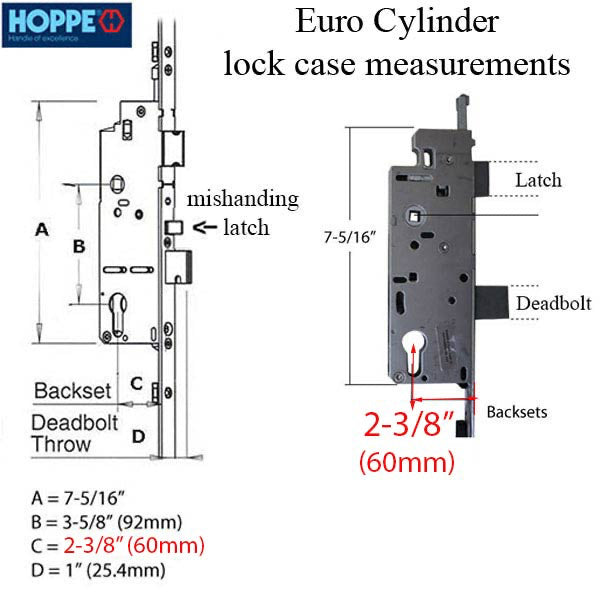

Backset: 2.37" (60mm)
Deadbolt Throw: 1.00" (25.4mm)

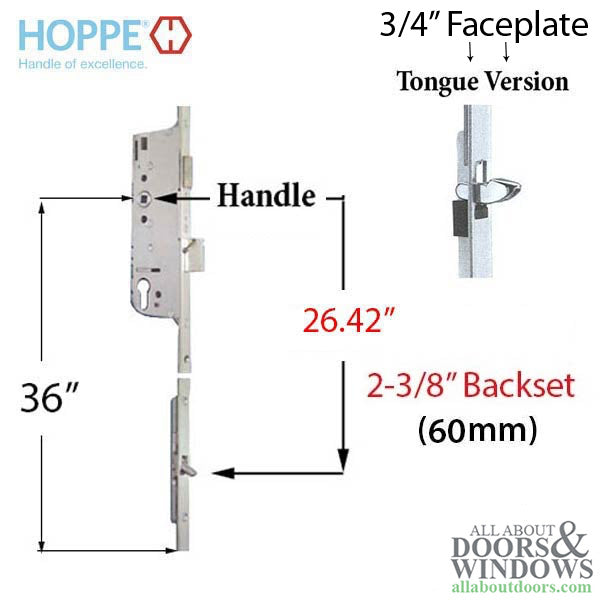

Handle Height: 36" (914mm)

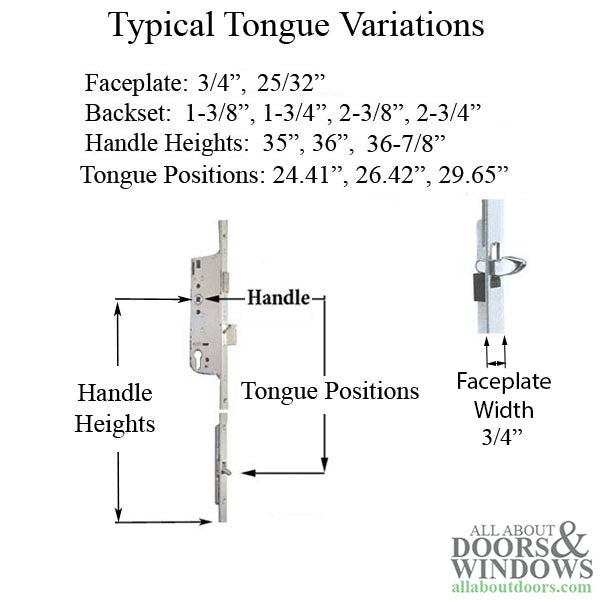

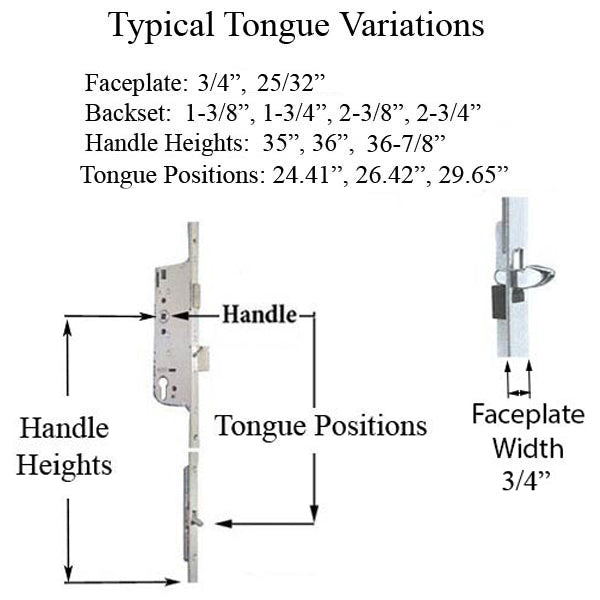

Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screw: 6
Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and then depress lever.
NOTE: The Profile cylinder will need a 3-3.25” length screw for a 70mm backset.
