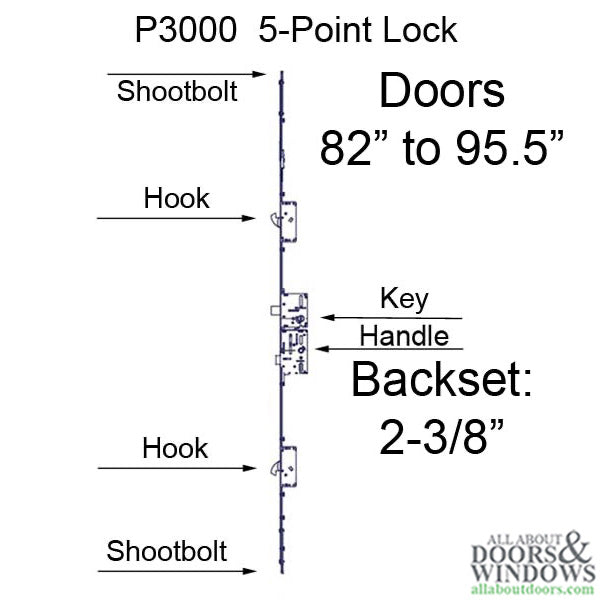

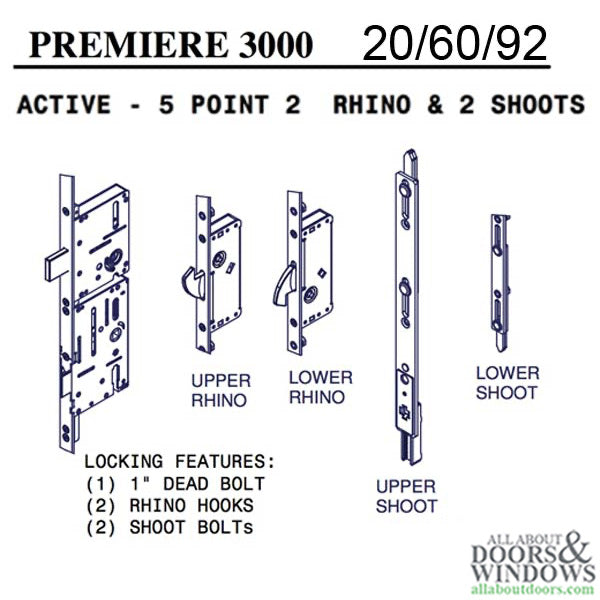

20mm P3000 Active 5-point Rhino hook and Shootbolts, Doors from 82 to 95-1/2 in height.

Cylinder Type: American, Key Above Lever
FaceplateWidth: 25/32 inch (20mm)
Backset: 2-3/8 inch (60mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914.4mm)
Handle PZ- Cylinder spacing: 3-5/8 inch (92mm)
Spindle Hub: 5/16 inch (8mm)

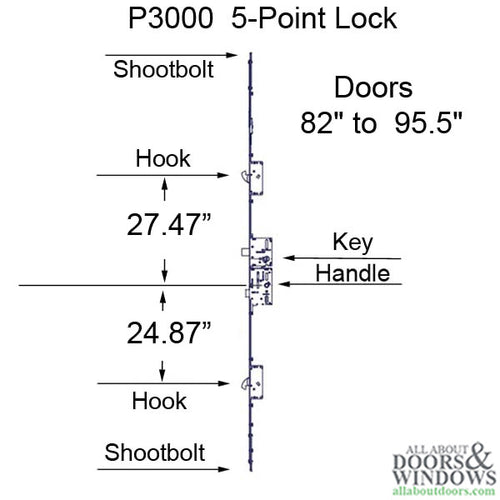

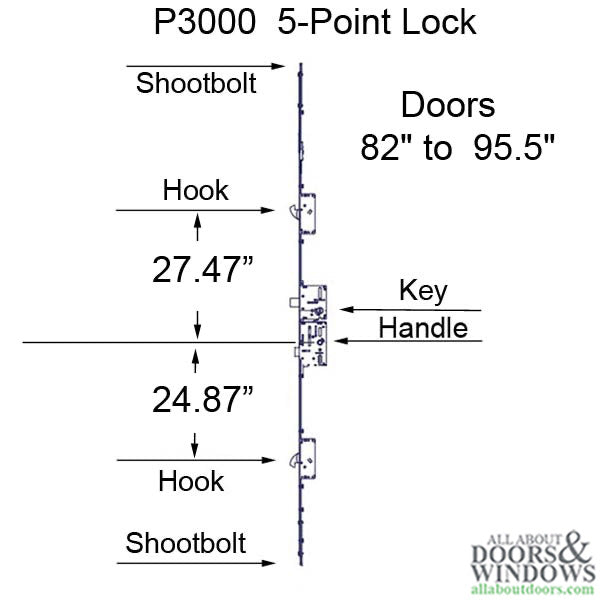

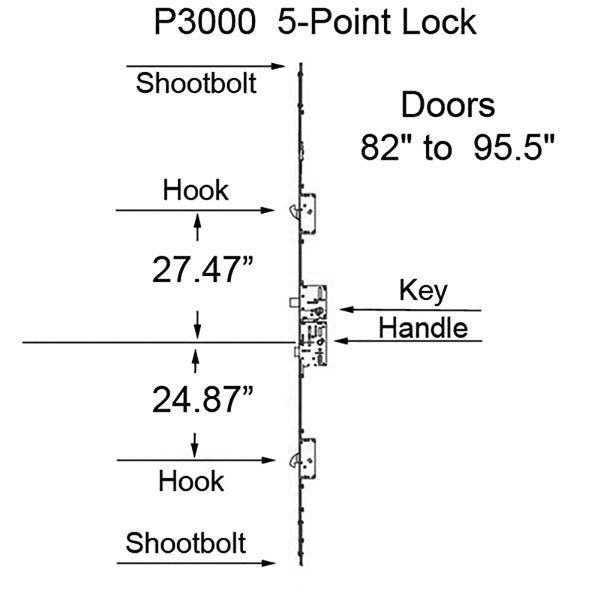

Lower Hook Position: 24.87 inches (631.698mm)
Upper Hook Position: 27.47 inches (697.738mm)
Top Shootbolt Tip: 3467 ( not included with lock )
Lower Assembly Only: 20-32021LA
Upper Assembly Only: 666032018UA
Markings: 32022
Tongue versions are used with Astragals. The Rhino Hook and Shootbolt can be used with or without astragal.

How To Operate P3000 Lock - This is a different design than most Multipoint Locks
1. To Lock the Door: Throw the deadbolt, then lift the handle to engage the Additional Locks
2. To Unlock Door: Retract the deadbolt and push the lever down to open
This lock is Deadbolt activated, use the deadbolt first to lock or unlock the door.

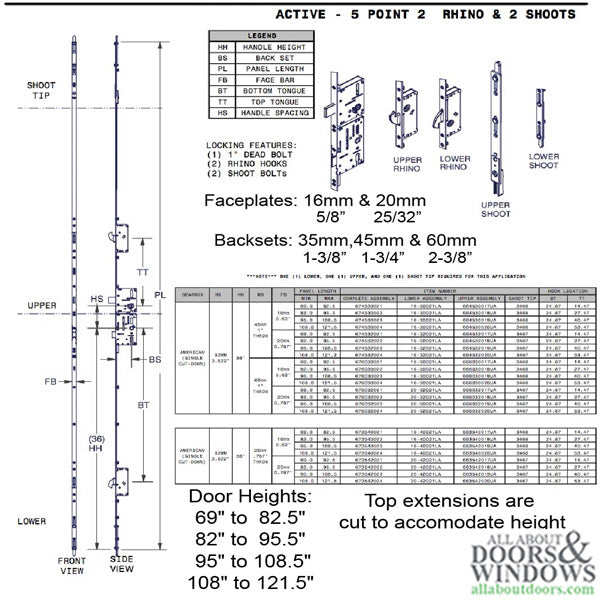

Related P3000 20mm Active Rhino 60/92 Complete Assembly, less top shootbolt tip:
676032021 - 20mm Active 5-point hook, 60/92 69.0 - 82.5"
676032022 - 20mm Active 5-point hook, 60/92 82.0" - 95.5”
676032023 - 20mm Active 5-point hook, 60/92 95.0” - 108.5"
676032024 - 20mm Active 5-point hook, 60/92 108.0 - 121.5"

Related P3000 20mm Passive Rhino 60/92 Complete Assembly, less top shootbolt tip:
656032013 - 20mm Passive 60/92 69.0 - 82.5"
656032014 - 20mm Passive 60/92 82.0" - 95.5”
656032015 - 20mm Passive 60/92 95.0” - 108.5"
656032016 - 20mm Passive 60/92 108.0 - 121.5"

Related P3000 Hardware:
20-3467: Shootbolt Tip
3475-82: Latch and Deadbolt strike plate
