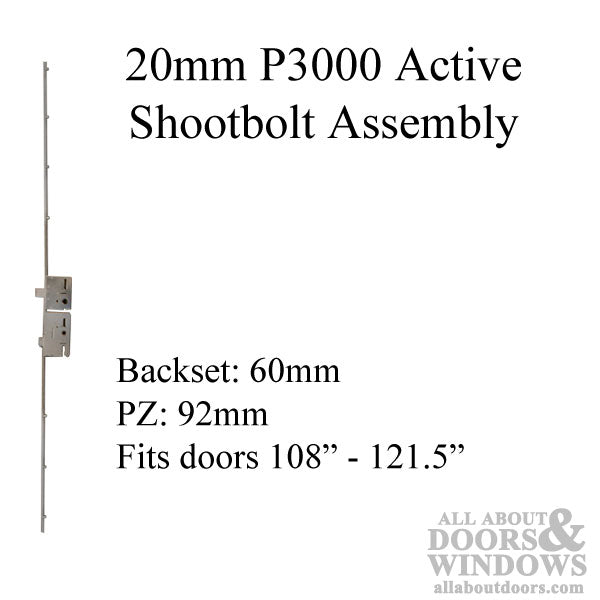

20mm P3000 Active 60/92 Shootbolt Assembly, Doors 108 - 121.5
Part Number: Price: $254.44P3000 60/92 Active 3 point lock, 2 shootbolts, doors 108-121.5"
Backet: 2-3/8" (60mm)
PZ: 3-5/8" (92mm)
Related Hardware:
606032004 - 20mm 60/92 Active 3-point Shootbolt doors 108-121.5"
616032008 - 20mm 60/92 Active 3-point Tongue doors 108-121.5"
656032016 - 20mm 60/92 Passive 3-point doors 108-121.5"
How To Operate P3000 Lock - This is a different design than most Multipoint Locks
1. To Lock Door: Throw the deadbolt, then lift handle to engage the tongues
2. To Unlock Door: Retract deadbolt and push lever down to open
Backet: 2-3/8" (60mm)
PZ: 3-5/8" (92mm)
Related Hardware:
606032004 - 20mm 60/92 Active 3-point Shootbolt doors 108-121.5"
616032008 - 20mm 60/92 Active 3-point Tongue doors 108-121.5"
656032016 - 20mm 60/92 Passive 3-point doors 108-121.5"
How To Operate P3000 Lock - This is a different design than most Multipoint Locks
1. To Lock Door: Throw the deadbolt, then lift handle to engage the tongues
2. To Unlock Door: Retract deadbolt and push lever down to open
