This is the UPPER ASSEMBLY - NOT COMPLETE

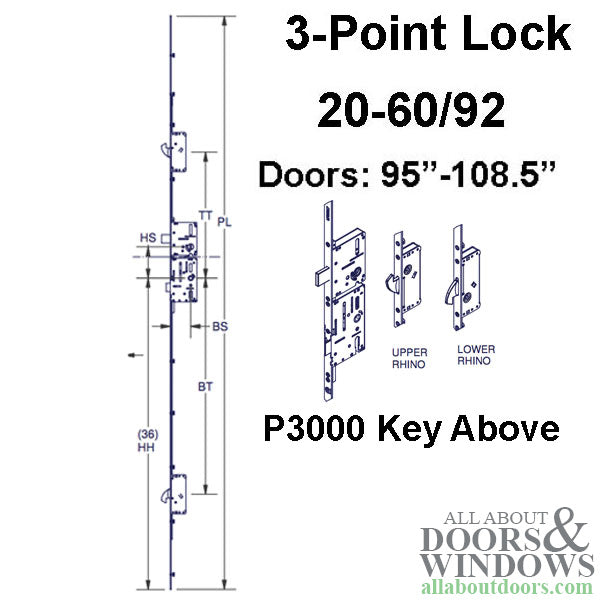

20mm P3000 Active 3-point Rhino Lock 60/92 Hook, 95-108.5"

P3000 Active UPPER ASSEMBLY 60/92

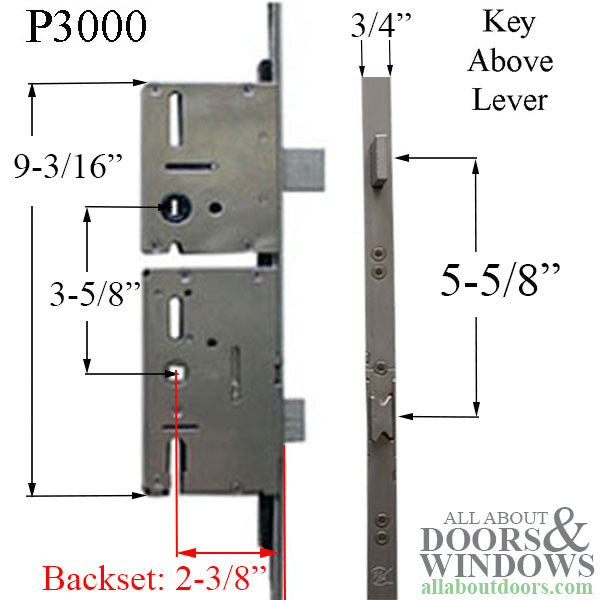

Faceplate Width: 3/4" (20mm)
Backset: 2-3/8" (60mm)
Fits Door Height: 95" - 108.5"

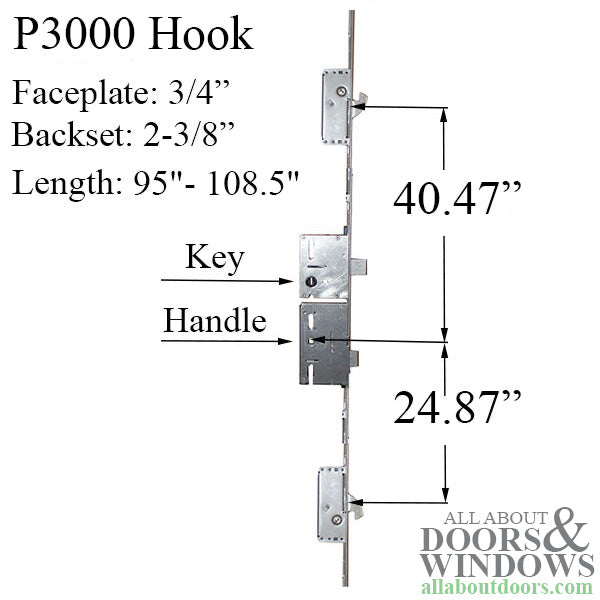

Upper Hook Position: 40.47 inches


How To Operate P3000 Lock - This is a different design than most Multipoint Locks
1. To Lock Door: Throw the deadbolt, then lift handle to engage the Auxiliary locks
2. To Unlock Door: Retract deadbolt and push lever down to open
