DISCONTINUED, NOT AVAILABLE - SEE OPTIONS

The Winkhaus One Motion Lock (OML) is NOT available.

We offer a Replacement for the 3 hook Winkhaus OML 20mm face, 45mm backset, 92"-93" tall door. This Kit includes the lower gear, middle extension, upper hook extension, a new strike plate and installation screws.

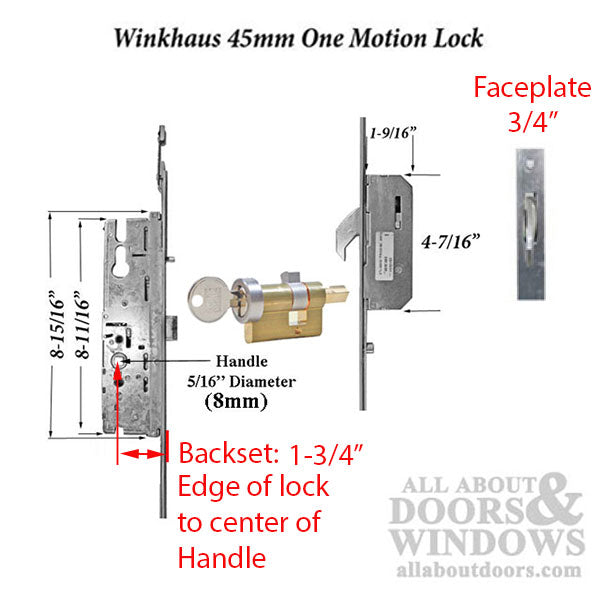

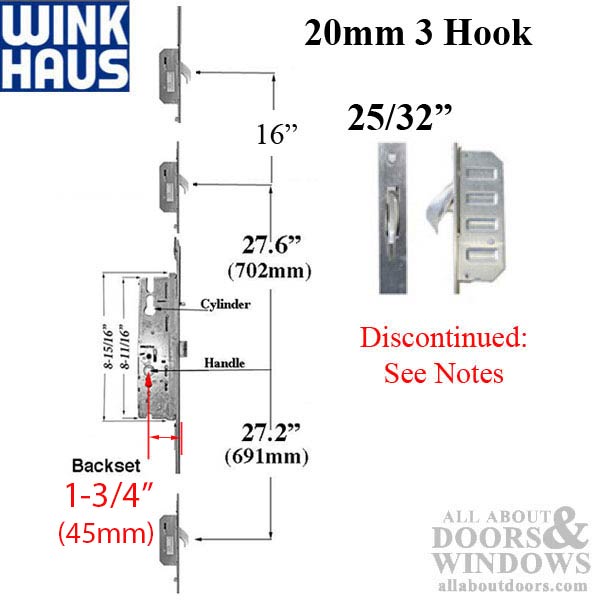

Winkhaus One Motion Lock (OML) 3 hook Door

Faceplate Width: 25/32 inch (20mm)

Lock Backset: 1-3/4 inch (45mm)

Handle PZ: 3-5/8 inch (92mm)

Handle Height: 36 inches

Lower Hook Position: 27-1/4 inches ( 691mm)

Middle Hook Position: 27-5/8 inches (702mm)

Top Hook Position: 43-1/2 inches (1105mm)

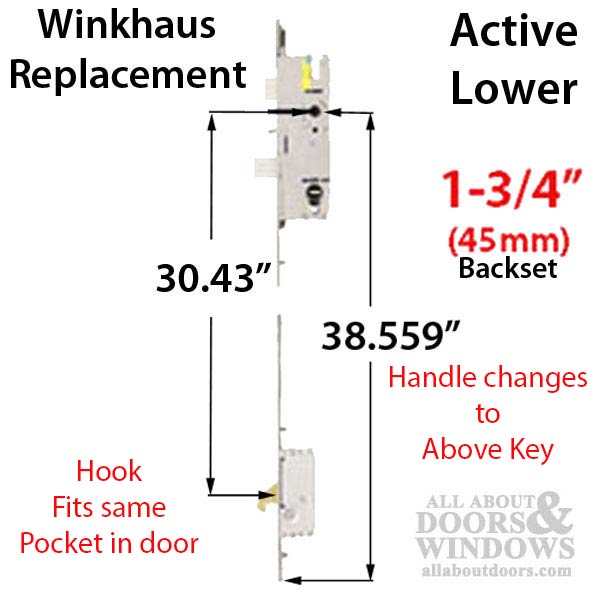

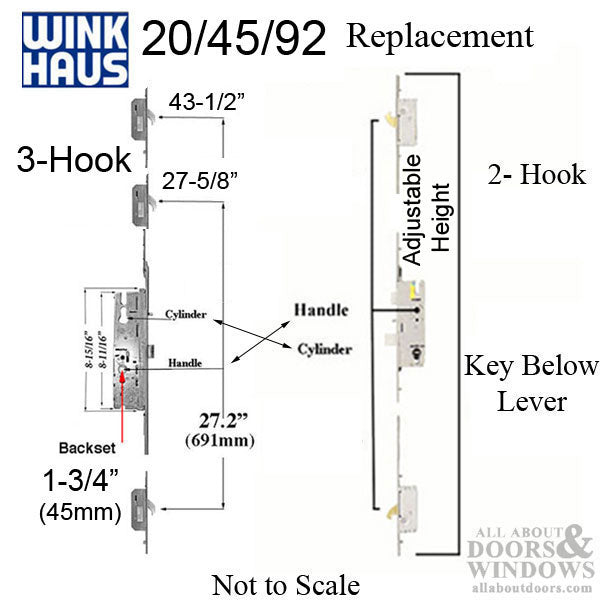

Replacement: 20/45/92 with Adjustable top hook  - 2 hook door

Faceplate Width: 25/32 inch (20mm)

Lock Backset: 1-3/4 inch (45mm)

Handle PZ: 3-5/8 inch (92mm)

New Handle Height: 38.559 inches

Door Thickness: 1-3/4 inch (45mm)

MP Lock Position: Centered in door

Bottom Hook Position: 30.43 inches from NEW handle height of 38.559

Top Hook Position: Adjustable, 30-43 inches above new handle height

Note 1: IF The faceplate on the top hook does not go all the way to the top of the door panel. Fill in with material from old lock

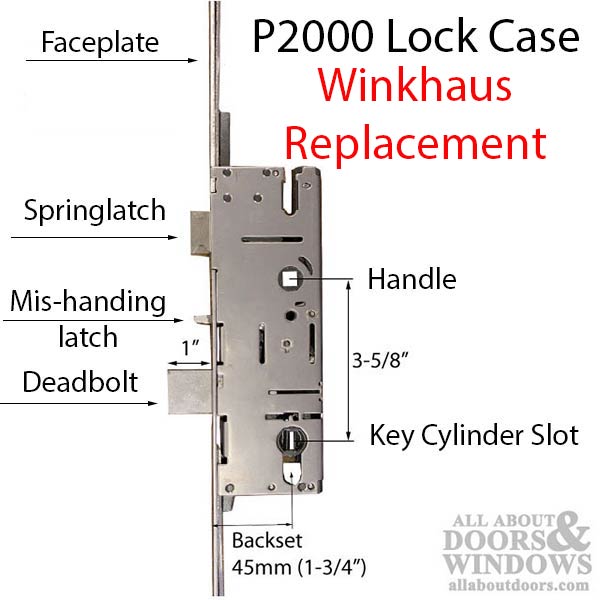

Note 2:  Some handle sets may be reused, but will need new spindle and have to be inverted. replacement lock has to be converted to a Euro version. Contact office for details.

Note 3: If replacing handle set trim, We suggest using a larger handle set like our 2" x 12"

Winkhaus 3-hook Replacement: 499064509-Kit
