The Winkhaus One Motion Lock (OML) is NOT available, We have replacement options listed below.

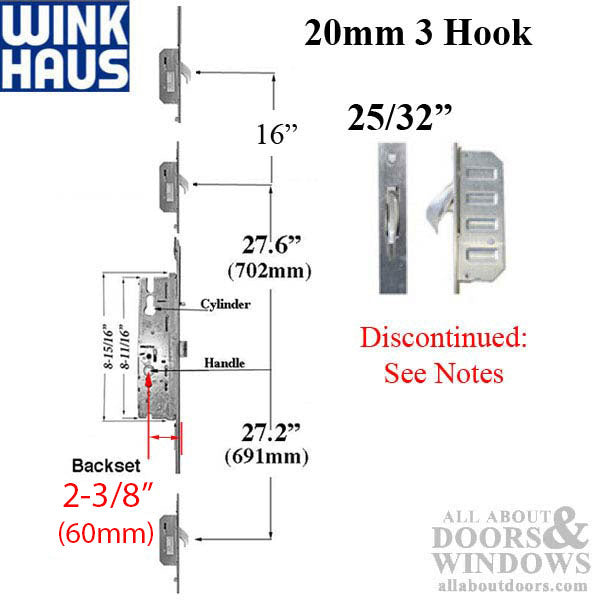

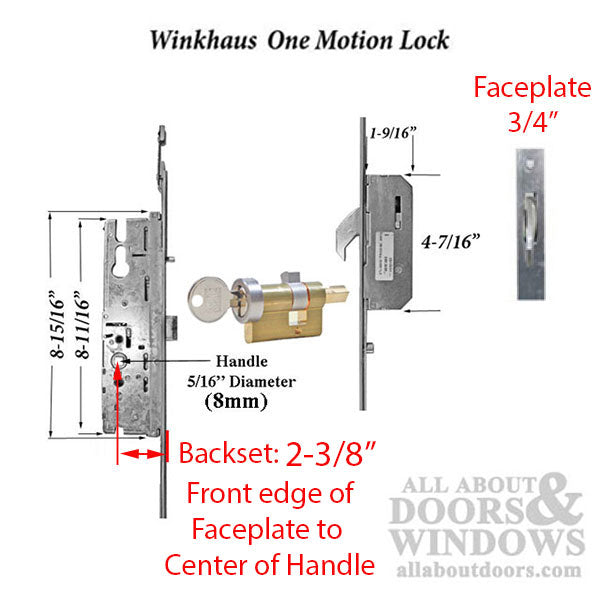

Winkhaus One Motion Lock (OML) with 3 hooks, Key Above, 8' Door

Faceplate width: 25/32 inch (20mm)

Lock Backset: 2-3/8 inch (60mm)

Handle PZ: 3-5/8 inch (92mm)

Handle Height: 36 inches (914mm)

Lower Hook Position: 27-1/4 inches ( 691mm)  from Handle

Middle Hook Position: 27-5/8 inches (702mm)  from Handle

Top Hook Position: 43-1/2 inches (1105mm)  from Handle

Door Height: 82 - 101 inches

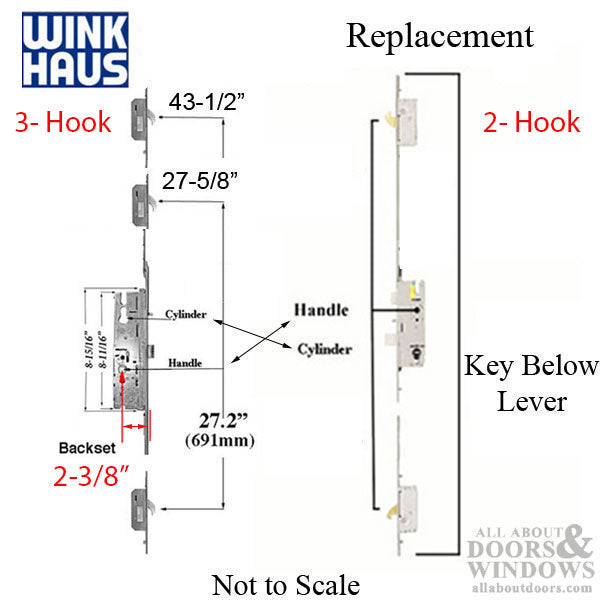

Winkhaus Replacement: 2 hooks, Key Below

New Handle Height: 38.559 inches (979mm)

Door Thickness: 1-3/4 inch (45mm)

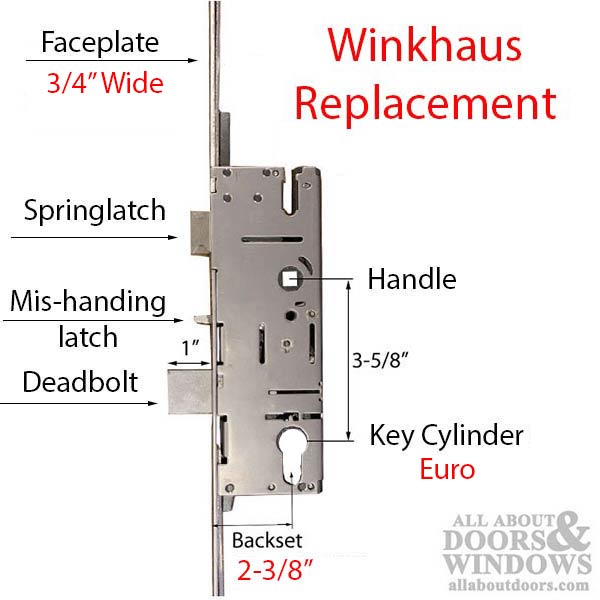

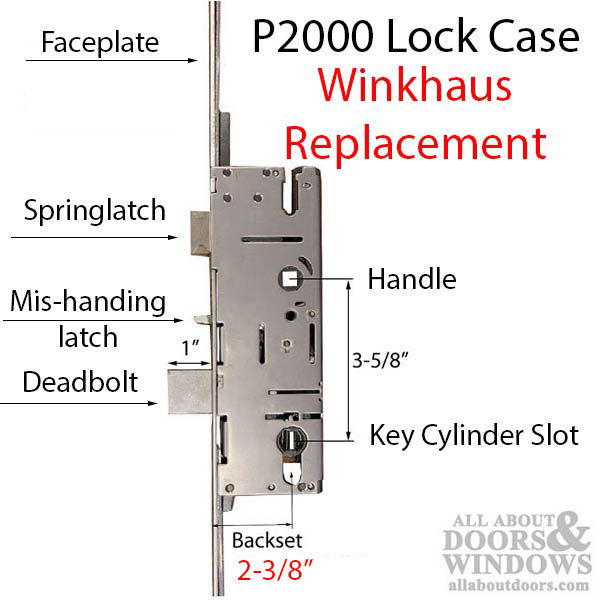

Replacement Kit  #499066009-Kit (American Version) SINGLE DOOR

This is for a single door. It will not work as part of a double french door.

Note 1:  If you want to reuse the existing handles, we will need to convert The American version to a Euro Version and you will need a new solid spindle. Most handle sets may be reused, but will need to be inverted, Key below, lever above.

Note 2: Single doors require a new Latch and Deadbolt Strike plate

Standard Replacement is Stainless Steel

If you require a different finish for the strike plate, please let us know, and we’ll be happy to assist with available options.
