20mm Winkhaus OML Double Door 45/92 Hook version, 76-1/4" Door

Part Number:499114522
Please note, this product has been discontinued.

This Winkhaus Multipoint lock has been discontinued - Replacement Options Available Below

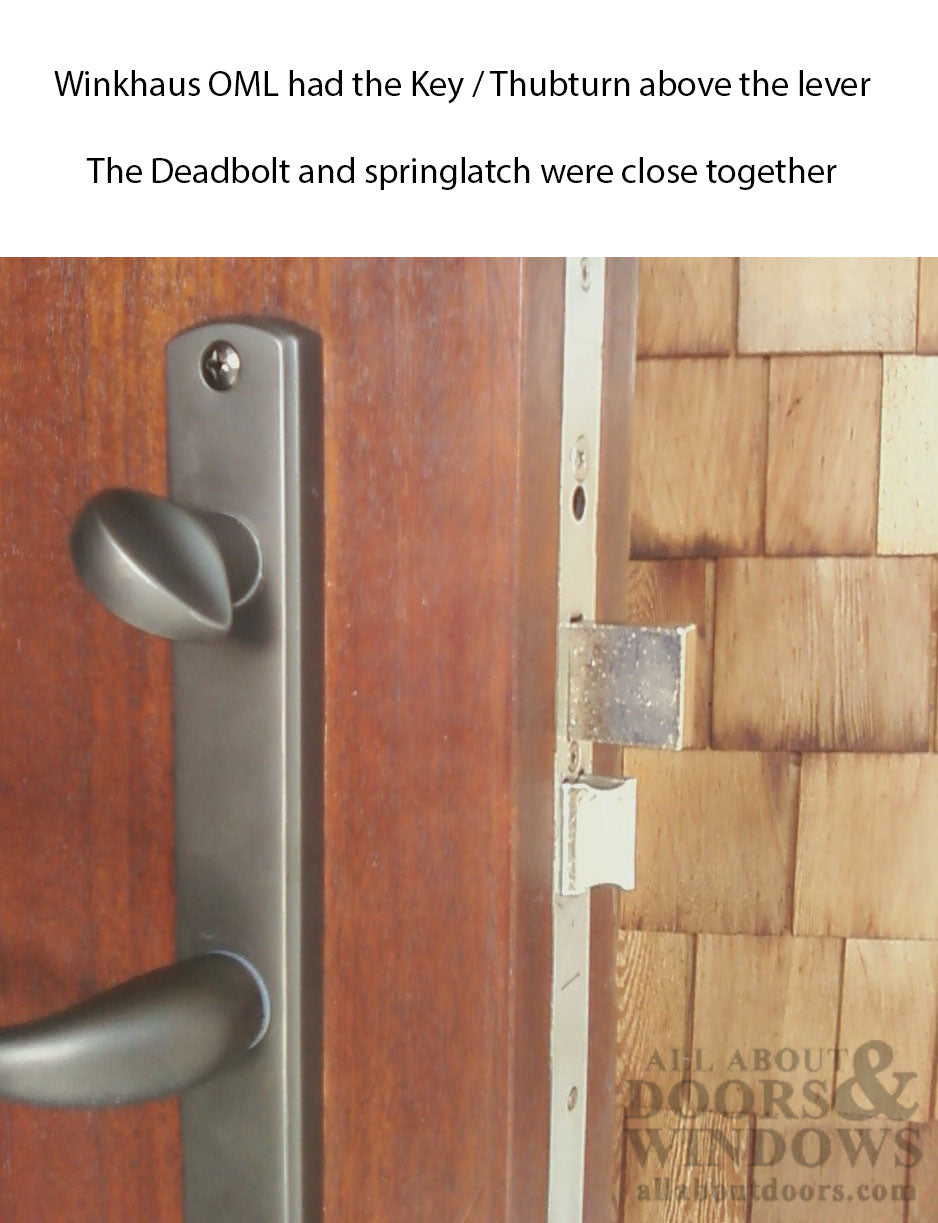

Winkhaus One Motion Lock (OML) Key Above the lever with automatic retraction of hooks and deadbolt when inside handle is depressed.

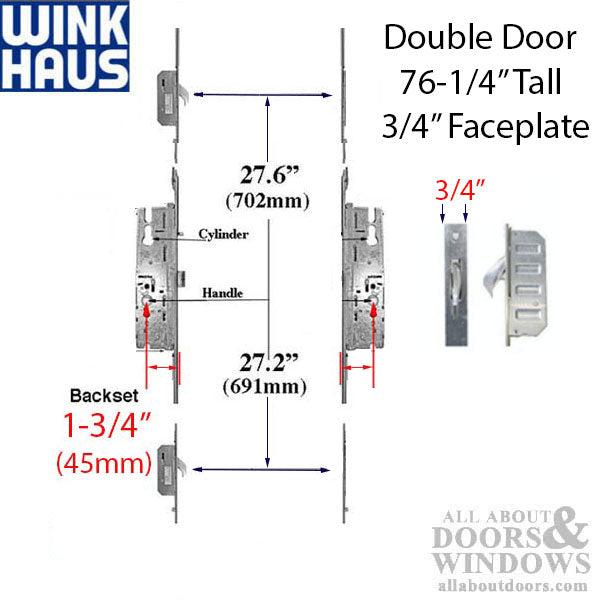

Specifications:  This is a double door, Active & Passive, both panels open

Key Position: Key Above Lever

Door Companies: Manco, Milgard Fiberglass Door, and others

Locking Devices: Hook type Lock (7/8 inch Projection)

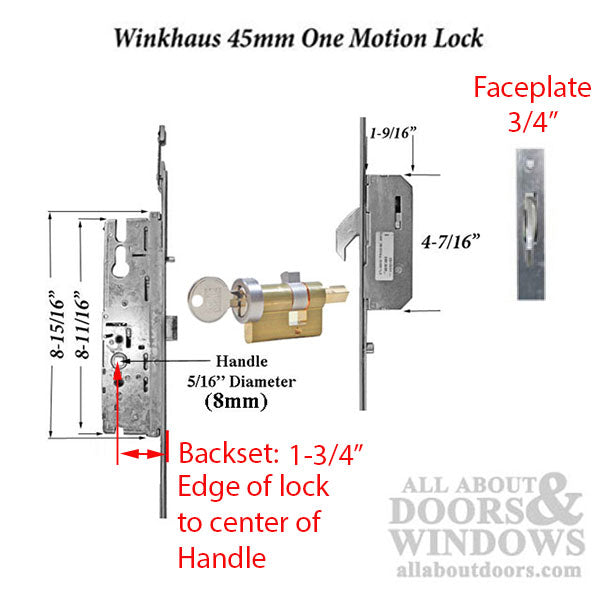

Faceplate Width: 3/4 inch (20 mm)

Faceplate Length: 76-1/4 inch ( 1,936.75mm)  same as door panel - No Sweep

Handle Height: 36 inch  (914mm)

Handle/Cylinder PZ: 3-5/8 inches ( 92 mm)

Backset: 1-3/4 inch ( 45 mm)

Material: Stainless Steel

Overall Door Panel Height: 76-1/4  inch tall

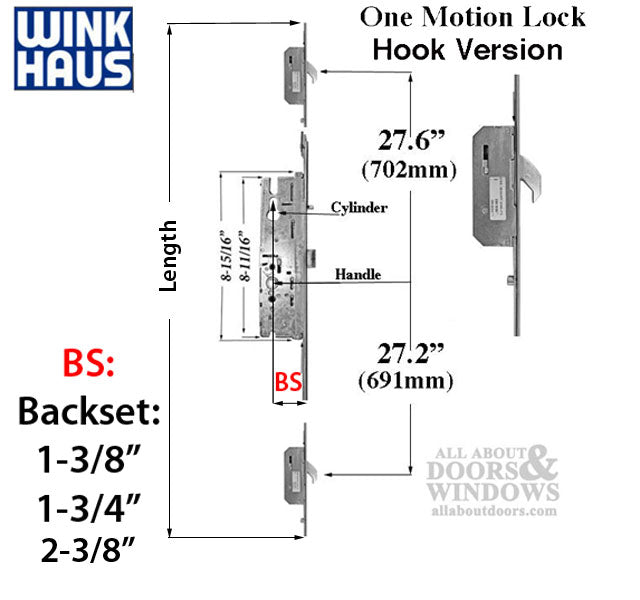

Top Hook position: 27.6 inches  (702mm)

Bottom Hook Position: 27.2 inches (691mm)



Replacement Kit #499064522  Contact office for ordering
