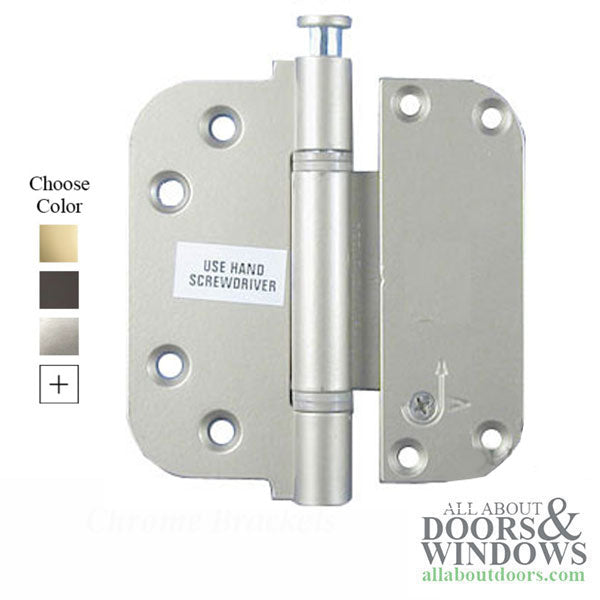

The Columbus 2D Hinge is Discontinued by Hoppe and limited to existing inventory, May have minor blemishes. Can be replaced with HOPPE Current Style Aluminum Adjustable Guide (H) and Set (V) Hinges

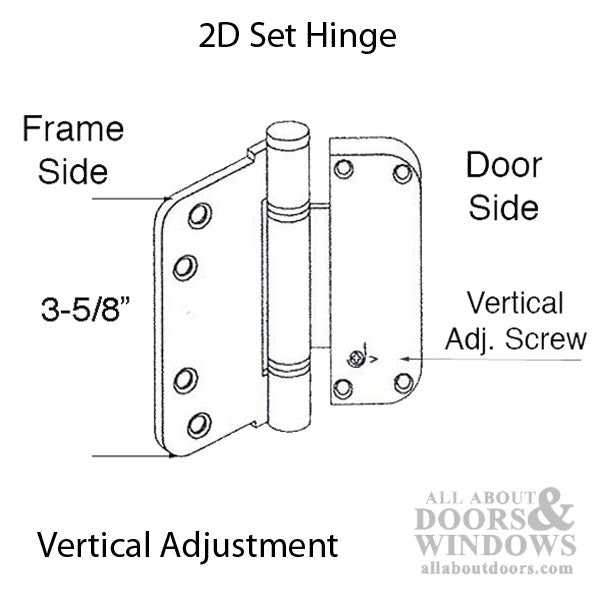

Hinge Type: SET Hinge (V), Adjustable for Verticall movement

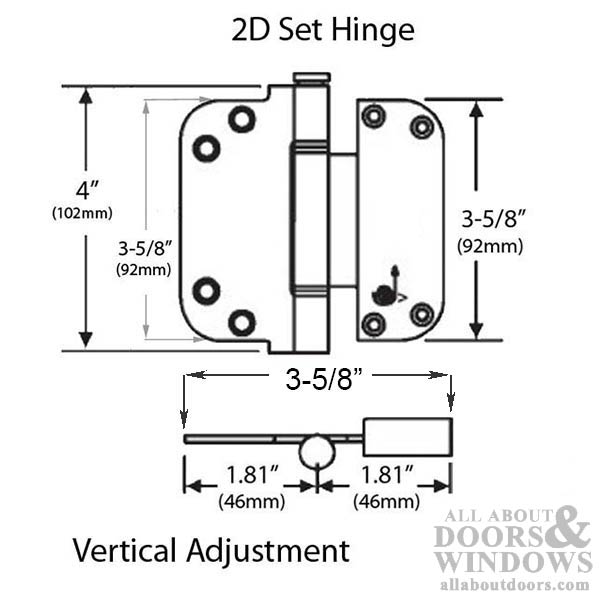

Hinge Size: 3-5/8 x 3-5/8 inch (92x92mm)
Material: Steel
Color: Powder Coat Gold
Sold Each, Priced Each - NO Screws
Additional 2D Hinge Info:
This hinge was sold by HOPPE HTL and used by Fuhr, Pozzi, Caradco, Hurd, Jeldwen, Windsor, Crestline, Weather Shield and other door companies
Typically found on doors using the Fuhr or Hoppe brand multipoint lock.
The old style 2D hinge fit a route in the door panel and frame of 3-5/8 inch (92mm)
Hinge will work on Outswing Doors, but does not have NRP set screw to prevent pin removal.
Adjustable Hinge Specifications:

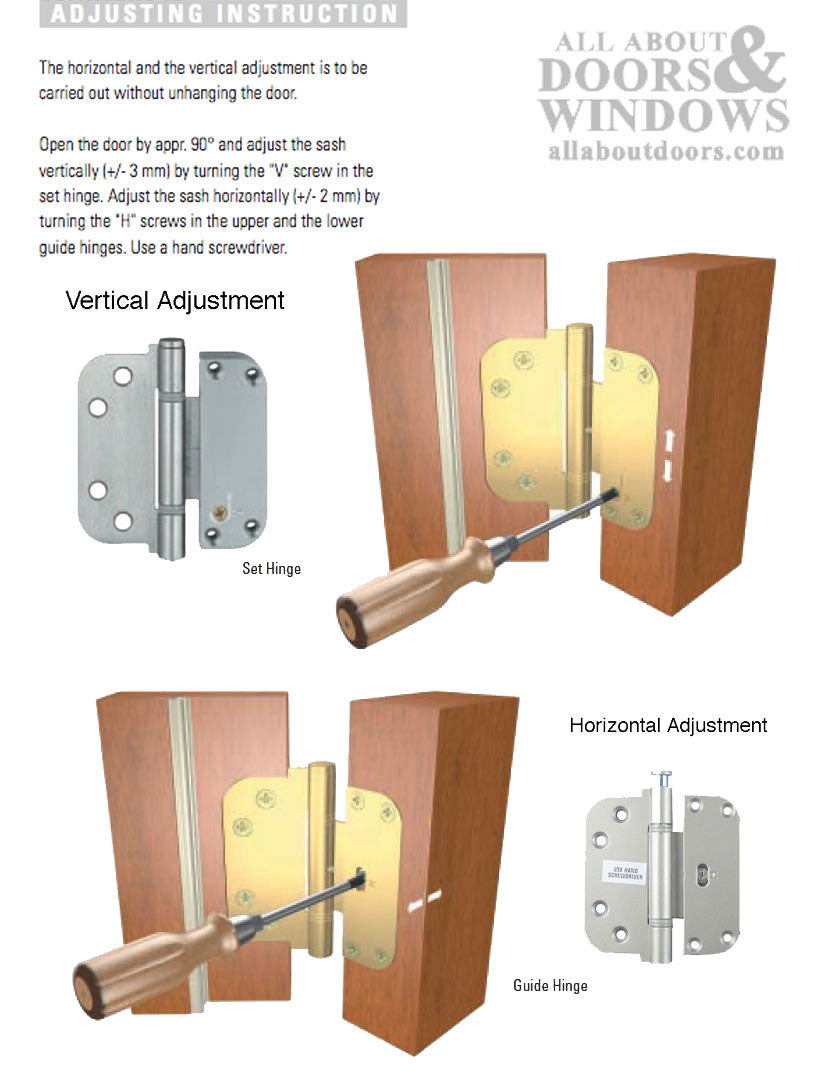

The Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment.
They are used with the SET HINGE (V) which is installed at the center for vertical adjustment
Four hinge doors have an additional Set or Guide Hinge depending on weight.
Jamb Screws - #9 x 3/4 Phillips Flathead;
Panel Screws - #8 x 1-1/2 Phillips Flathead.
Handing: Non-handed, Reversible, Removable Pin for Left or Right hand doors
NOTE on Color:
Antique Brass has Brass highlights on knuckle See Additional Images #5
Stainless Steel is 1/2 stainless on the frame leaf and knuckle (barrel), the Door side is Painted Silver See Additional Images #6
Related Columbus 2D Style Adjustable Hinges - Limited to existing Inventory:
369900 - 2D Horizontal Guide Hinge (H)
369901 - 2D Vertical Set Hinge (V)
369902 - 2D Horizontal Guide Hinge (H) NRP ( Non-Removable Pin for Outswing doors )
369903 - 2D Vertical Set Hinge (V) NRP
369904 - 2D Horizontal Guide & Vertical Set Hinge (H-V)
369905 - 2D Horizontal Guide & Vertical Set Hinge (H-V) NRP
Other Replacement Options: Thicker Hinge
Option 1. Hoppe - We suggest replacing with the Hoppe Aluminum Adjustable Guide and Set Hinge.
If replacing with Hoppe hinges, you need to replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)
Option 2. Amesbury - makes a Steel all in one Adjustable Hinge, with Vertical and Horizontal adjustment.
If replacing with Amesbury hinges, you need to replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)
NOTE: Columbus 2D Hinge was thinner than other hinges - Can be Replaced with Hoppe or Amesbury
If they need to have 100% precision, they can route, shave or sand the door 1 mm on the bottom side of the route
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Helvetica;">This Hinge is Discontinued and limited to existing inventory - Can be replaced with HOPPE or Amesbury Adjustable Hinges - See options Below </p><p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Helvetica;"><br></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Unfortunately, the Columbus hinge has been discontinued by the manufacture in favor of the Ultimate 2D hinge. The Ultimate is stronger in comparison to the Columbus and is the same shape. Aside from the strength, the only difference between the two is the Ultimate is 1 mm (1/32") thicker than the COLUMBUS hinge. The customer will be able to compensate for this by adjusting the hinge to accommodate the thickness. If they need to have 100% precision, they can route, shave or sand the door 1 mm on the bottom side of the route.<span style="line-height: normal; font-family: Helvetica;"> </span></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Helvetica; min-height: 14px;"><br></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Helvetica;"><b>Additional 2D Hinge Info:</b></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Helvetica;">This hinge was sold by HOPPE HTL and used by Malta, Pozzi, Caradco, Hurd, Jeldwen, Windsor, Crestline and others</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Helvetica;">Typically found on doors using the Fuhr brand multipoint lock. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">The old style 2D hinge fit a route in the door panel and frame of 3-5/8 inch (92mm)</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Hinge will work on Outswing Doors, but does not have NRP set screw to prevent pin removal.</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial; min-height: 14px;"><br></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;"><b>2D Adjustable Hinge Specifications: </b></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Hinge Size: 3-5/8 x 3-5/8 inch (92x92mm)</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Hinge Type: SET HINGE (V), Adjustable for Vertical movement </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">The Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">They are used with the SET HINGE (V) which is installed at the center for vertical adjustment </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Four hinge doors have an additional Set or Guide Hinge depending on weight.</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Jamb Screws - #9 x 3/4 Phillips Flathead; </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Panel Screws - #8 x 1-1/2 Phillips Flathead. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Handing: Non-handed, Reversible, Removable Pin for Left or Right hand doors</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Color / Finish: Antique Brass / Brown with brassy Highlights</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial; min-height: 14px;"><br></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Sold Each, Priced Each - NO Screws</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial; min-height: 14px;"><br></p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">NOTE: If you need a complete set of 3 or 4 hinges replaced, we recommend using the current style - See HOPPE hinges</p>
