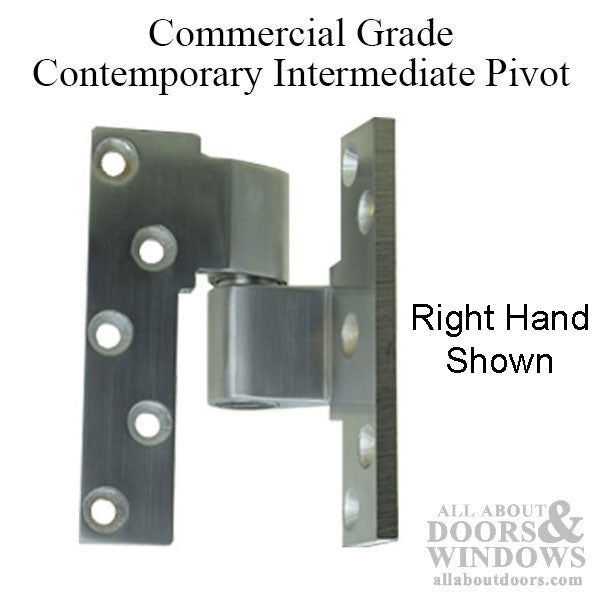

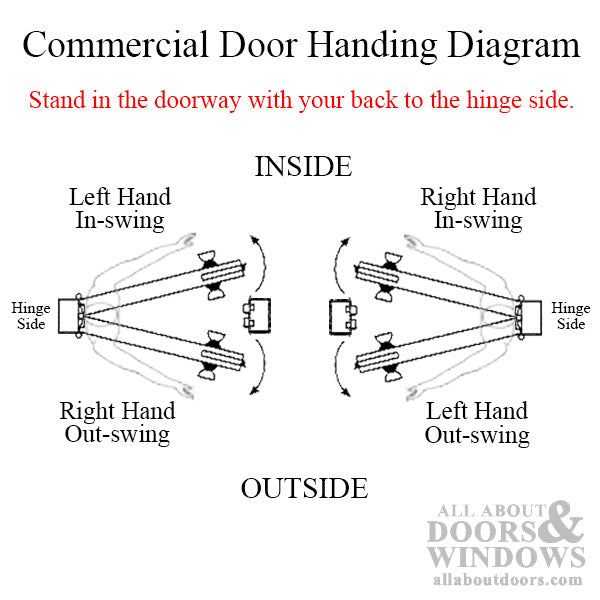

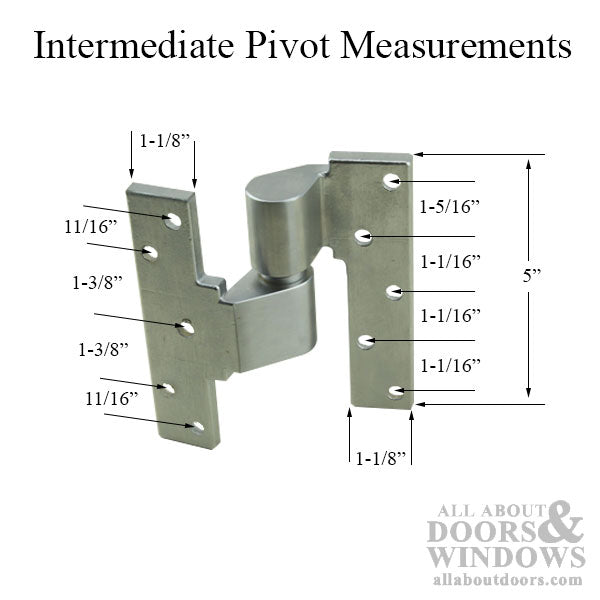

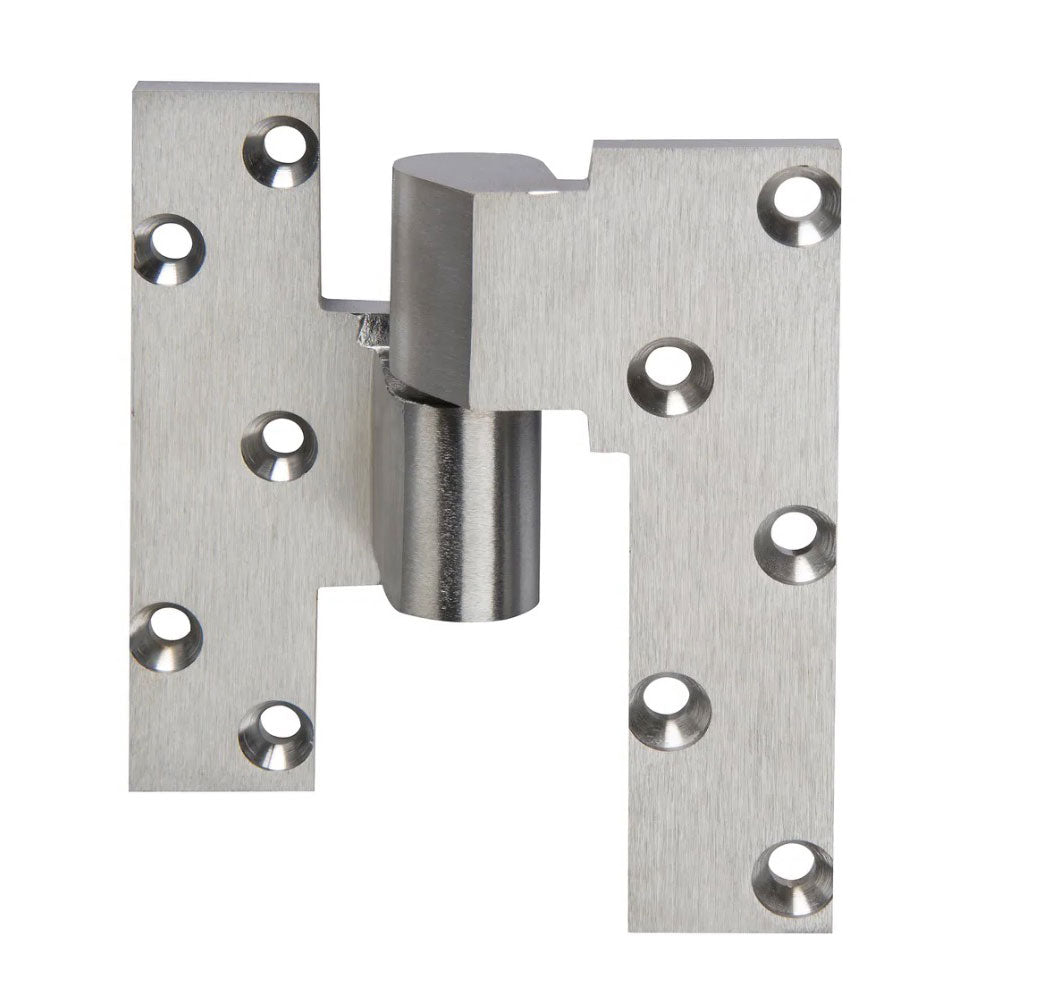

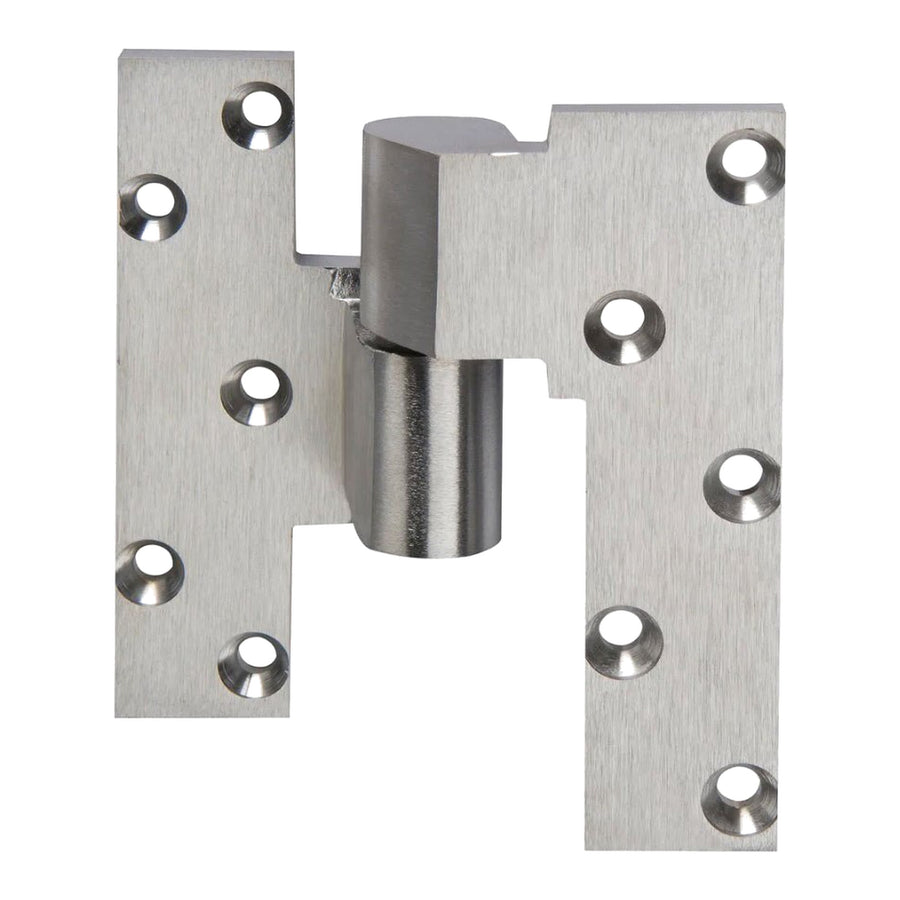

Rixson ML19 intermediate, standard-duty full-mortise pivot designed for full surface, flush door, and frame Replaces Dor-O-Matic, Glynn-Johnson, Kaba ilco and other with same style and size Intermediate Pivot hinge.  Application: Heavy or high-traffic doors Mounting Leg Length: 5" (127mm) Mounting Leg Width: 1" (29mm) Handed: Yes, As shown Color / Finish: 626 US26D Satin Plated Chrome Screws: Yes, Machine and Wood screws included Sold: Each Application & Function Lead-Lined & High-Traffic: This pivot is specifically designed for radiation-shielded doors (commonly found in hospital X-ray rooms, imaging centers, and oncology departments). Because lead adds massive weight, standard hinges would sag; this pivot is heavily load-bearing to prevent that. Straddle Layout: The unique screw hole pattern is engineered to "straddle" the internal lead lining sheet in the core of the door. This ensures the screws securely anchor into the wood or metal structure without piercing or compromising the protective lead shield. Door Alignment: Intermediate pivots are not meant to carry the vertical load on their own (that is the job of the bottom pivot or floor closer). Instead, they maintain the door's lateral alignment, preventing the heavy door from bowing or pulling away from the frame at the center. Technical Specifications Sizing & Spacing Requirements: Door Height Guidelines: * Up to 60" (1524mm): No intermediate pivot required. 60" to 90" (1524mm–2286mm): 1 intermediate pivot required. Each additional 30" (762mm): Add 1 more intermediate pivot. Bevel Requirement: Door edges must have a standard commercial bevel of 1/8" in 2" (approximately 3.5 ) to clear the frame during operation. Fire Rating Codes: Standard 20-Minute: Add suffix “–20” to the part number. Full Fire Door Assemblies: Specify "FML19" (validated for 1-3/4" doors only). Physical Properties: Handed: Must be ordered specifically as Left-Hand (LH) or Right-Hand (RH). Base Material: Non-ferrous (typically brass or bronze), making it naturally corrosion-resistant. Door Thickness Flexibility: Can be custom-machined to fit heavy doors ranging from 1-3/4" up to 3" thick.
