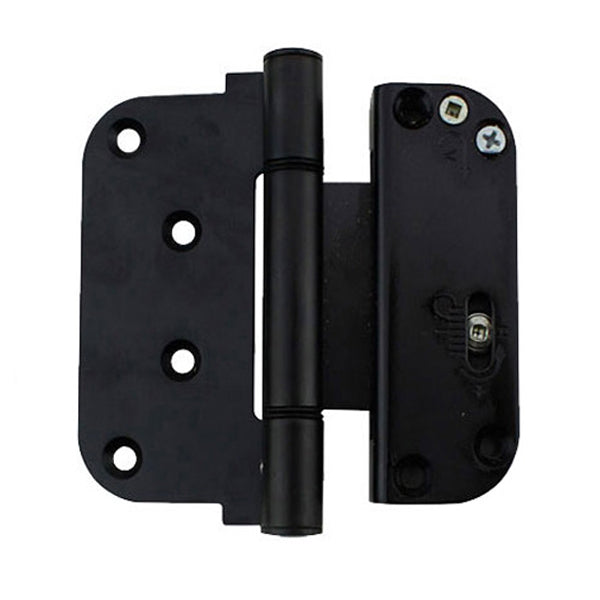

3-5/8 x 4 Adjustable Hinge, All in one (V-H) NRP Door, Steel Base
Use the arrows or swipe left to view all images for this product
3-5/8 x 4 Adjustable Hinge, All in one (V-H) NRP Door, Steel Base
Part Number: $19.18 to $39.87Marvin Adjustable Hinge, Non-Removable Pin for Outswing or Inswing Doors
Hinge used by Integrity by Marvin, Jeldwen, and others
Specifications:

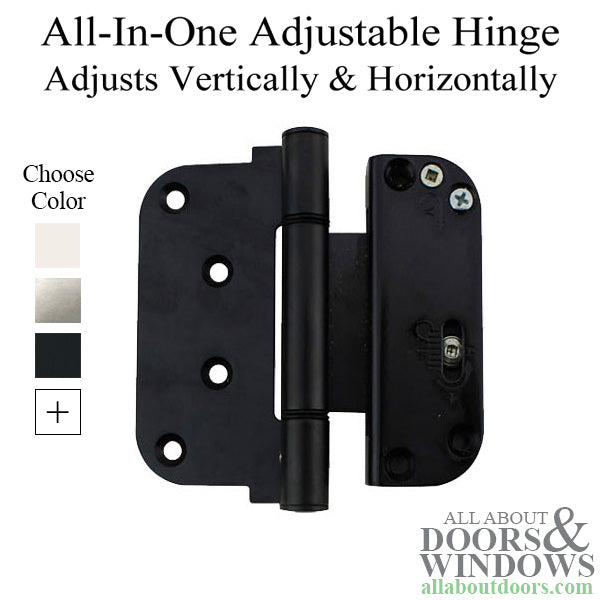

- Adjustment: All in one, Hinge contains both Vertical and Horizontal adjustments
- Application: Wood, Vinyl, Metal, and Fiberglass doors
- Handed: No, fits left or right-hand doors
- Mortise Height: 3-5/8 Inches
- Overall Height: 4 Inches
- Width: 4 Inches
- Corners: 5/8 Inch Radius

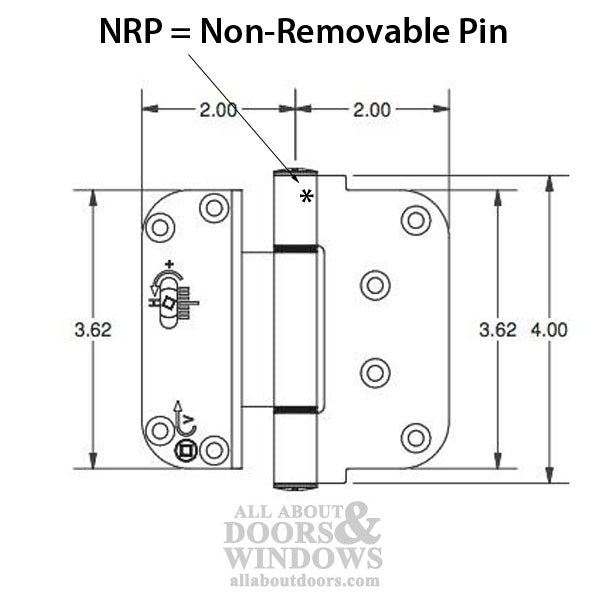

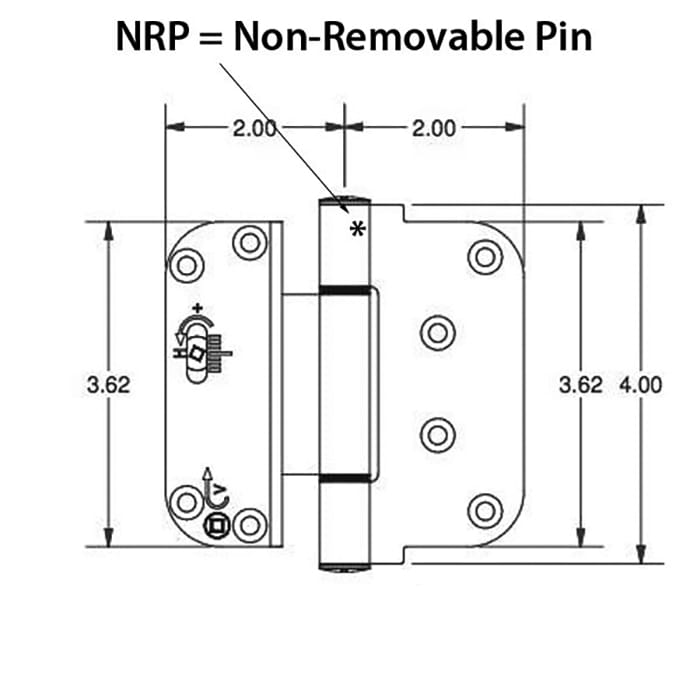

- Hinge Type: NRP, Non-Removable Pin
- Material: Steel Base, Also Available in Brass Base for Coastal Areas

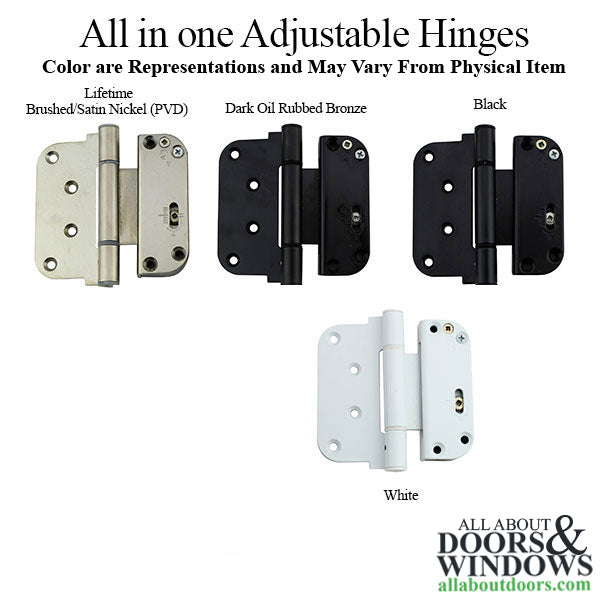

- Available Color(s): Black, White, Dark Oil Rubbed Bronze and Lifetime Brushed/Satin Nickel (PVD)
- SCREWS NOT INCLUDED.
Hinge fits a 3-5/8 inches mortise in the door panel and the Jamb. Will replace other hinges with the same mortise prep.

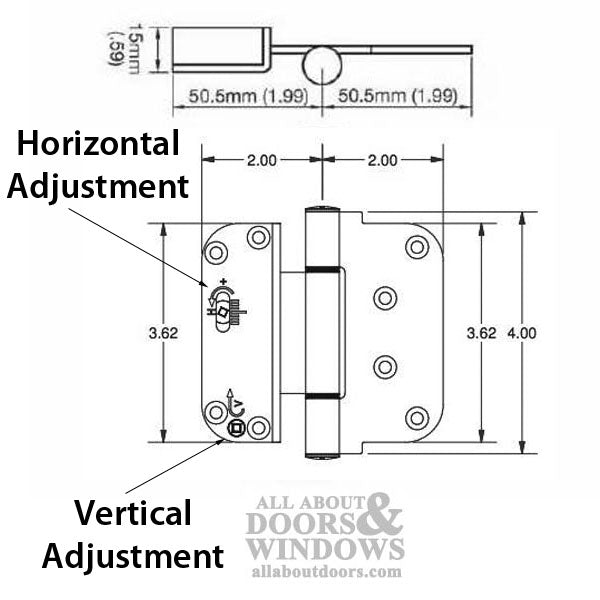

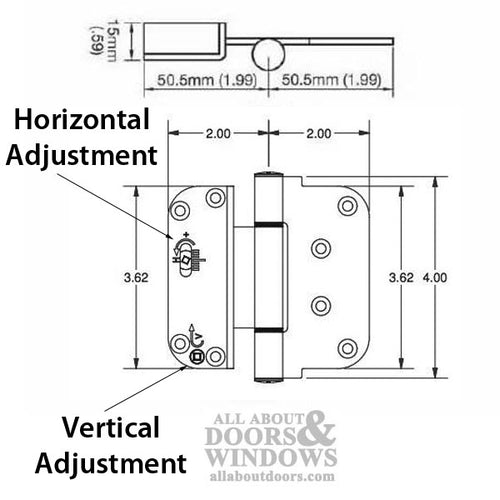

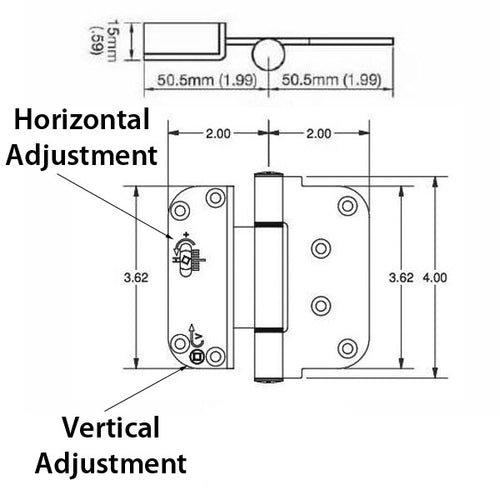

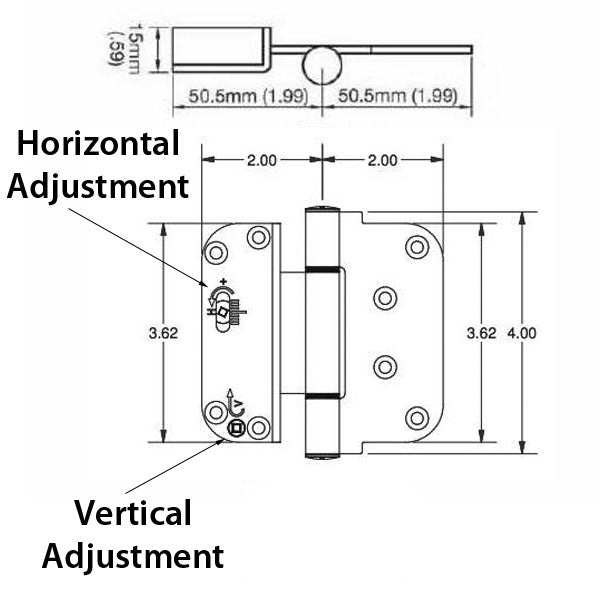

ADJUSTMENT INFO:
Horizontal and vertical adjustment on this hinge means that it adjusts to change the reveal (gap between the door frame and the edge of the door). The horizontal adjustment range is plus or minus 0.15 inch (+/- 0.15"). The vertical adjustment range is plus or minus 0.20 inch (+/- 0.20"). There are markings on the hinge cover for a visual indication of the vertical adjustment position.
Vertical Adjustment (V):
- Use a pry bar to reduce the downward weight of door panel, then adjust each hinge.
- Turn drive to raise or lower the door panel. Adjust each hinge 1/16" at a time until desired panel adjustment is achieved. Spread the door weight evenly between all 3 or 4 hinges.
Horizontal Adjustment (H):
Turn drive to increase of decrease the reveal of the door.
Priced and sold each.
Adjustable Hinge, Non-Removable Pin for Outswing or Inswing doors
Hinge used by Integrity by Marvin, Jeldwen and others
Adjustment: All in one, Hinge contains both Vertical and Horizontal adjustment
Application: Wood, Vinyl, Metal and Fiberglass doors
Handed: No, fits left or right hand doors
Mortise Height: 3-5/8"
Overall Height: 4"
Width: 4 inch
Corners: 5/8" Radius
Hinge Type: NRP, Non-Removable Pin
Material: Steel Base, Also Available in Brass Base for Coastal Areas

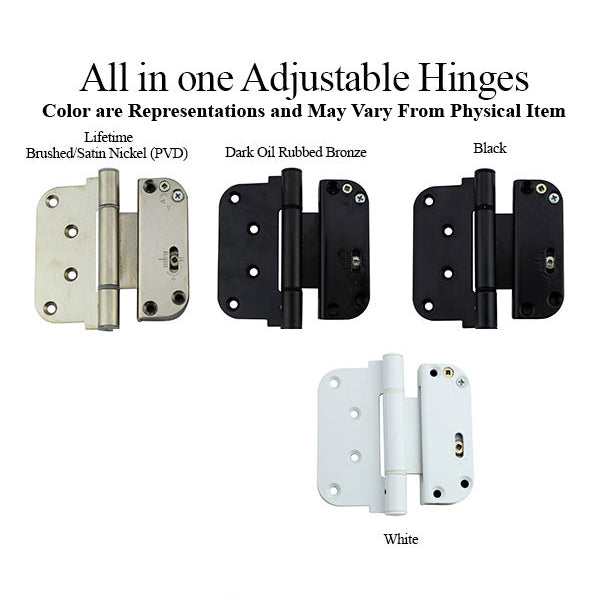

Available Finishes:
Black
White
Dark Oil Rubbed Bronze
Lifetime Brushed/Satin Nickel (PVD)
Polished Brass
Hinge fits a 3-5/8" mortise in the door panel and Jamb.
Will replace other hinges with same mortise prep.
ADJUSTMENT INFO:Horizontal and vertical adjustment on this hinge means that it adjusts to change the reveal (gap between the door frame and the edge of the door). The horizontal adjustment range is plus or minus 0.15 inch (+/- 0.15"). The vertical adjustment range is plus or minus 0.20 inch (+/- 0.20"). There are markings on the hinge cover for a visual indication of the vertical adjustment position.
Vertical Adjustment (V):Use a pry bar to reduce the downward weight of door panel, then adjust each hinge.Turn drive to raise or lower the door panel. Adjust each hinge 1/16" at a time until desired panel adjustment is achieved. Spread the door weight evenly between all 3 or 4 hinges.
Horizontal Adjustment (H):Turn drive to increase of decrease the reveal of the door.
Priced and sold each.
SCREWS NOT INCLUDED.
