Storm Door 3 Post Keyed Outside Handle with Square Spindle
Use the arrows or swipe left to view all images for this product
Storm Door 3 Post Keyed Outside Handle with Square Spindle
Part Number: $9.49This is a discontinued product and limited to existing inventory. No replacement.
This is the outside handle only for the 3 post storm door handle.
Replaces Old Style 3 screw posts on brass outside handle.
Handle uses 5/16 inch square spindle

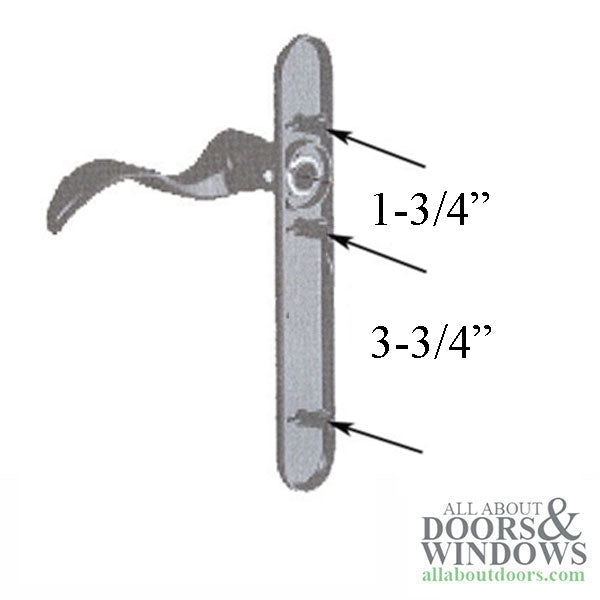

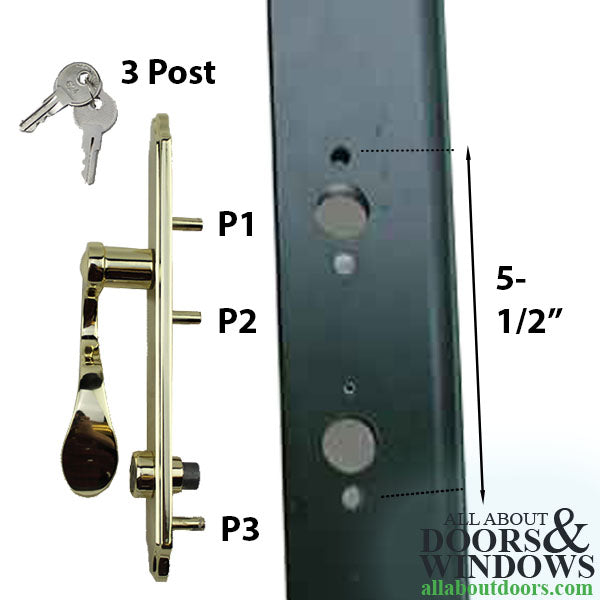

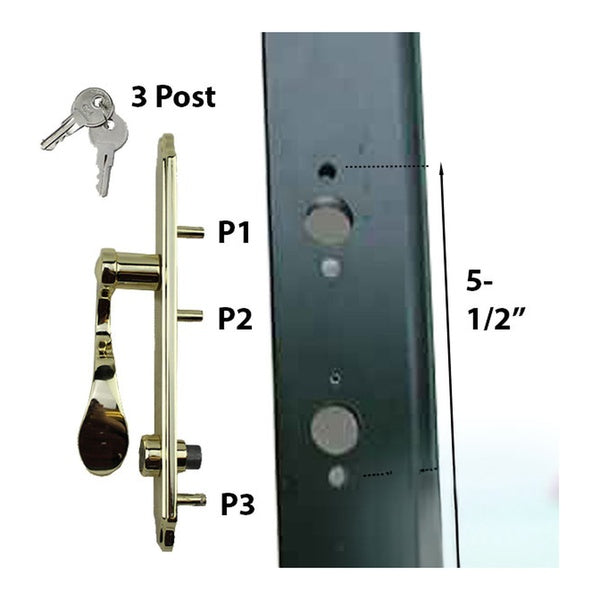

spacing for screws for inside handle and deadbolt thumb turn P1 to P2 is 1-3/4 inch hole
top screw to bottom screw P1 to P3 is 5-1/2 inch
NOTE: there is another handle set that has 4 posts and the spacing from top to bottom screw is 4-7/8 inches.- - these are not interchangable.
The replacement Handle set is actually 5-7/16 but will work with little or no adjustments. Does not come with screws.
THIS IS THE OUTSIDE HANDLE ONLY. Comes with 2 keys, no screws
Related Storm Door Hardware:
301045 - Complete Handle set Brass Exterior - White or Tan interior
