369900-AB

Part Number: 369900-AB
This Hinge is discontinued; Replacement Options see below

Unfortunately, the Columbus hinge has been discontinued by the manufacture in favor of the Ultimate 2D hinge. The Ultimate is stronger in comparison to the Columbus and is the same shape. Aside from the strength, the only difference between the two is the Ultimate is 1 mm (1/32") thicker than the COLUMBUS hinge. The customer may be able to compensate for this by adjusting the hinge to accommodate the thickness. If they need to have 100% precision, they can route, shave or sand the door 1 mm on the bottom side of the route.

Additional 2D Hinge Info:
This hinge was sold by HOPPE HTL and used by Pozzi, Caradco, Hurd, Jeldwen, Windsor, Crestline and others
Typically found on doors using the Fuhr brand multipoint lock.
The old style 2D hinge fit a route in the door panel and frame of 3-5/8 inch (92mm)
Hinge will work on Outswing Doors, but does not have NRP set screw to prevent pin removal.

Adjustable Hinge Specifications:

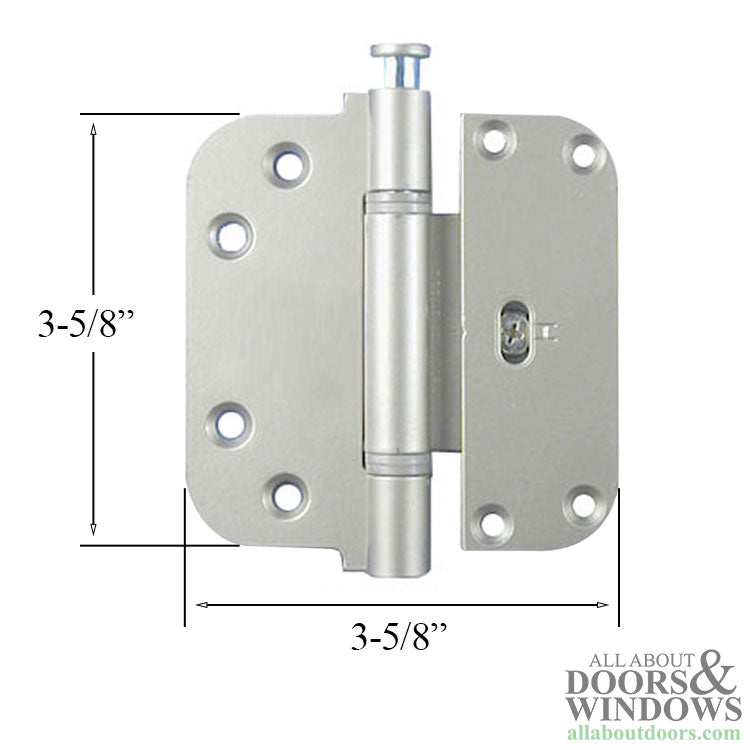

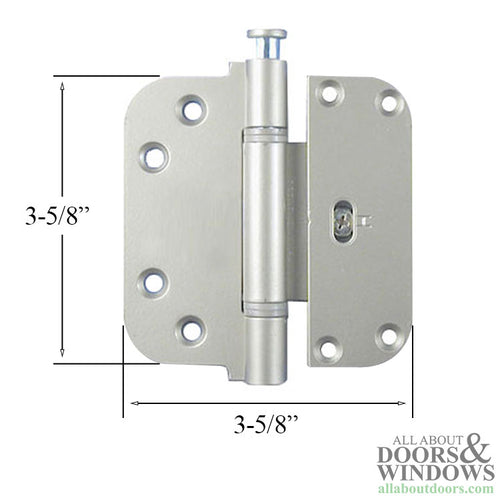

Hinge Size: 3-5/8 x 3-5/8 inch (92x92mm)

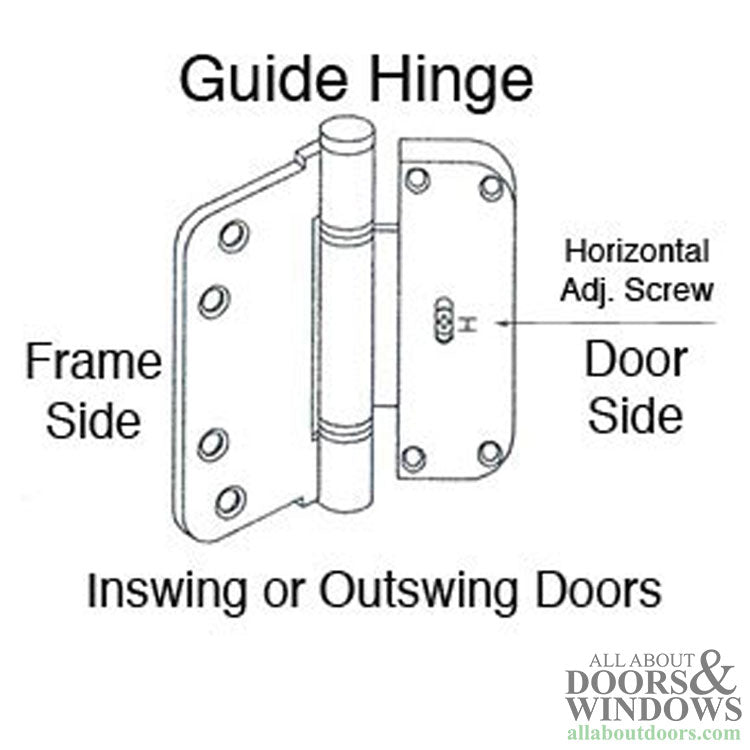

Hinge Type: GUIDE HINGE (H), Adjustable for Horizontal movement

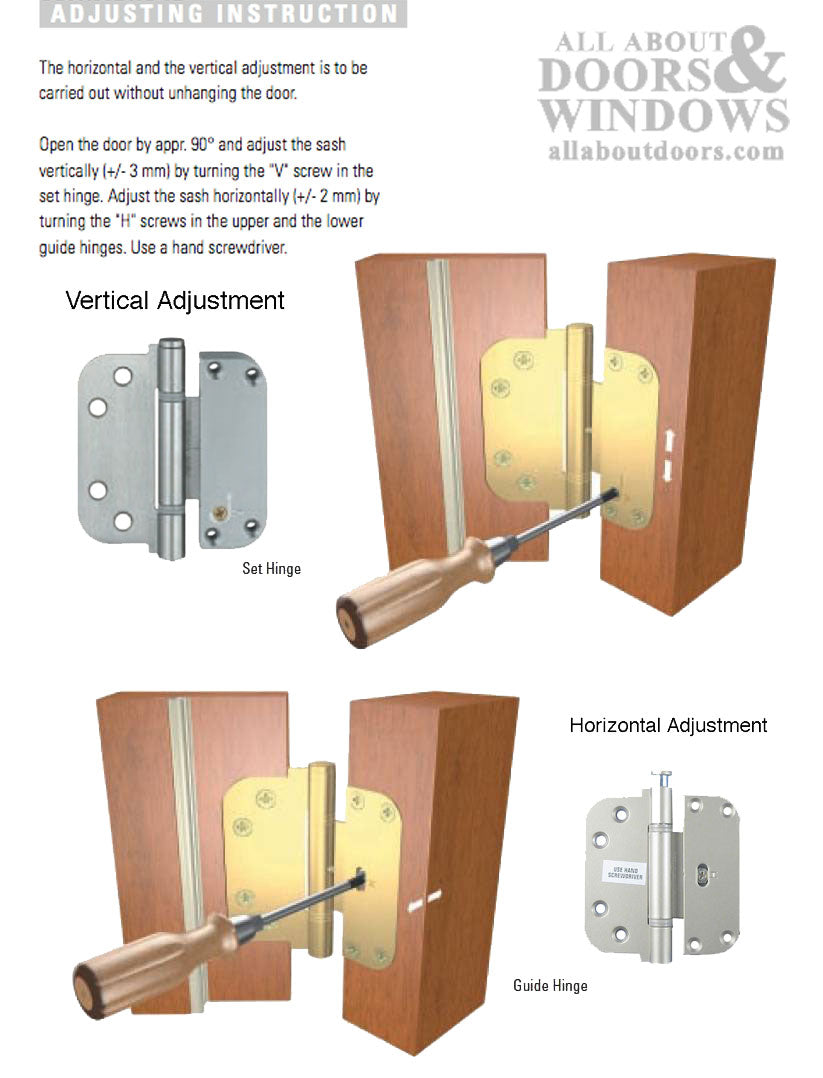

The Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment.
They are used with the SET HINGE (V) which is installed at the center for vertical adjustment
Four hinge doors have an additional Set or Guide Hinge depending on weight.
Jamb Screws - #9 x 3/4 Phillips Flathead;
Panel Screws - #8 x 1-1/2 Phillips Flathead.
Handing: Non-handed, Reversible, Removable Pin for Left or Right hand doors

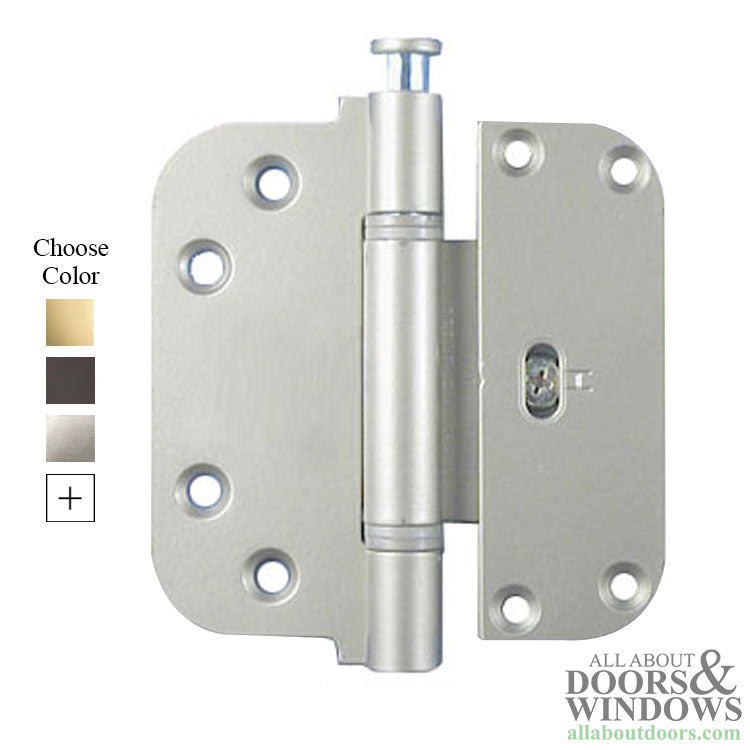

Color / Finish: Antique Brass / Brown with brassy Highlights

Sold Each, Priced Each - NO Screws

NOTE: If you need a complete set of 3 or more hinges replaced, we recommend using the new improved HOPPE hinges

Replacement Options
Amesbury Adjustable Hinges
HOPPE Adjustable Hinges
