369905-PB

Part Number: 369905-PB Price: $0.00

 This Hinge is  Discontinued.  Can be replaced with HOPPE or Amesbury Adjustable Hinges - See options Below

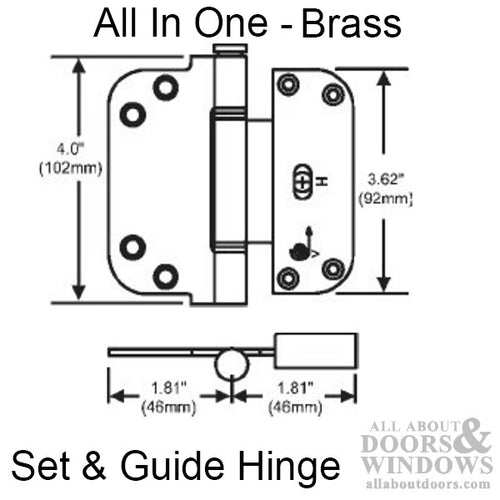

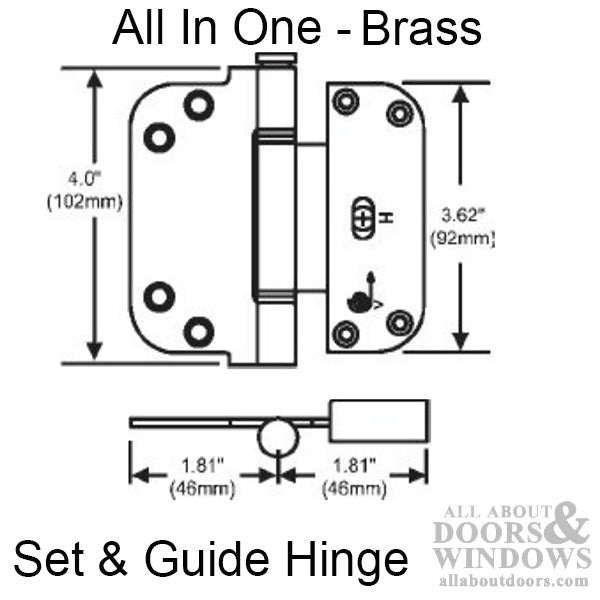

2D Adjustable Hinge Specifications:

Hinge Size: 3-5/8 x 3-5/8 inch (92x92mm)

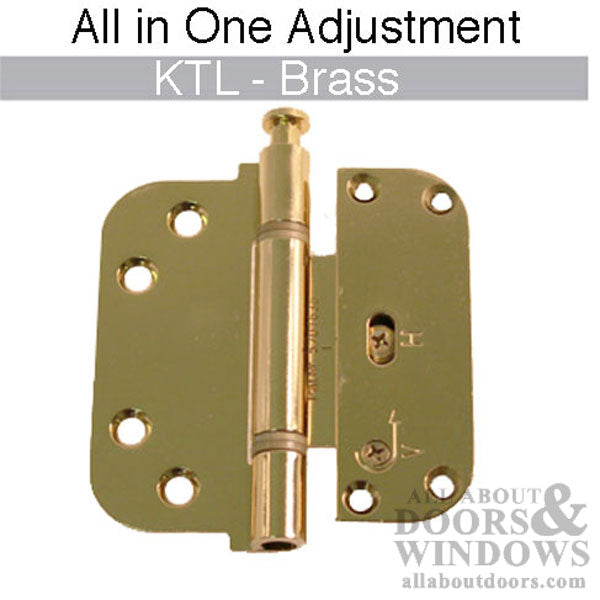

Hinge Type: All in one, Combination Guide and Set Hinge (H-V) with NRP

NRP hinges ( non-removable pin) are normally used with outswing doors, but work on inswing also

Single hinge that is Adjustable for both Vertical & Horizontal  movement

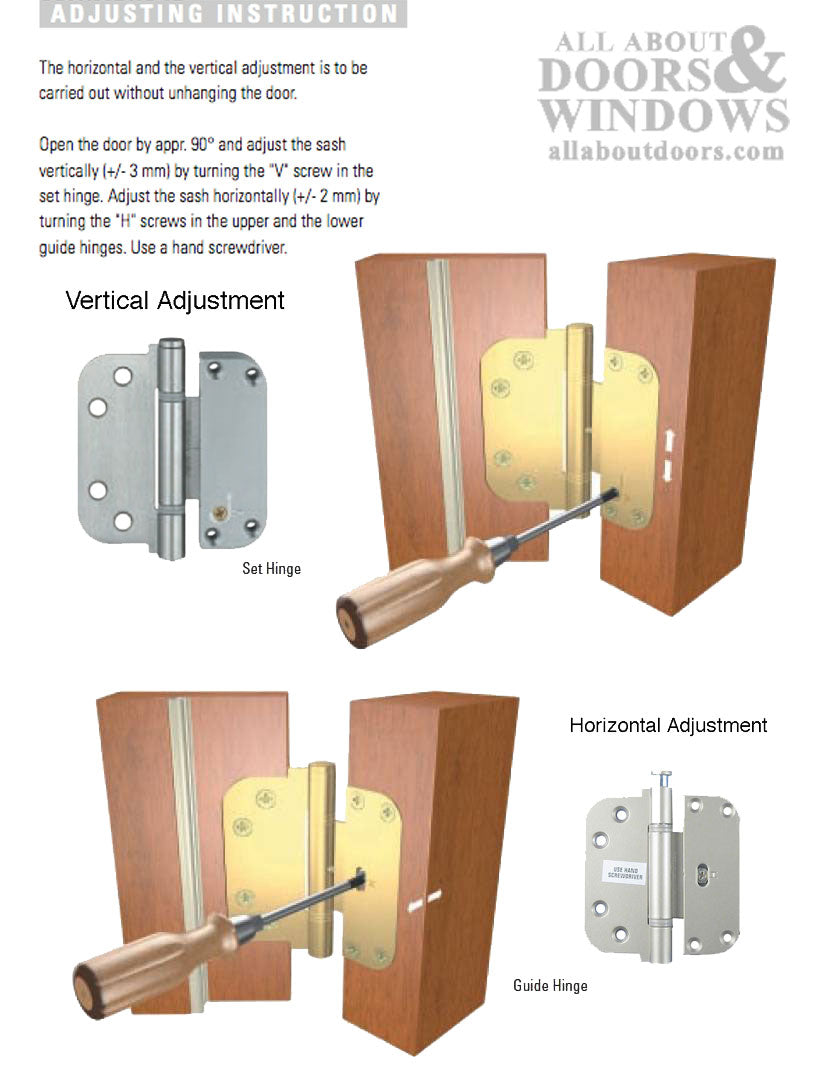

Normally the Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment.

They are used with the SET HINGE (V) which is installed at the center for vertical adjustment

Four hinge doors have an additional Set or Guide Hinge depending on weight.

Jamb Screws - #9 x 3/4 Phillips Flathead;

Panel Screws - #8 x 1-1/2 Phillips Flathead.

Handing: Non-handed, Reversible,  Removable Pin for Left or Right hand doors

Color / Finish: Plated Brass

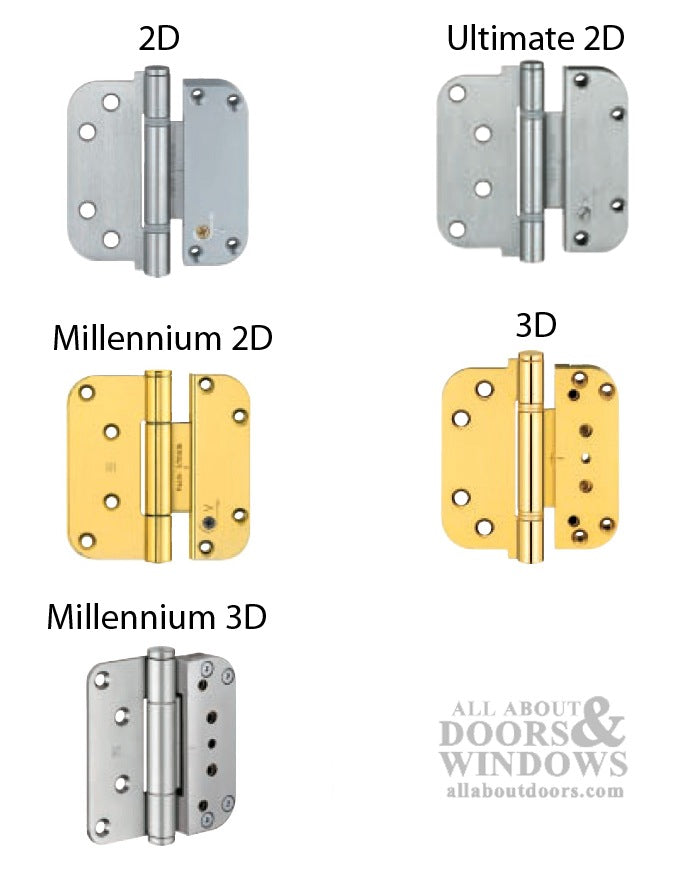

Replacement Options:

Option 1. Hoppe - We suggest replacing with the Hoppe Adjustable Guide and Set Hinge.

If replacing with Hoppe hinges, you need to replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)


Option 2. Amesbury - makes an all in one Adjustable Hinge, with Vertical and Horizontal adjustment.
