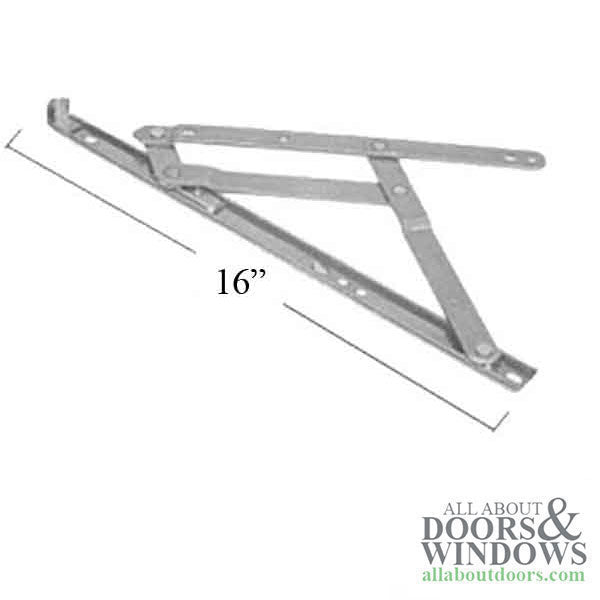

Anderberg 201 Series, Amesbury Truth 34.14.00.102 non-handed awning and casement 4 bar hinge

Application: Awning window
Hinge Type: 4 Bar
Stop: YES
Track Width: 11/16 inch (23/32)
Track Length: 16 inches
Hinge Pocket Height: 1/2 inch
Max Sash Width: 34 inches
Max Weight: 47 pounds
Shoe: Brass, Adjustable
Adjustable Friction: Yes
Material: Stainless Steel
Sold Each, No Screws - Should be replaced in Pairs

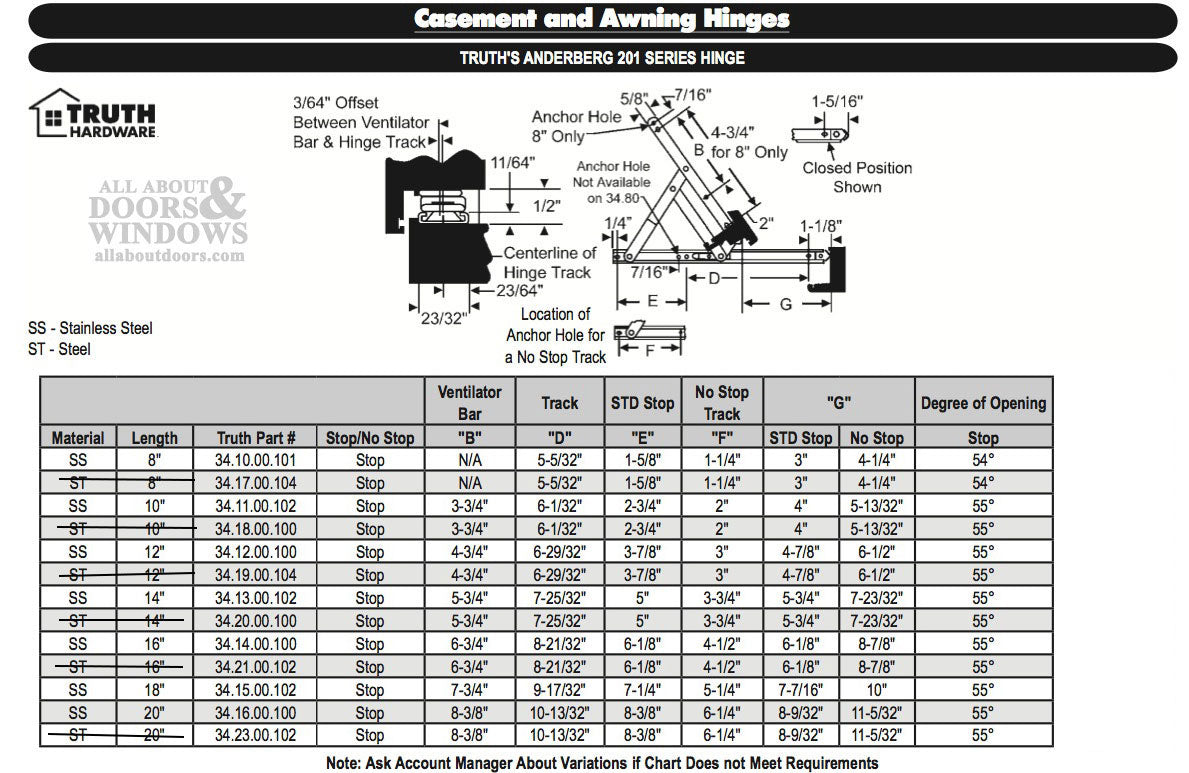

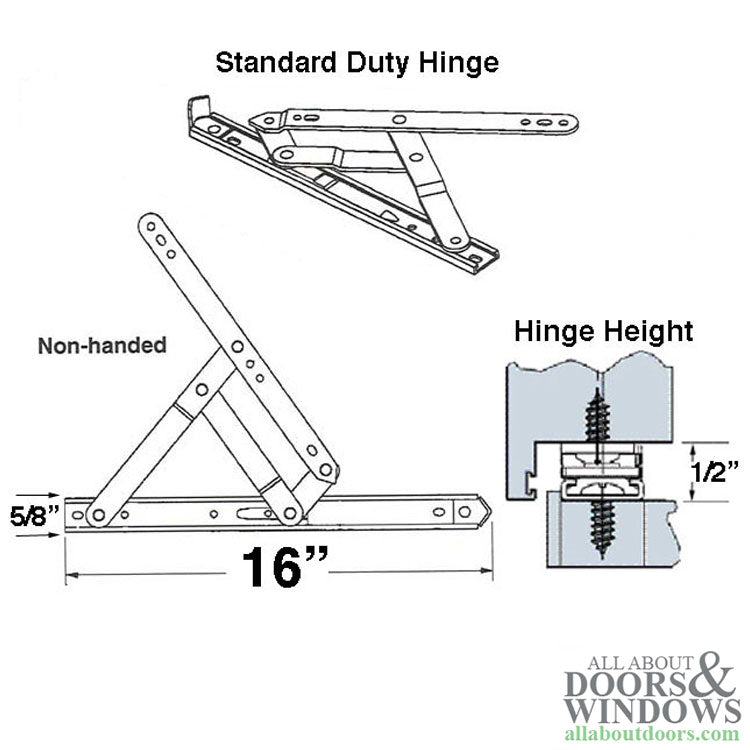

Measurements shown on Line drawing (inches)
B 6-3/4
D 8-21/32
E 6-1/8
F 4-1/2
G 6-1/8
Degree of Opening: 55°

Product Highlights
A wide range of lengths and thickness
4-bar hinges are certified to AAMA 904.1
4-bar hinges have been designed to be used primarily on vents with a lip on the outside edge
4-bar hinges are adaptable to both casement and projected window applications
Standard 4-bar hinges are for lighter windows no heavier than 40 pounds
Heavy duty 4-bar hinges are for commercial windows up to 200 pounds
201/301 Series hinges are manufactured with a black acetal plastic or brass shoe
Available in stainless steel ( YDI Steel is Discontinued)
