414531020

Part Number: 414531020-BSN
COLOR: - Brushed/Satin Nickel

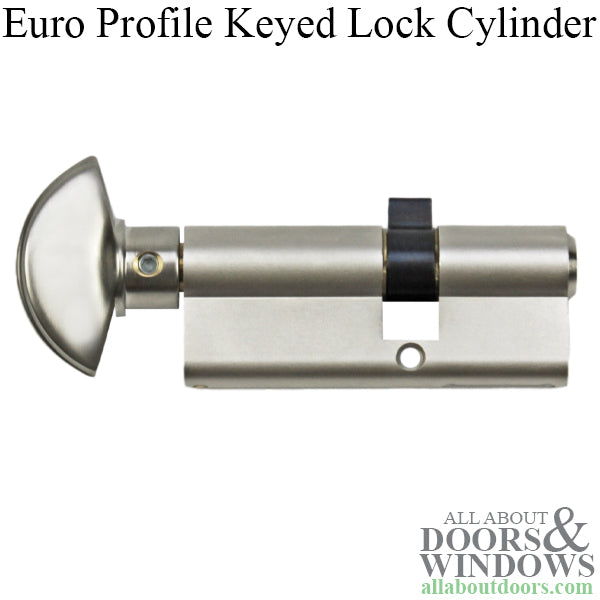

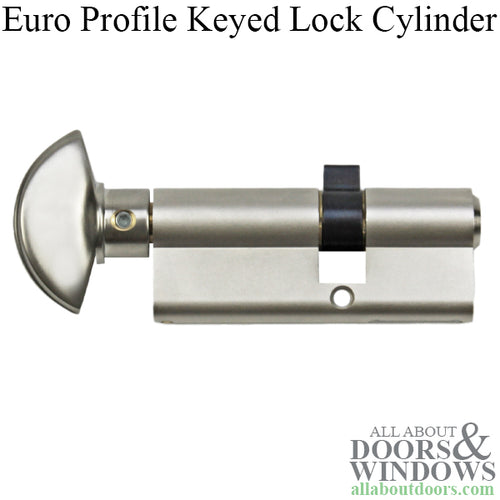

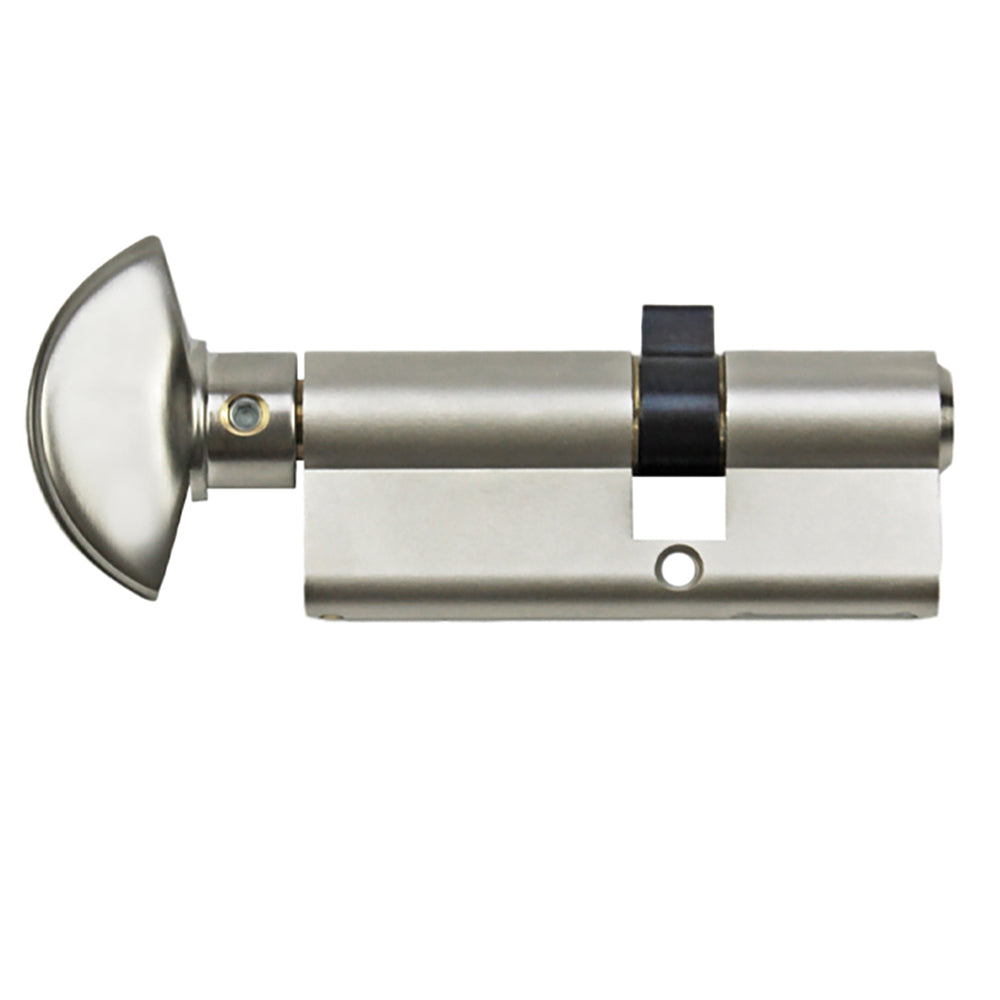

CES PZ00090KC Active Cylinder 45.5 / 31.5 mm 90 degree.

CES is discontinued and is limited to existing inventory.

This Cylinder is normally for a 1-3/4 inch thick door when Multi-point lock is NOT installed in center of stile

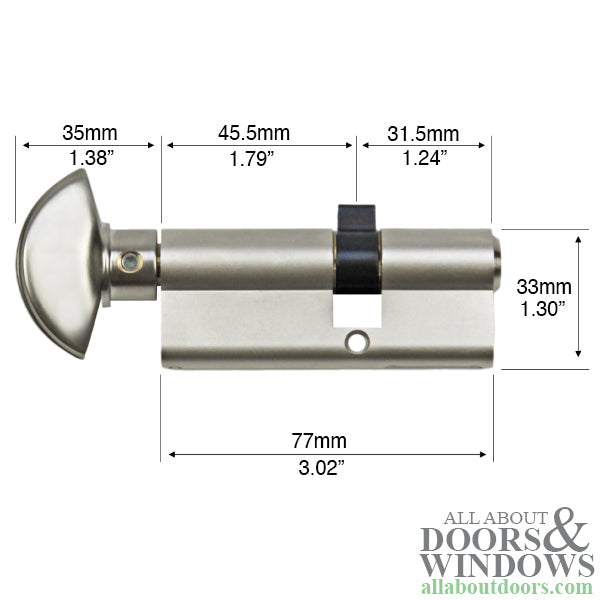

Cylinder Length: 77mm ( 3 inches)

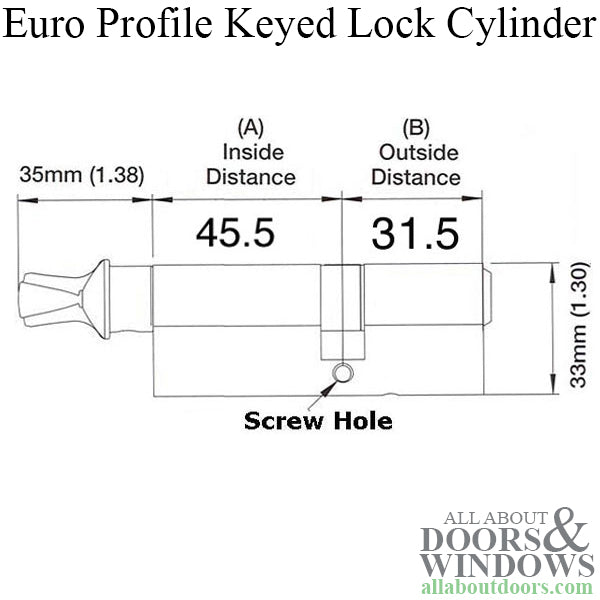

Inside Cylinder Length - A: 45.5mm ( 1-3/4 inches)
Outside Cylinder Length -B: 31.5mm ( 1-1/4 inches)

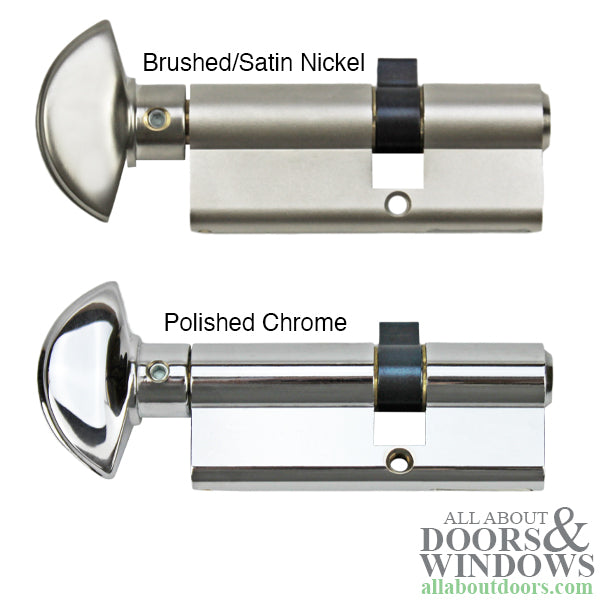

Color / Finish: F42 F42-R Satin Nickel Resista or Polished Chrome
Keyed Cylinder: 5 pin Schlage SC1 Keyway

CES 90 degree thumbturn insert with Cresent knob for active door.
This cylinder has a 90 degree thumb turn that allows easy viewing for doors when locked or unlocked
Used on many brands of doors / Hardware including Essve, Truth, Marvin, Hoppe, Fuhr, Roto and others.
Country of Origin: Germany

Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert or remove from mortise lock body.
4. Replace Thumb turn.
5. Check operation of door lock - BEFORE closing door

Priced Each, Sold Each.
