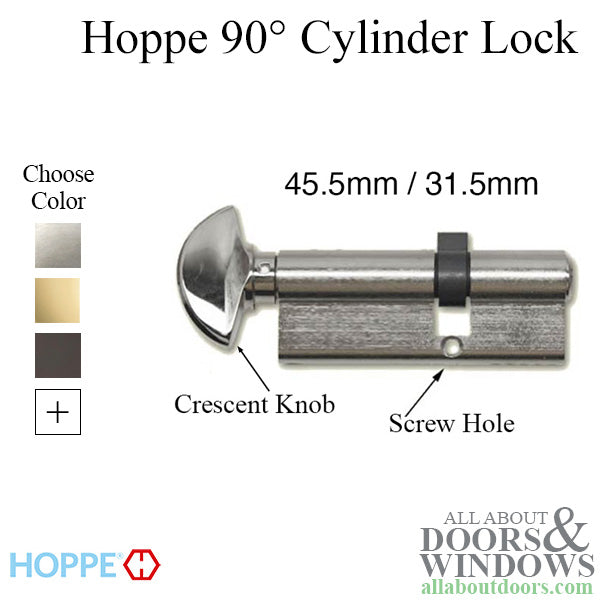

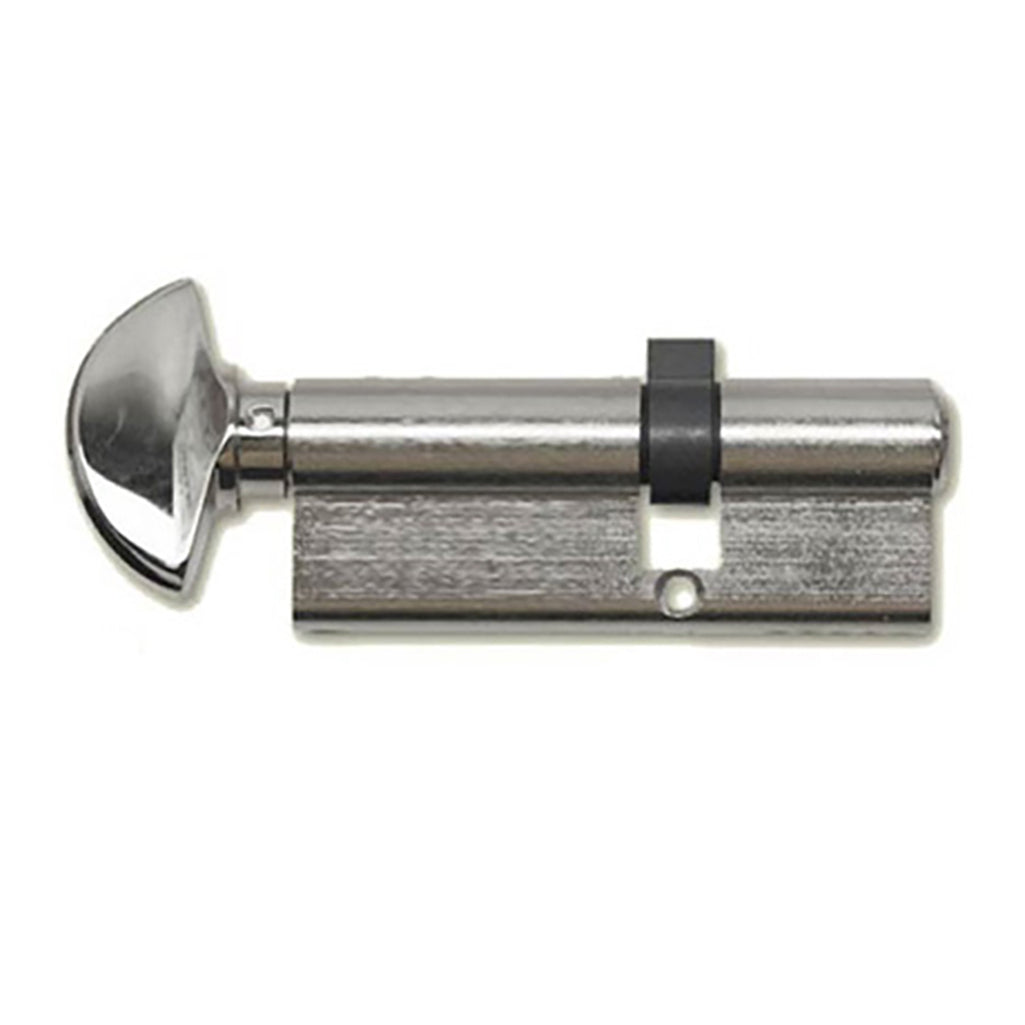

New style 90 degree HOPPE non-logo profile keyed cylinder with crescent knob.

Used on doors that are 2-1/8 to 3 inches thick.

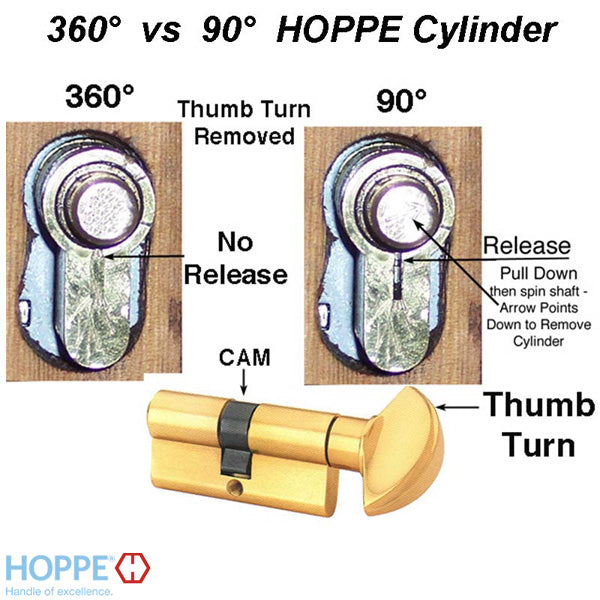

The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.

This cylinder can be converted to a 360 degree cylinder.

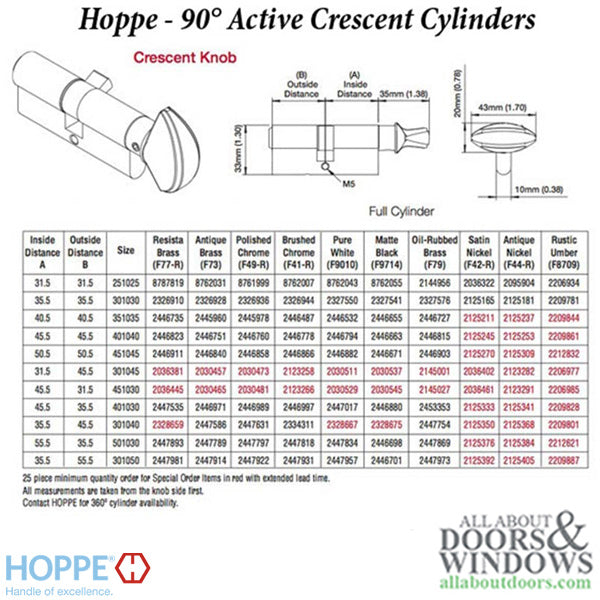

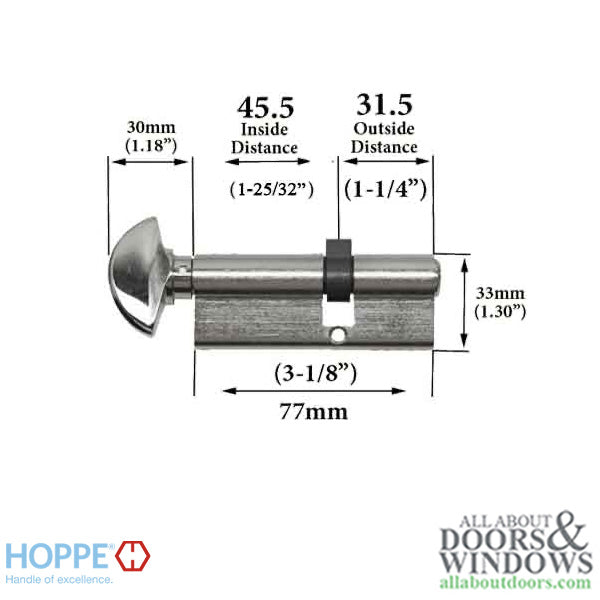

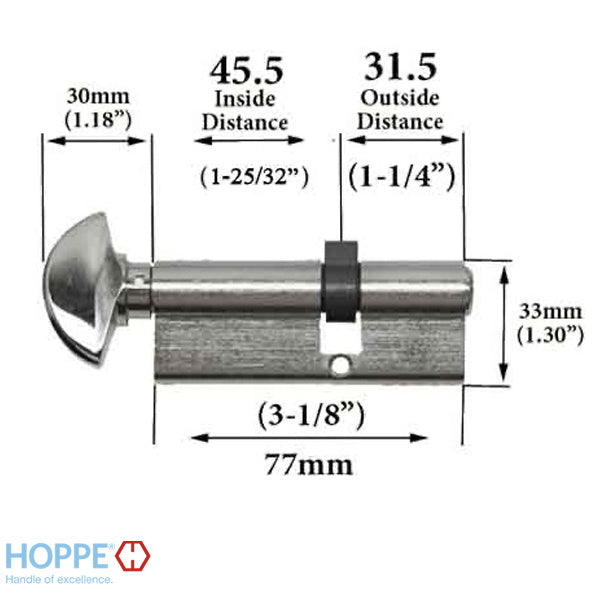

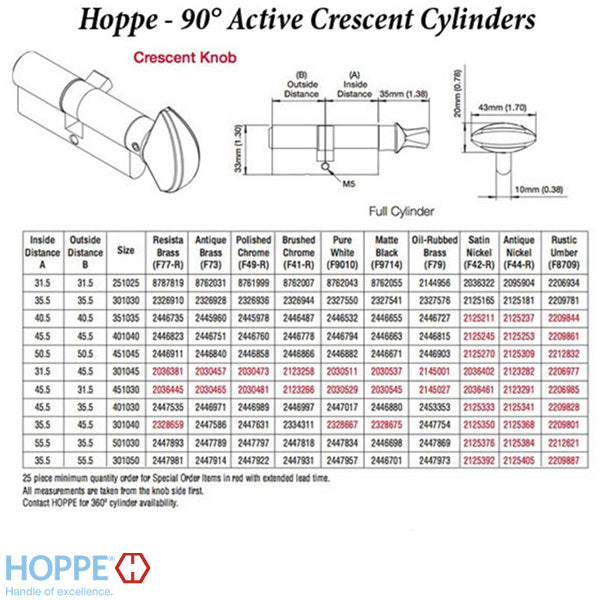

Measurements:
Inside Distance = 1-25/36 inch (45.5 mm)
Outside Distance = 1-1/4 inch (31.5 mm)
Overall (inside + outside) = 3-1/8 inches (77 mm)

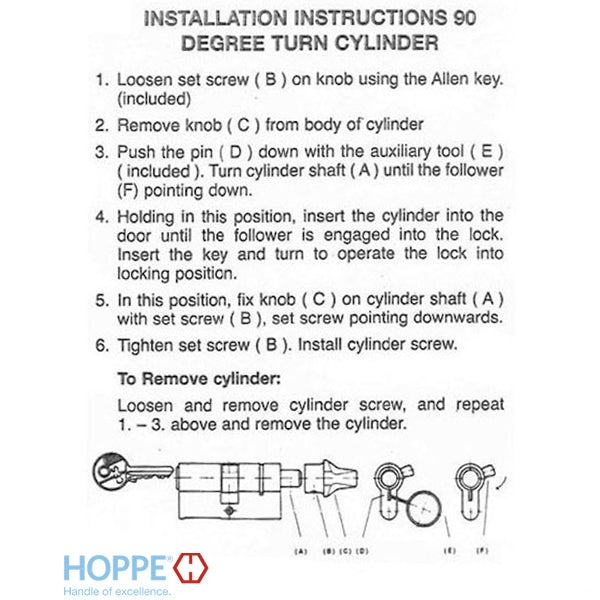

Installation Instructions:
1. Remove Thumb Turn

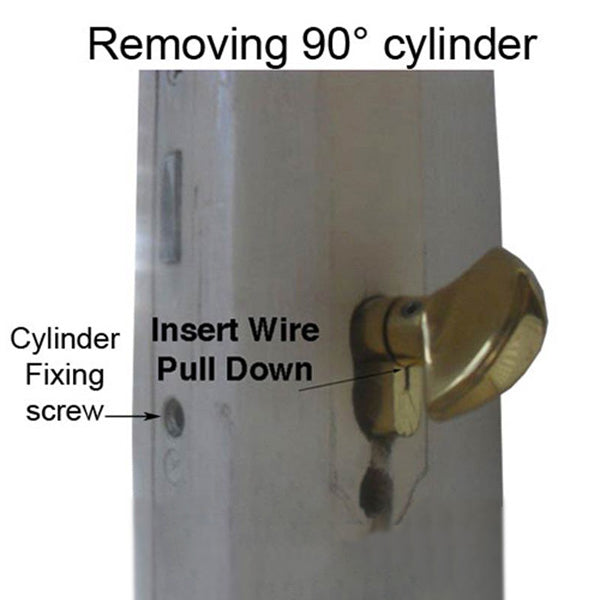

2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

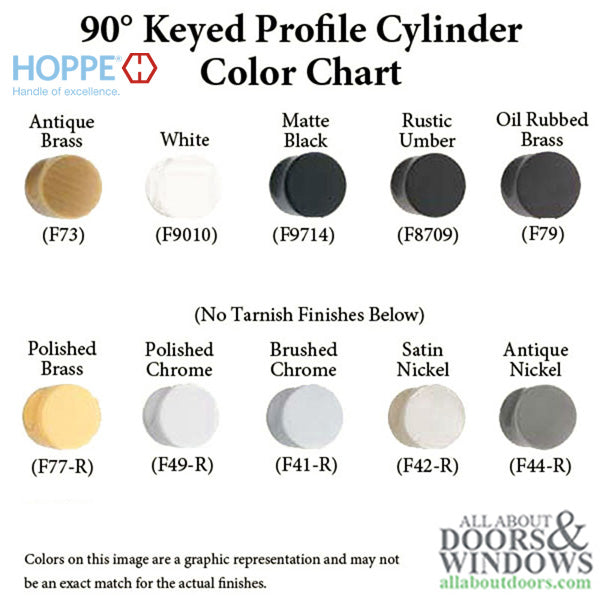

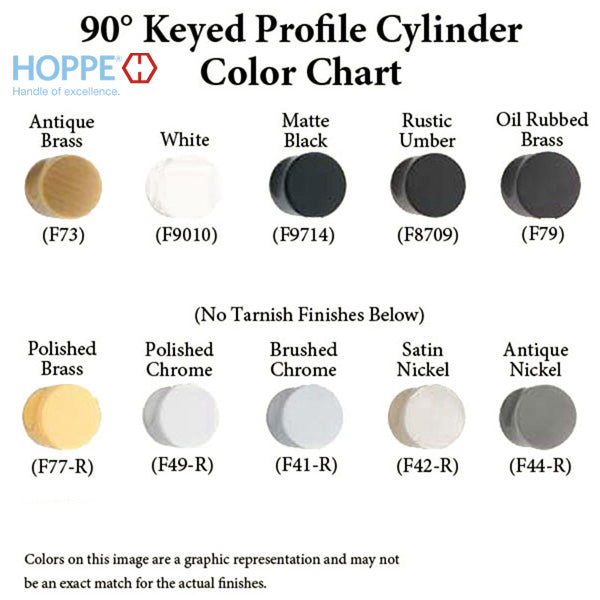

Color/Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)

Resista no-tarnish finishes:
Polished Brass (F77-R)
Satin Nickel (F42-R)

Note: Some colors may be special order, resulting in longer shipping times.
