71 - 85-5/8 inch Tongue Version, 35mm backset Discontinued See Replacement Options
Part Number: 499021699 Price: $0.00Replace with 4990221

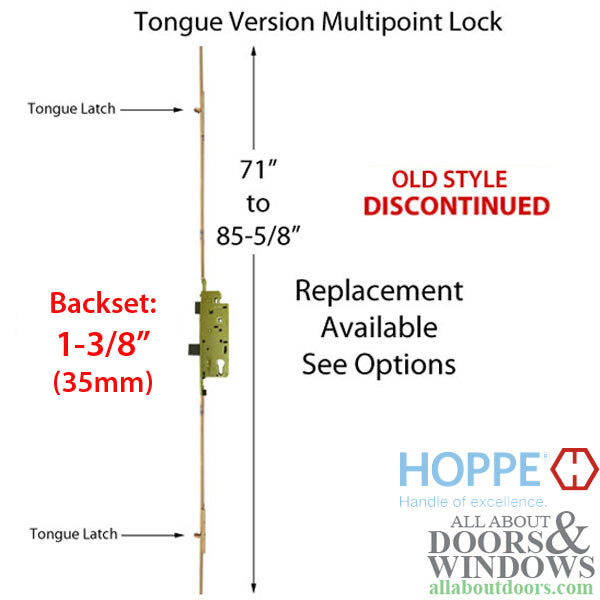

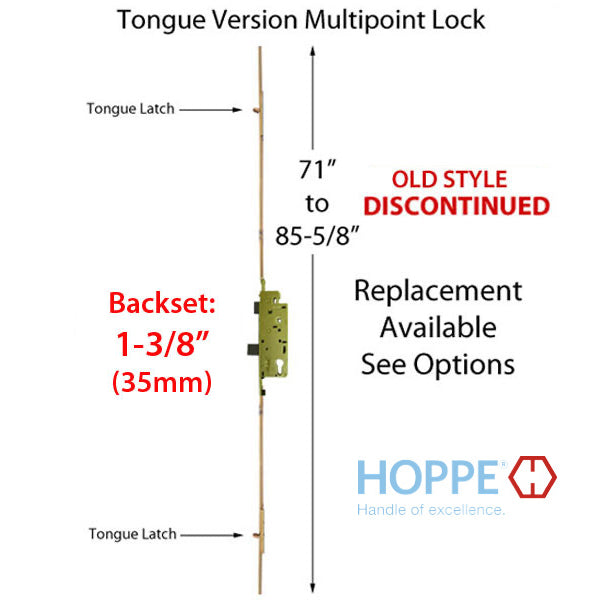

This is a 2 piece Tongue Version Multipoint Lock made by HOPPE.
It features 2 Tongue Latch locking devices.
One is located 29-1/2" above the center of the Handle Cylinder
The other is located 26" below the center of the Handle Cylinder

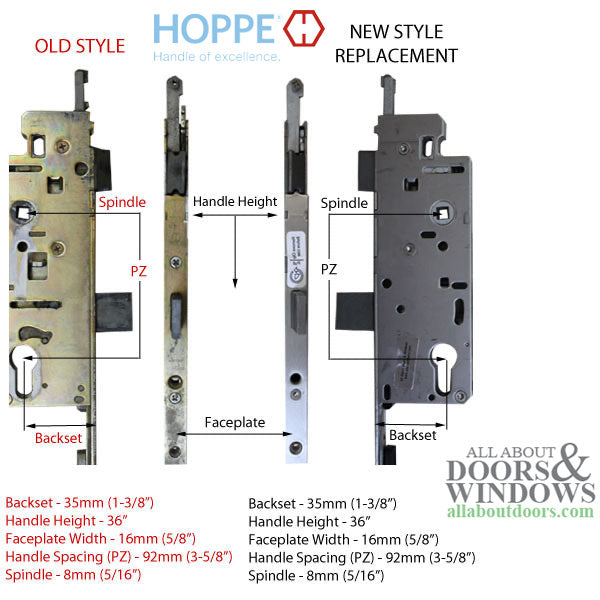

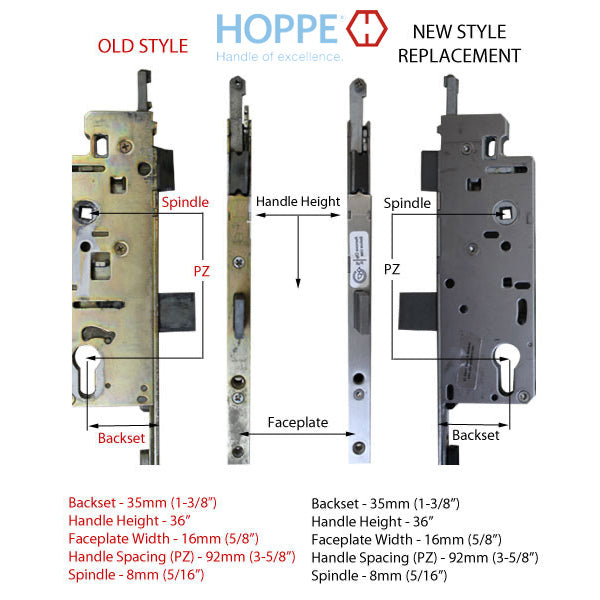

Discontinued Lock Measurements:
Overall Length: 71 - 85-5/8 inches (lengths may vary)
Backset: 35mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36"
Handle Spacing (PZ): 92mm (3-5/8")

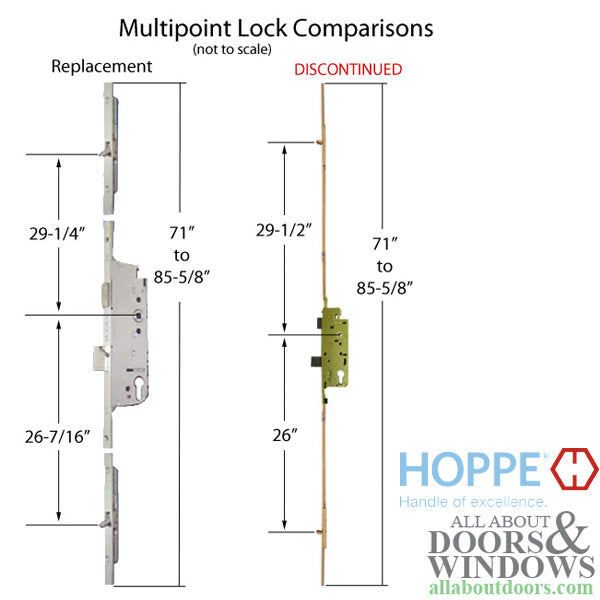

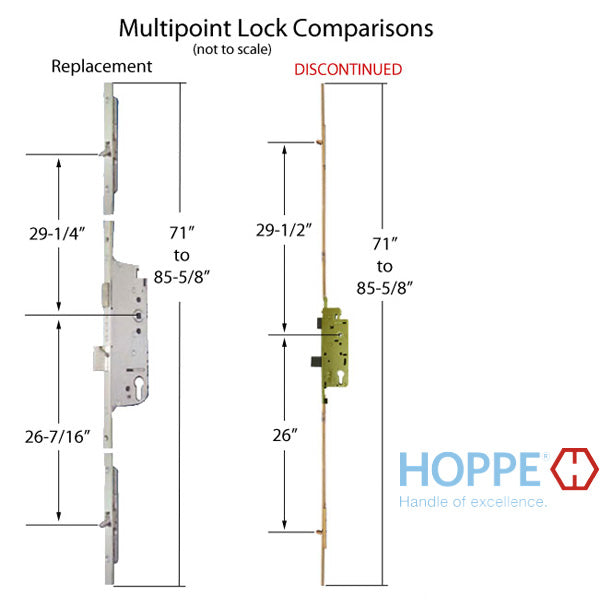

Top Tongue Position: 29-1/2" above center of Handle Cylinder
Bottom Tongue Position: 26" below center of Handle Cylinder
We have developed a Tongue Version Replacement Kit for the above mentioned discontinued lock.
(See Replacement Options)
Please check your measurements carefully to insure you have the correct replacement.
Replacement Options:
4990221 - 35mm Tongue Version Replacement Kit
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
