Replace with 4990235

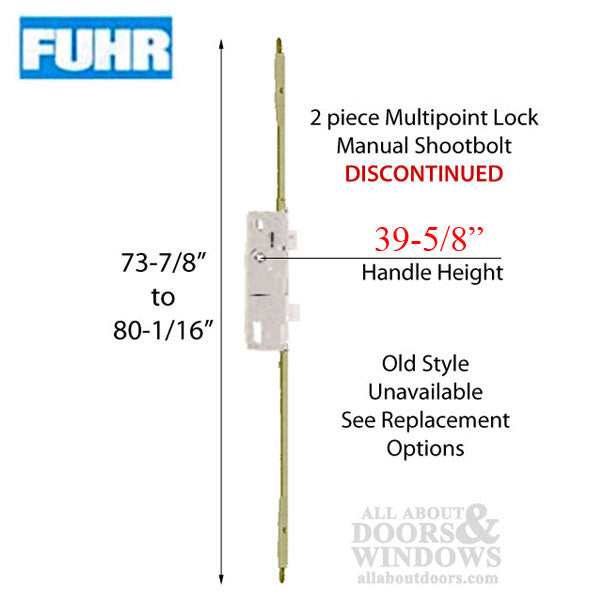

This is a 76-1/4 inch Shootbolt Version Multipoint Lock made by Fuhr.
It features 2 Shootbolts and a Deadbolt
The Shootbolts are located at both extreme ends of the lock.
This lock has a unique Handle Height of 39-5/8 inch.

This is an OLD STYLE and is no longer available for purchase.
It must be replaced. (See Replacement Options)

Please check your measurements carefully to insure you have the correct replacement.

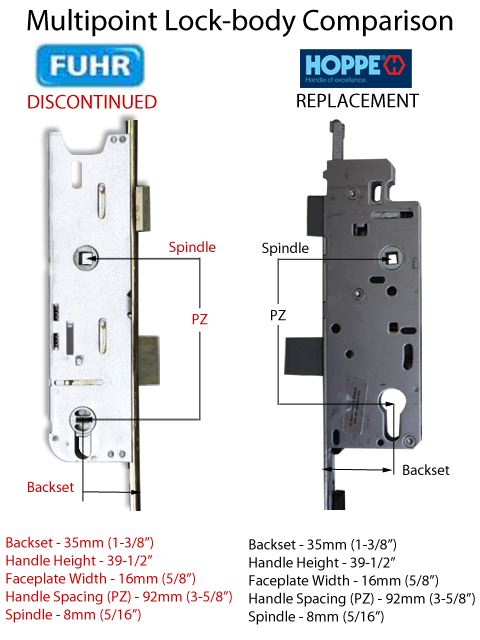

Discontinued Lock Measurements:
Overall Length: 73-7/8 - 80-1/16 inch (lengths may vary)
Backset: 35mm (1-3/8")
Faceplate Width: 16mm (5/8")
Handle Height: 39-1/2"
Handle Spacing (PZ): 92mm (3-5/8")
Spindle Diameter: 8mm (5/16")
Shootbolt Positions: Located at the extreme ends of the lock.
Shootbolt Throw: 3/4"

For detailed information on Lock Comparisons and Installation, please see the appropriate Article. (PENDING)

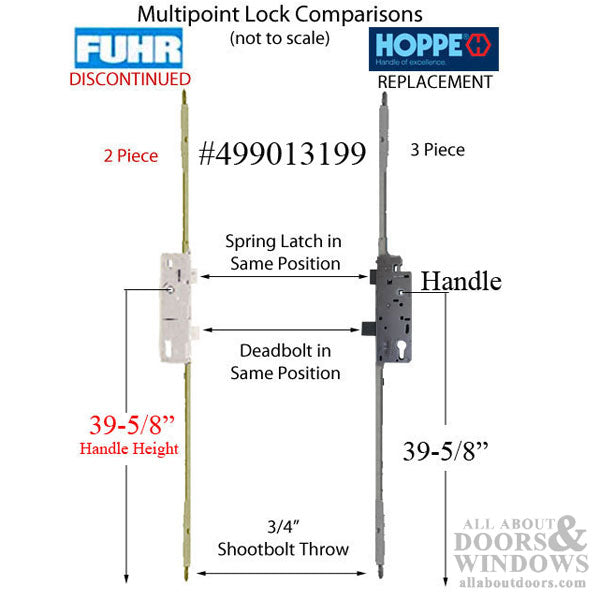

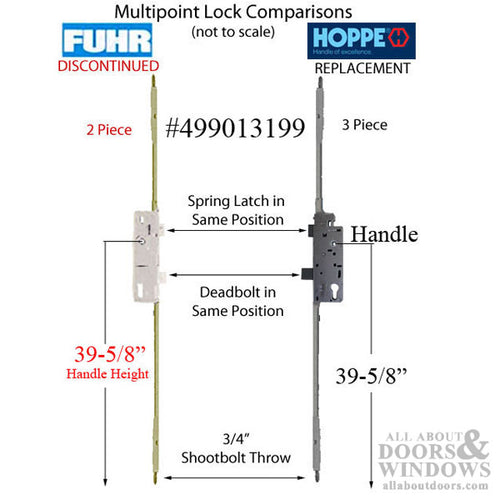

Replacement Options: We have developed a Shootbolt Replacement Kit
This is the easiest replacement currently available and will require the least amount of work.
4990235 - Shootbolt Replacement Kit

Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
