Hoppe Square Panic Spindle 5/16 x 4-3/4" (8mm x 120mm) for 1-3/4 inch doors with electronic lock

Application: Hoppe Multitronic Multipoint lock
Spindle Type: Swivel
Diameter: 5/16 inch (8mm)
Length: 4-3/4 inch (120mm)
Door Thickness: 1-3/4 inch

NOTE:

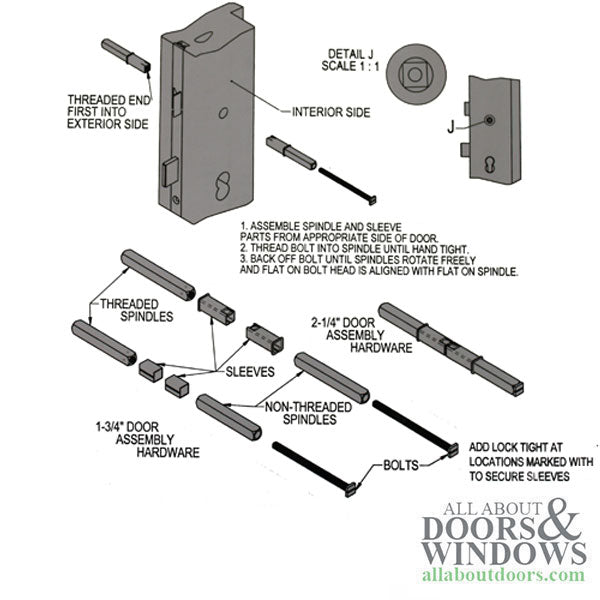

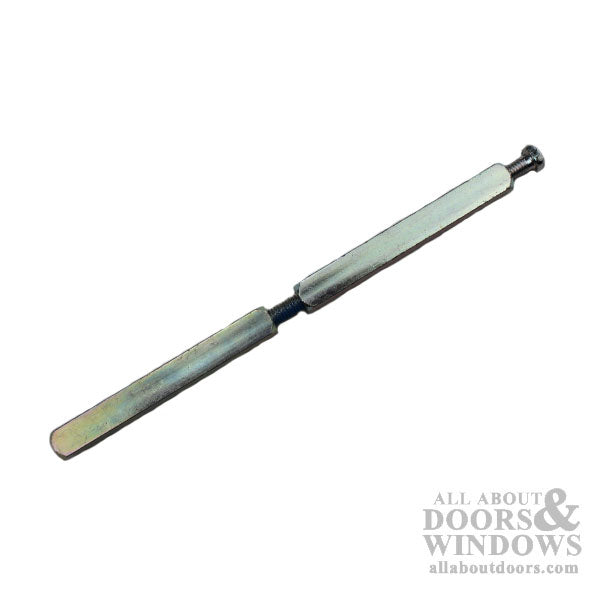

This is a 2 piece 8mm spindle that has a screw connecting the 2 sides.
When installing in the Hoppe Multipoint lock with 9mm hub, a sleeve is added to the spindle to increase the 8mm to 9mm.
The spindle is taken apart, inserted, then screw reattached. The screw head goes to the interior
