Hoppe Square Panic Spindle 5/16 x 5-1/2" (8mm x 140mm) for 2-1/4 inch doors with electronic lock

Application: Hoppe Multitronic Multipoint lock
Spindle Type: Swivel
Diameter: 5/16 inch (8mm)
Length: 5-1/2 inch (140mm)
Door Thickness: 2-1/4 inch

NOTE:

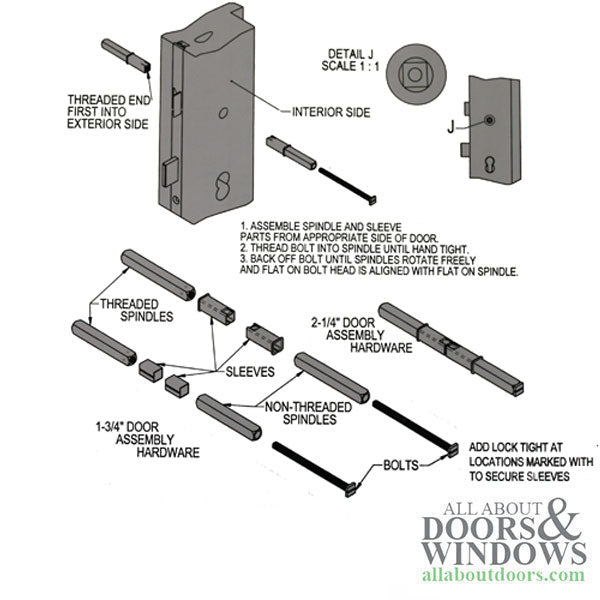

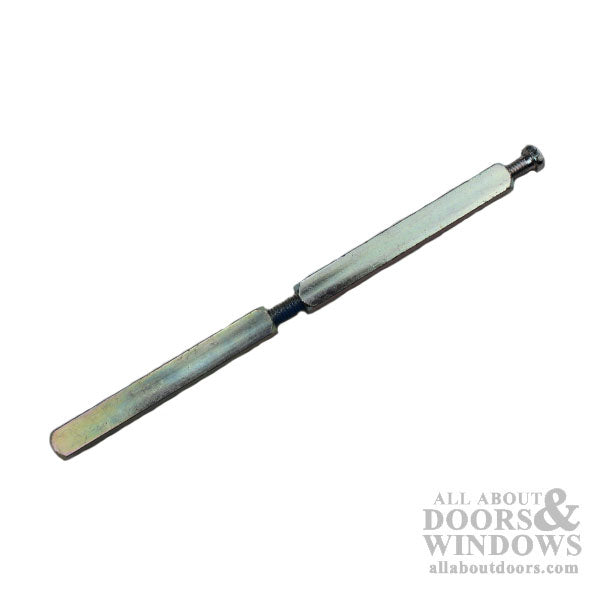

This is a 2 piece 8mm spindle that has a screw connecting the 2 sides.
When installing in the Hoppe Multipoint lock with 9mm hub, a sleeve is added to the spindle to increase the 8mm to 9mm.
The spindle is taken apart, inserted, then screw reattached. The screw head goes to the interior
