DISCONTINUED ITEM - Replacement Available - Please Read All Information

This is a 3 point Multipoint Lock with Shootbolts at the extreme Top and Bottom of the Lock.

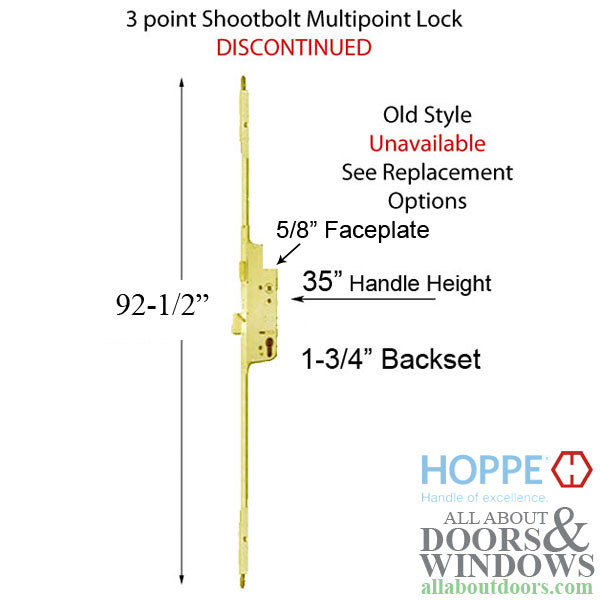

Discontinued Lock Measurements:
Overall Length: 92-1/2"
Backset: 45mm (1-3/4")
Handle Height: 35"
Handle Spacing (PZ): 92mm (3-5/8")
Handle Spindle: 7mm (1/4")
Faceplate Width: 16mm (5/8")

The easiest replacement for this Discontinued Lock is a 3 piece, 3 point Replacement Lock Kit.

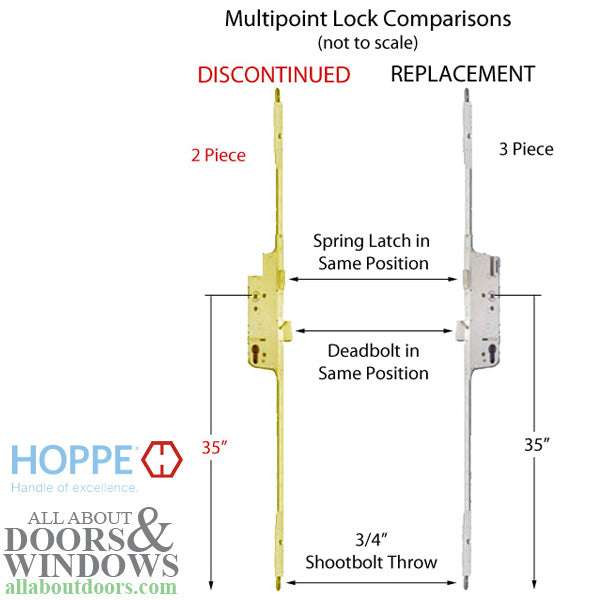

The Replacement Lock Kit is very similar to the Discontinued Lock.
It features two Shootbolts and a Deadbolt and will fit doors up to 94-1/4 inches..

The Replacement Lock's Spring Latch and Deadbolt are in the exact same position.
The old Strike Plates will work.

The Replacement Kit is available in Finishes:
Stainless Steel

Replacement Options:
4990233 - 3-point Shootbolt Replacement Kit
Kit includes: Gear / Lock-body, Middle Extension, Top Shootbolt Extension, Cover Plate and 15 Stainless Steel Screws

For detailed Information on the Installation process, please see Article (PENDING)

Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
