Discontinued Item - Replacement Available
This is a 92-1/2" Roller Version Multipoint Lock made by Fuhr.
It features 2 Roller locking devices and a Deadbolt.

This lock has been discontinued and is no longer available for purchase.
It must be replaced. (See Replacement Options)
Please check your measurements carefully to ensure you have the correct replacement.

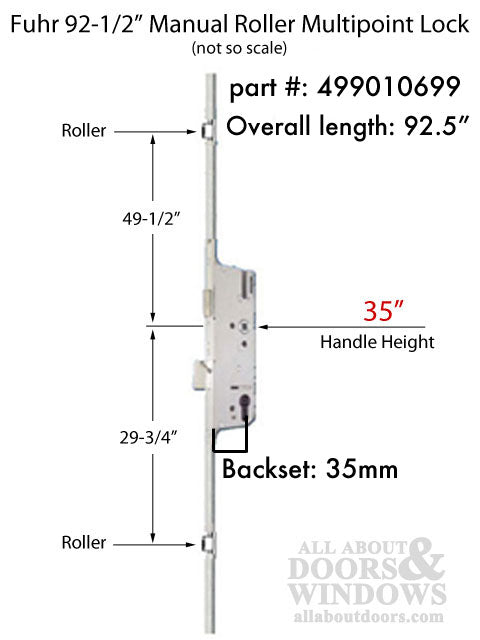

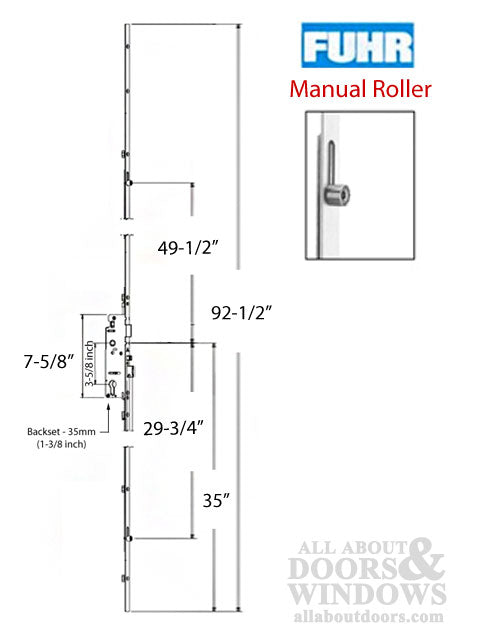

Lock Measurements:
Overall Length: 92-1/2" (lengths may vary)
Backset: 35mm (1-3/8")
Faceplate Width: 16mm (5/8")
Handle Height: 35"
Handle Spacing (PZ): 92mm (3-5/8")
Top Roller Position: 49-1/2" above center of Handle Cylinder
Bottom Roller Position: 29-3/4" below center of Handle Cylinder

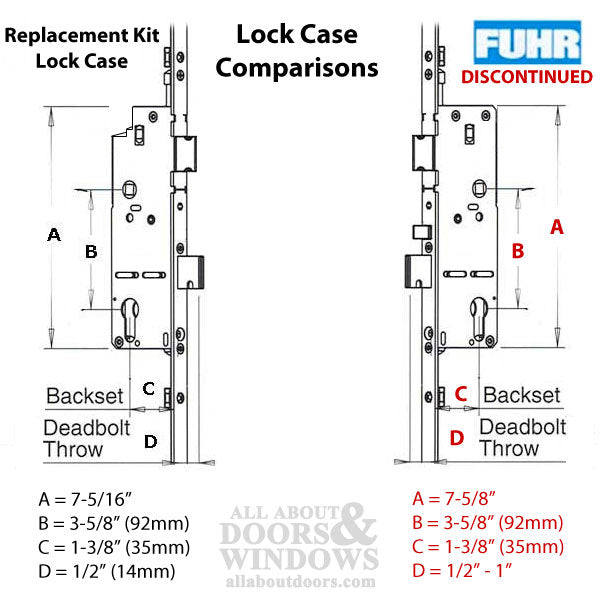

2 Replacement Options:
1. 4990280: HOPPE with roller on bottom and shootbolt on top. This is the easiest replacement for the discontinued FUHR lock: it is a 3-piece system with a bottom roller in the same position as the FUHR lock and a shootbolt on the top instead of a top roller. The top extension will fit doors from 91-3/8 inches to 95-5/16 inches tall and will need to be cut to length. Unlike option 2, this replacement does not require moving roller strikes on the door jamb. Kit includes bottom gear, middle extension, top shootbolt, socket strike and stainless steel installation screws.

2. 4990205: HOPPE with 2 rollers: This replacement is more complex; involves moving strikes on door jamb; lock will fit doors from 89-3/4 inches to 99-7/16 inches tall and will need to be cut to length. Kit includes bottom gear, top extension and stainless steel installation screws.

NOTE: Handle height of both replacement kits is 36 inches-- replacement requires trimming an inch off the bottom of the new lock so handle is at 35 inches to match the holes bored into your door.

For replacement guide for option number 1, read article: Replacing FUHR with HOPPE Roller/Shootbolt
For replacement guide for option number 2, read article: Replacing FUHR with HOPPE Roller Additional Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
