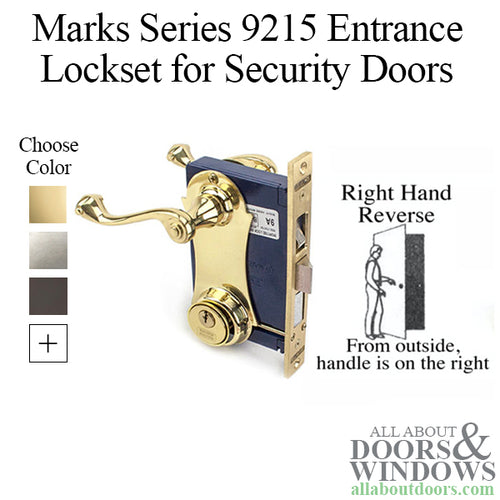

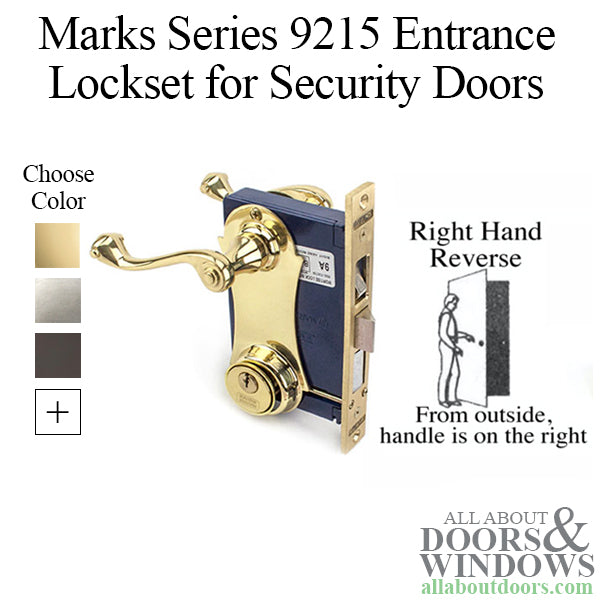

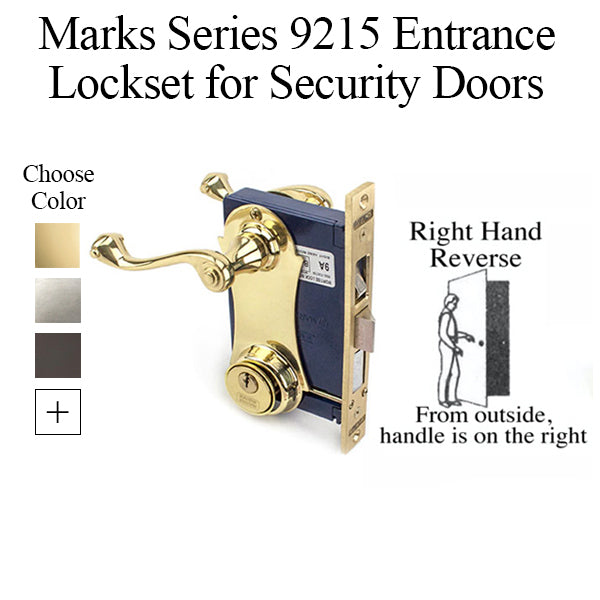

Marks 9215 Series Ornamental Iron Door Mortise Lock set. Used primarily with steel security doors.

Important Keyway Information:
1 inch thick door option comes with a Marks "A" Keyway (Kwikset KW1)
1-¾ inch thick door option comes with a Marks "C" Keyway (Schlage SC1)

Available Colors: Polished Brass, Brushed/Satin Chrome, Antique Brass, Oil Rubbed Bronze

Door Thickness: 1" (standard) or 1-3/4" (special order, please allow 4-8 weeks)
Face Plate: 1 inch by 7-1/8 inch
Blue Box measures 5-1/2 by 3-3/8 inches.
Backset: 2-1/2 inches from faceplate to center of holes for lock or handles.
Spindle: 5/16 inch (8mm) Square
Locks: Double Cylinder Mortise lock with 2 keys.

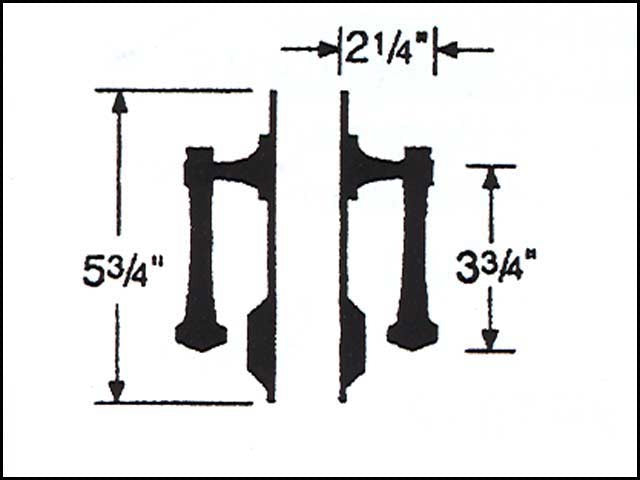

Handles: Lever Handles inside and outside with trim plates.

Handing: Right Hand Reverse (if key is below lever, handles are on the right when you stand outside the house)

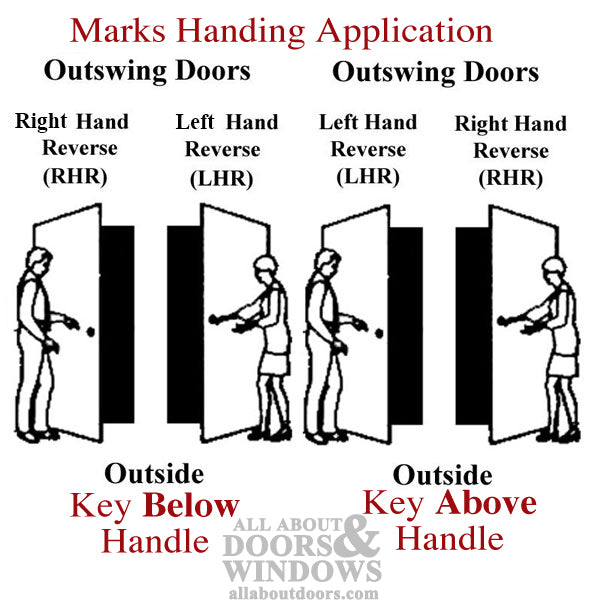

HANDING INFO: The key can be installed ABOVE or BELOW  handle on OUTSWING security doors

Key Below Lever:
Viewed From Outside, Hinges on Left, Handle on Right = Right Hand Reverse (RHR)
Viewed from Outside, Hinges on Right, Handle on Left = Left Hand Reverse (LHR) --> see 301076

Key Above Lever:
Viewed From Outside, Hinges on Right, Handle on Left = Right Hand Reverse (RHR)
Viewed from Outside, Hinges on Left, Handle on Right = Left Hand Reverse (LHR) --> see 301076

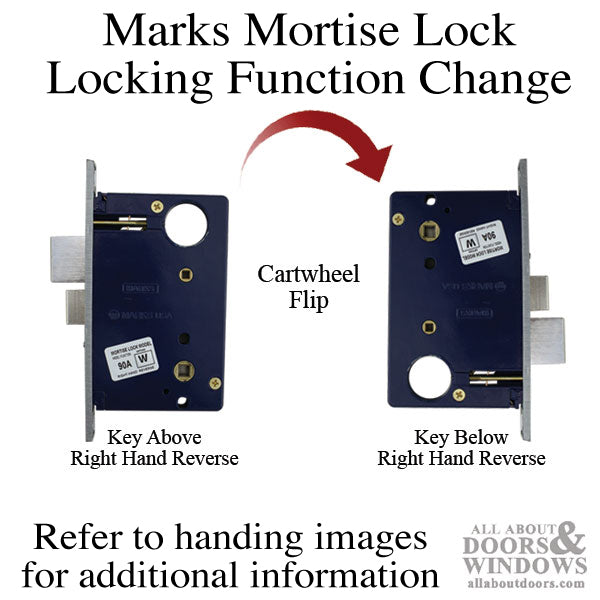

When the lock is inverted it changes the locking function.

Locks are reversible, but better to get what you need.

Resources:
How to change a Marks lockset from right hand reverse to left hand reverse (and vice versa)

For the same lock with knobs instead of levers, see 301073 - Marks Series 22 Unilock Entry Lockset with Knobs
