Discontinued Winkhaus Active Mercury / STQ trimset, One Motion  (OML) Single Cylinder Handleset Trim - Limited to 1 only

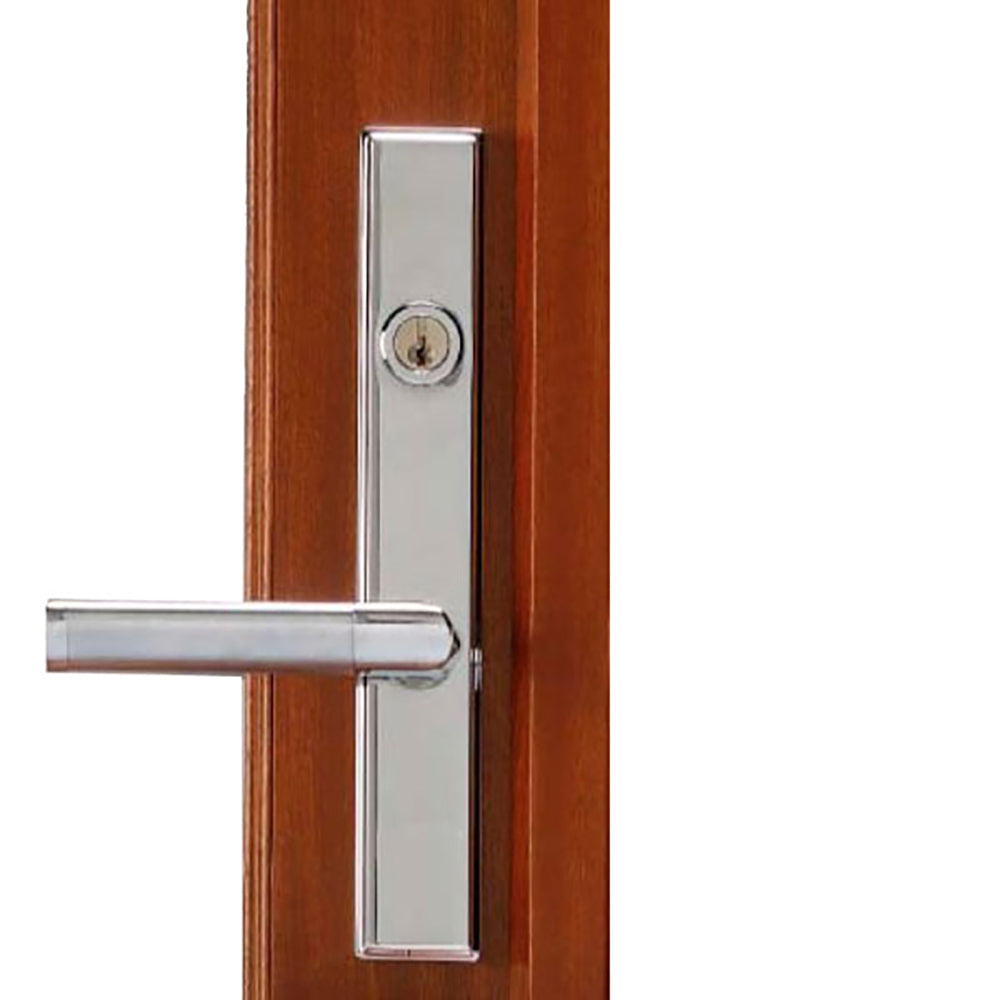

Winkhaus Active Mercury / STQ trimset with both handles, both

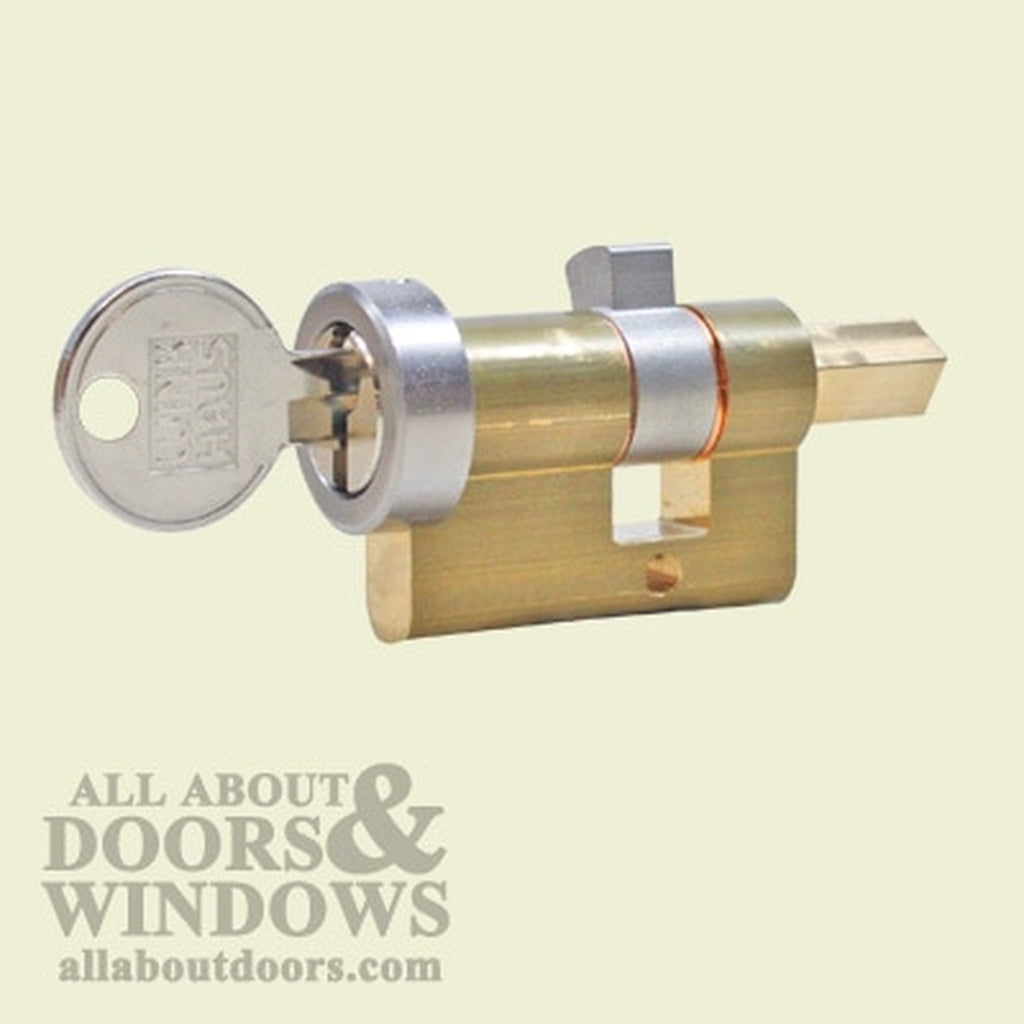

escutcheons, Euro type cylinder with keys & thumb turn in Bright Chrome

This lockset fits only the Winkhaus One-Motion Multipoint Lock (OML)

Finish:  Polished Chrome

Door Thickness: 1-3/4"

Function: Active, Keyed lock with interior thumb

Handle Design: Mercury

Backplate: Contemporary, square corners

Color / Finish: Bright Chrome

Handleset Trim Screws  spaced at  7-7/8 inch

Escutcheon Plate Screw Thread:  Metric M5 / American 10-32 will also work

Escutcheons Plates 1-5/8" x 10"

Lever Set Screw:  Metric M6

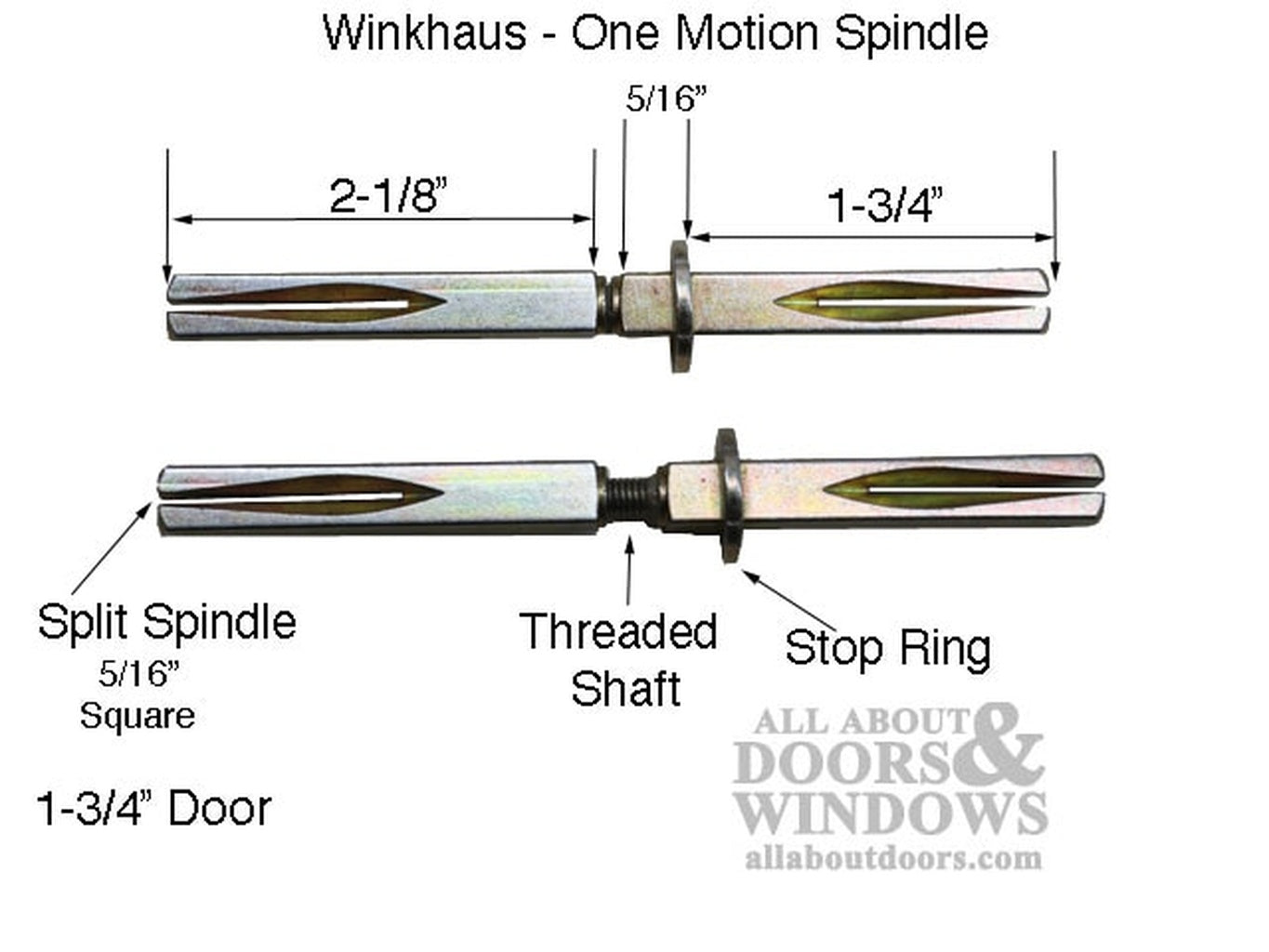

NOTE: The One Motion lock has a 2 piece spindle - this allows the inside handle to move independent of the outside. If the hardware used a solid spindle the one motion would work from the outside. Also when installing the spindle, the outside of the spindle has a washer that prevents the spindle from going in to far. this is critical for proper operation of the lock.

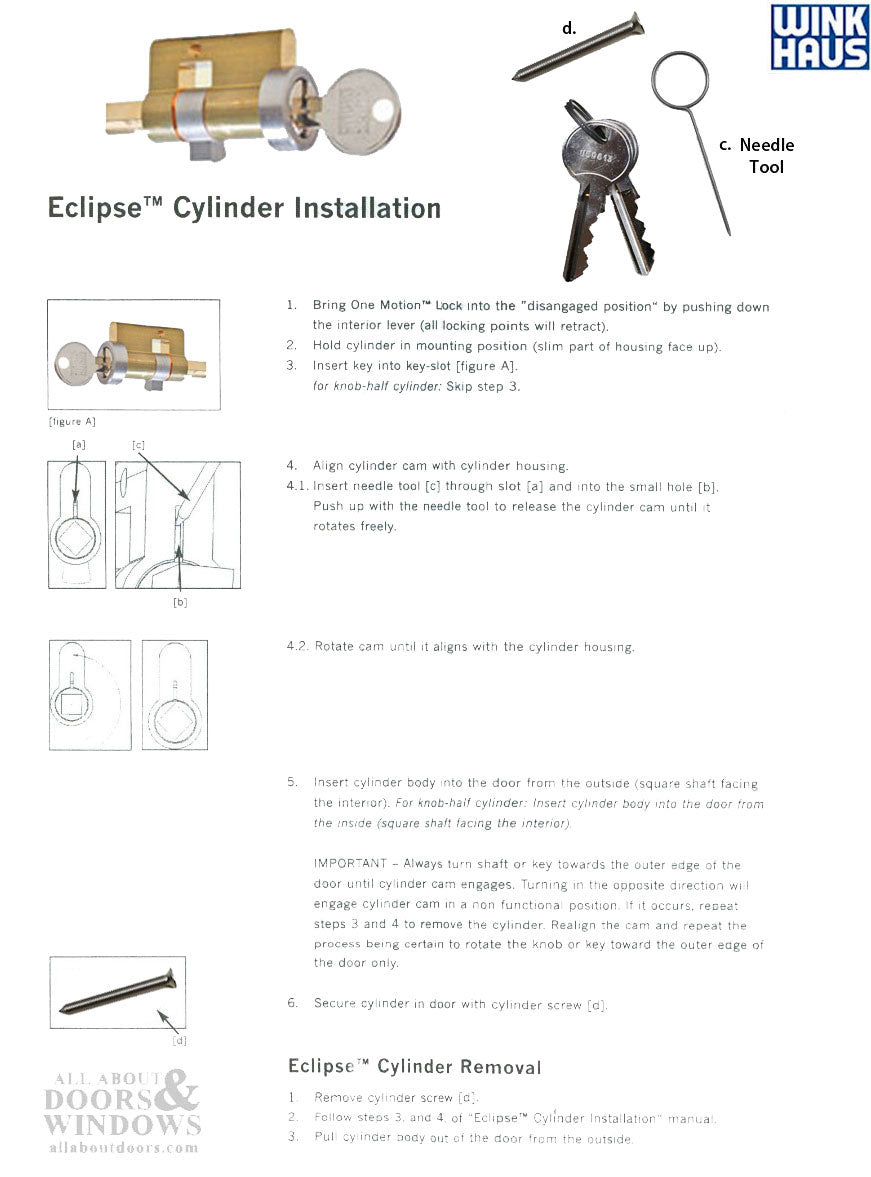

Cylinder Removal: See additional images
