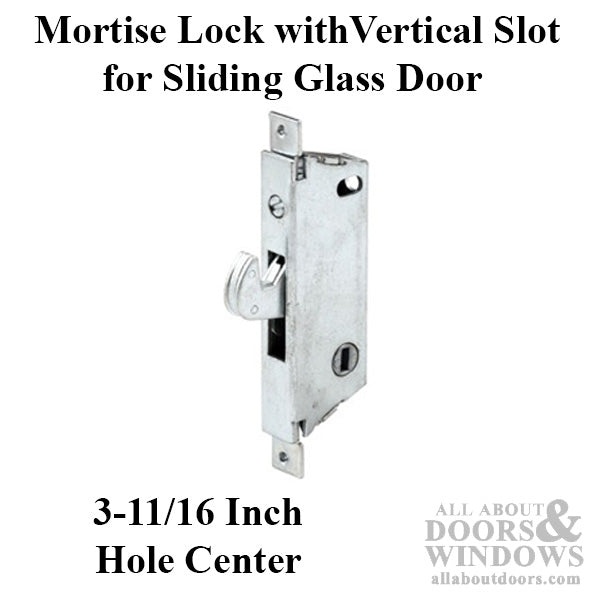

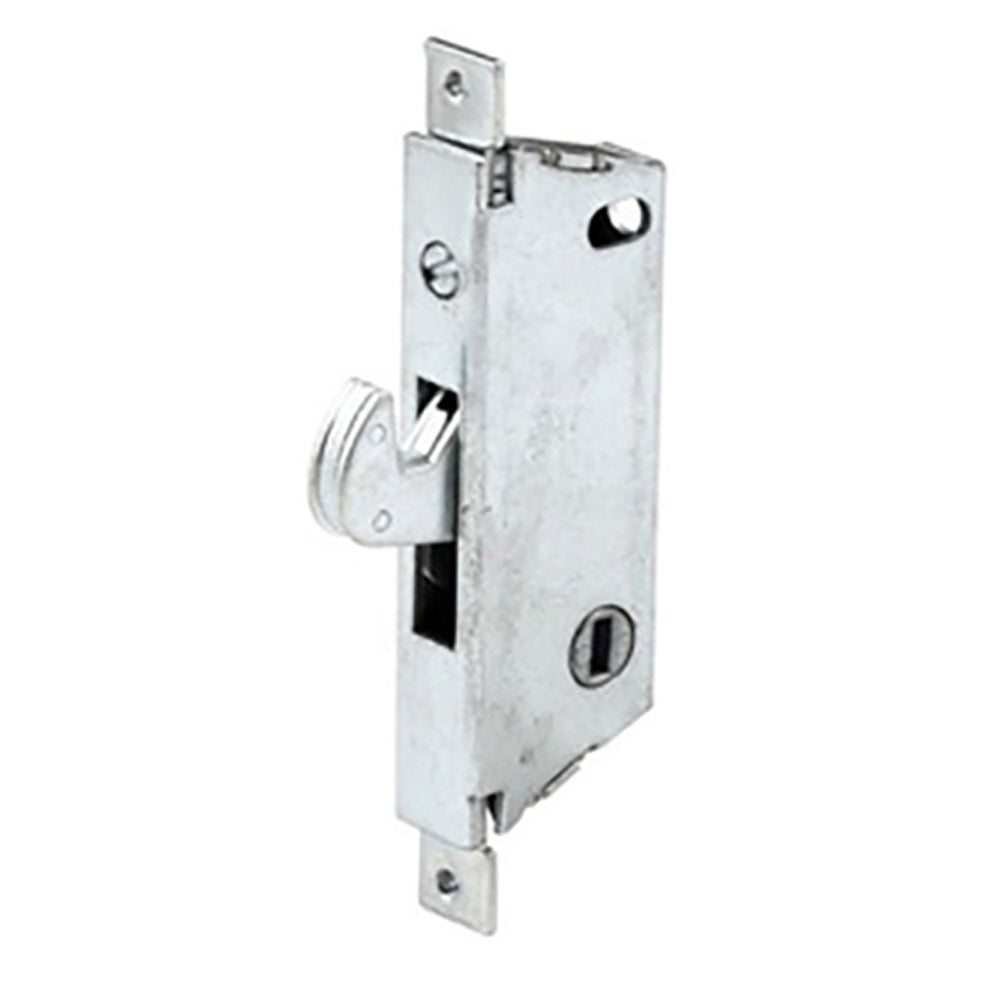

Adams Rite Mortise Lock for Sliding Patio Door with Angled body
This Lock requires a Mortise installation
The lock housing and hook are constructed out of Steel
It has a square end face plate with a Vertical slot for keyway
This design is used by door manufacturers such as Adams Rite
The Hooks projection is adjustable
Priced each, Sold each

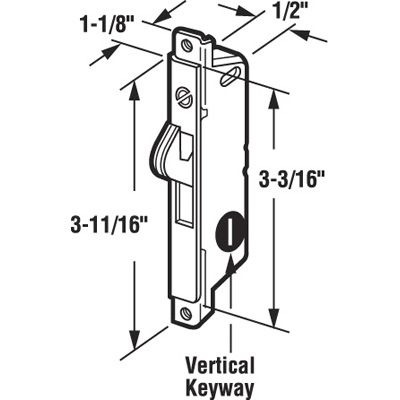

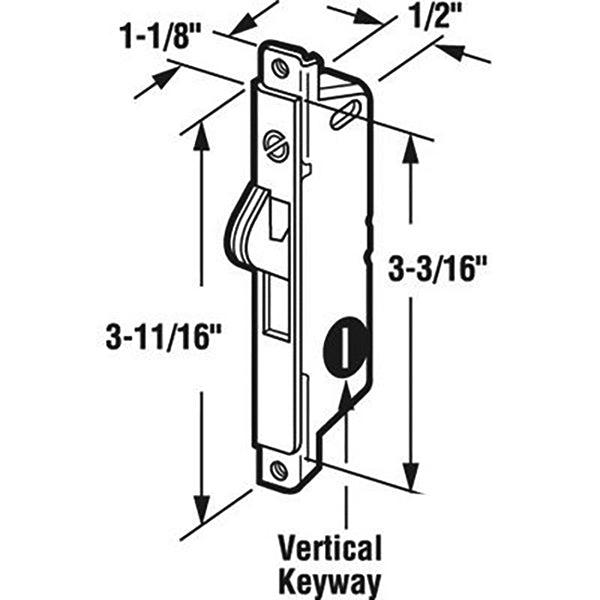

Screw Hole Center: 3-11/16-inch
Keyway: Vertical
Backset: 3/4 inch
Faceplate: Square
Contents: 1 lock

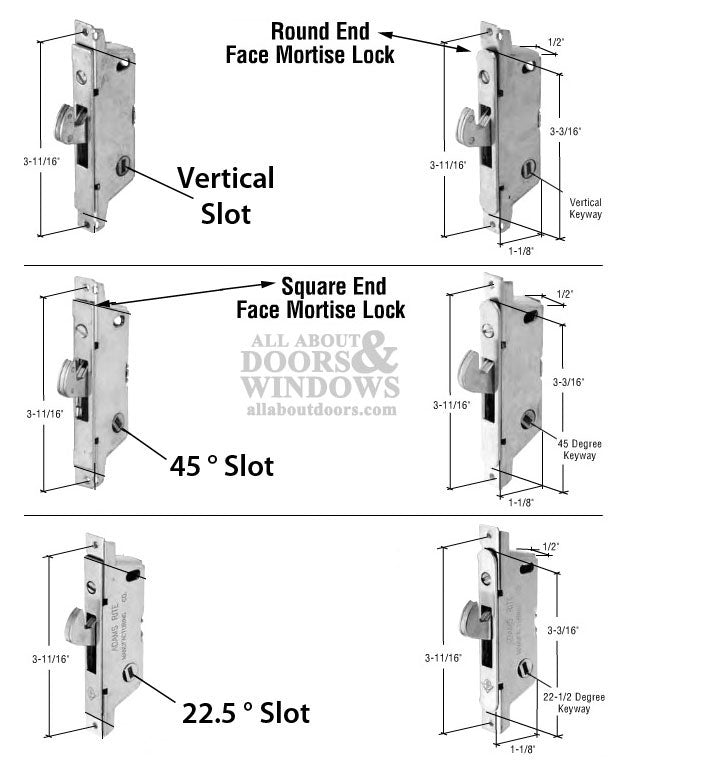

NOTE: The slot in the lock is available as 22.5 , 45 , or vertical

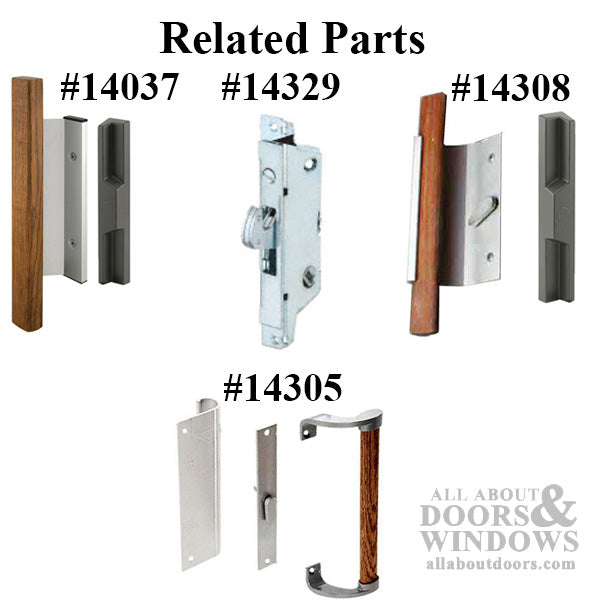

Related Adams Rite Mortise Locks:
15024 - 22.5 Slot - Round Face
15025 - 22.5 Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Round Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
