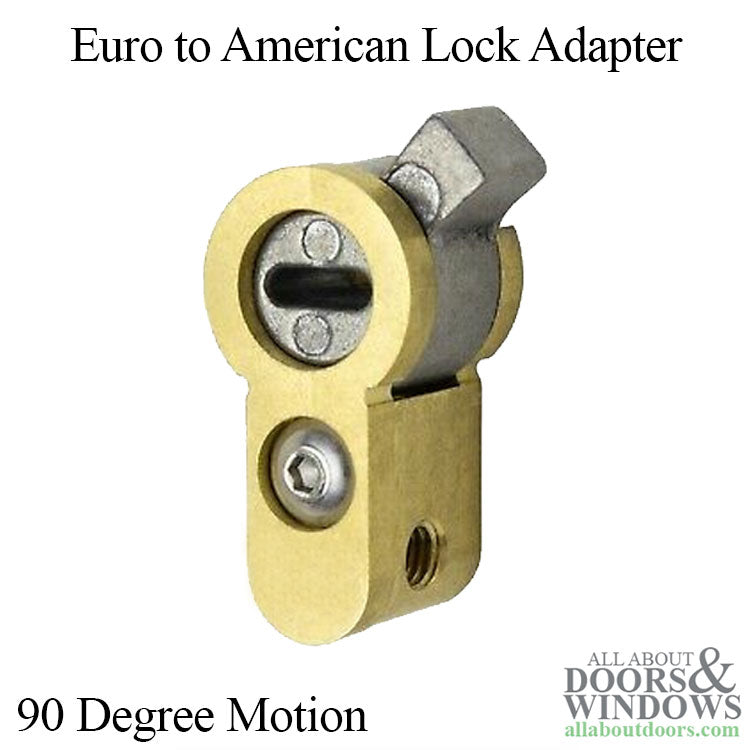

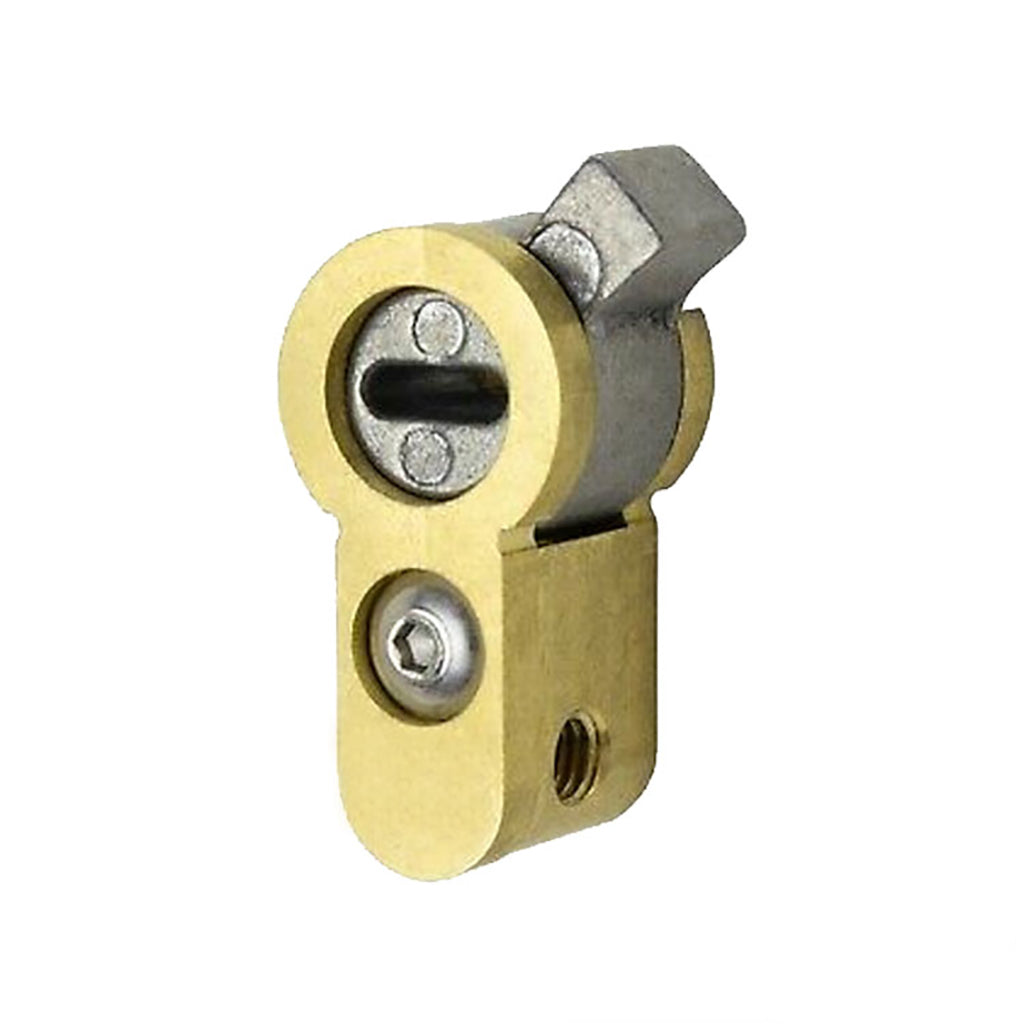

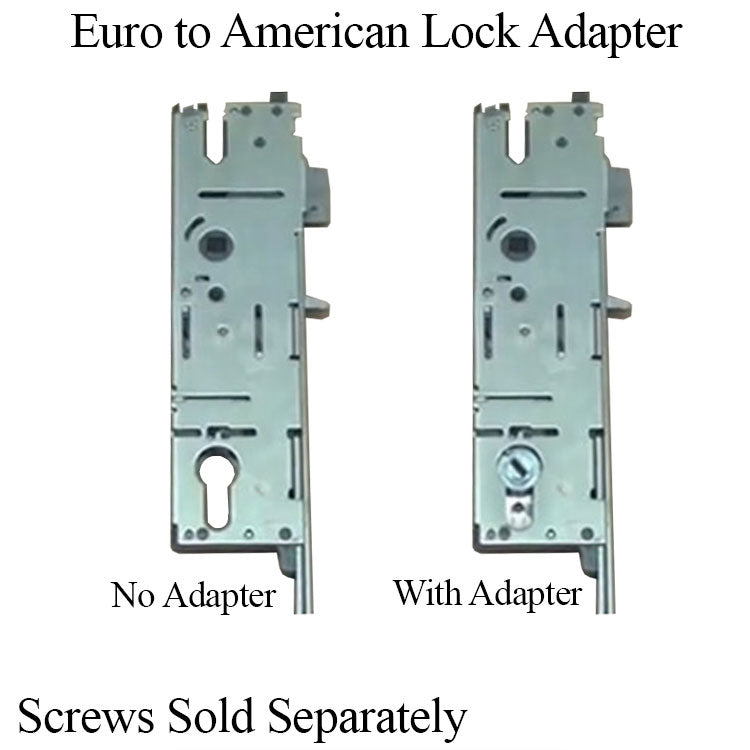

Adapter Insert - to convert Euro cylinder to American Lock.

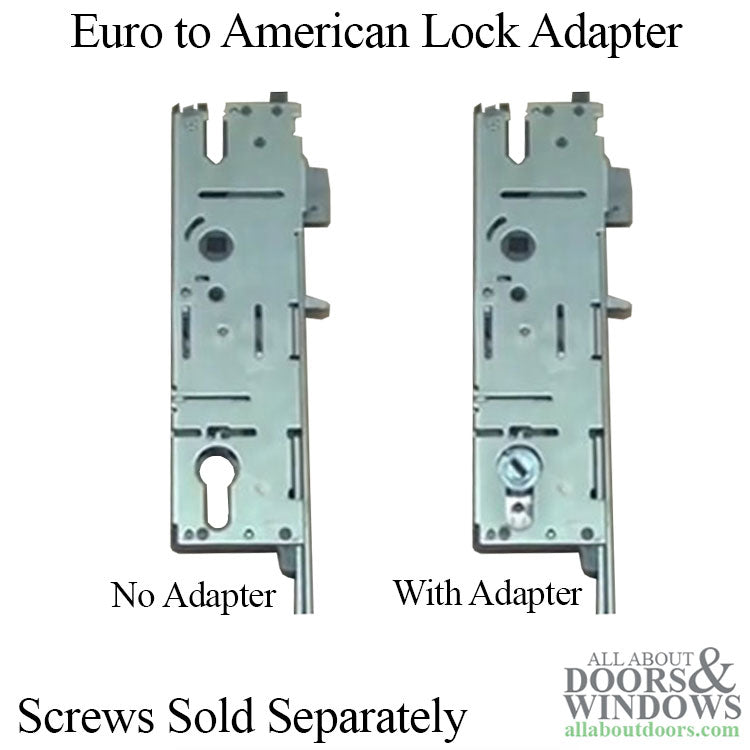

insert can be put into a euro multi-point lock where the profile cylinder fits to make it work with a American Version multi-point lock cylinder.



NOTE: SCREW NOT INCLUDED

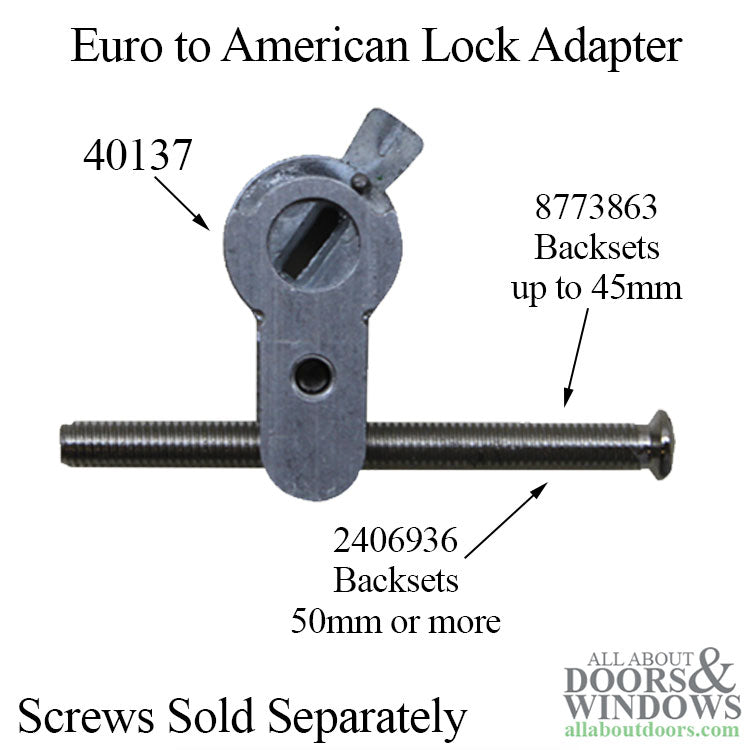

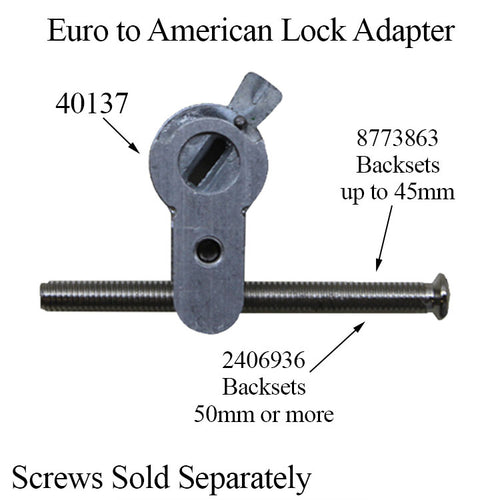

For backsets up to 45mm use screw 8773863

For backsets 50mm or more use screw 2406936



The adapter when installed converts the Euro to the action of a 90 degree thumbturn
The inside thumbturn will NOT turn 360 degress - It is designed for a 90 motion.

NOTE: This will not work on the ESSVE conversion Kit - The screws on the ESSVE handleset hits the Hoppe Lock

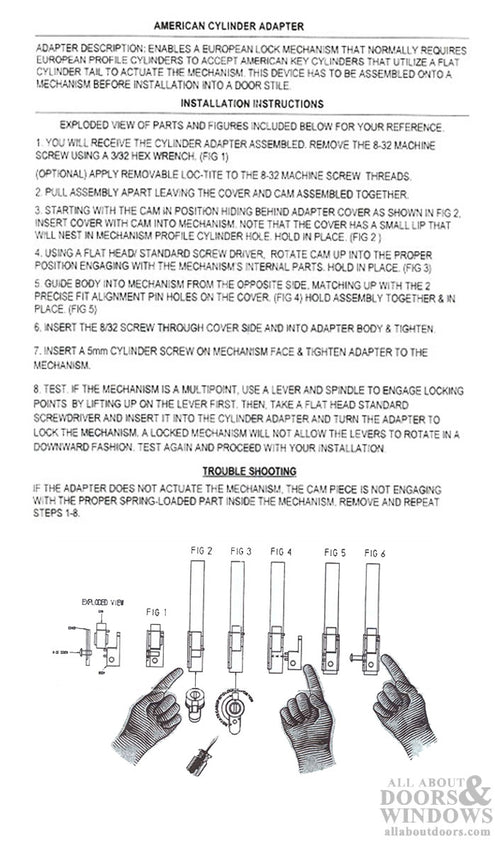

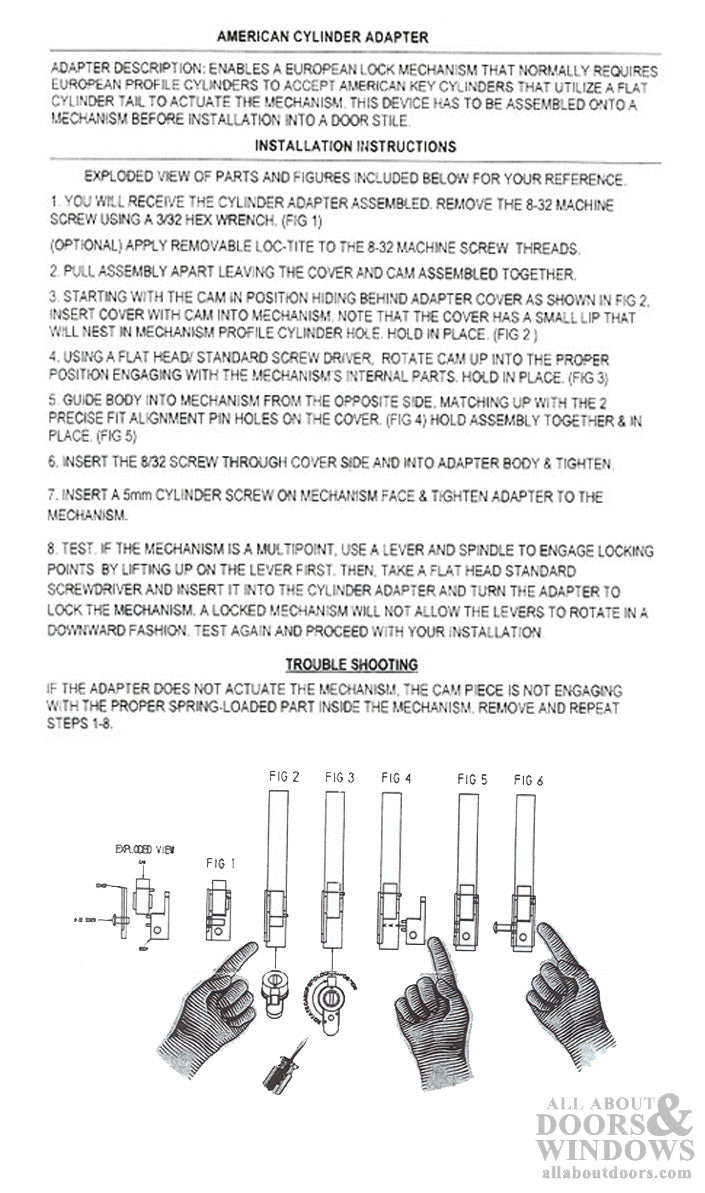

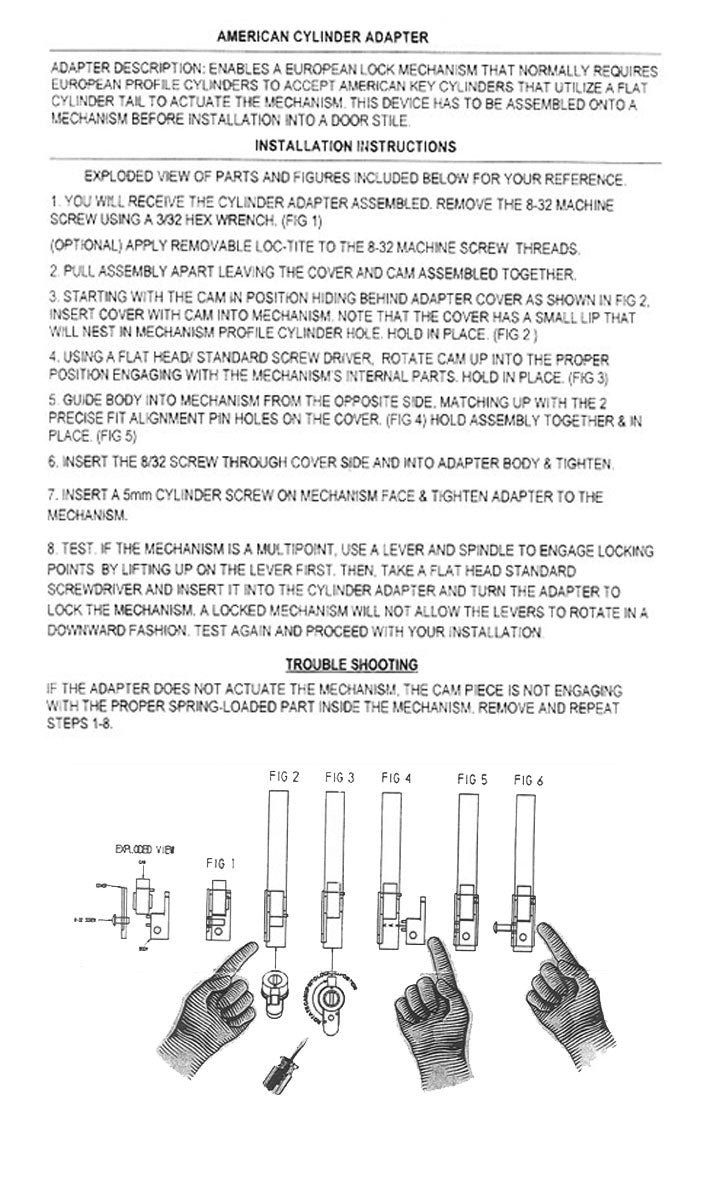

How to Install a Mortise (or Multipoint) Lock Cylinder Adapter: Euro Cylinder to American
