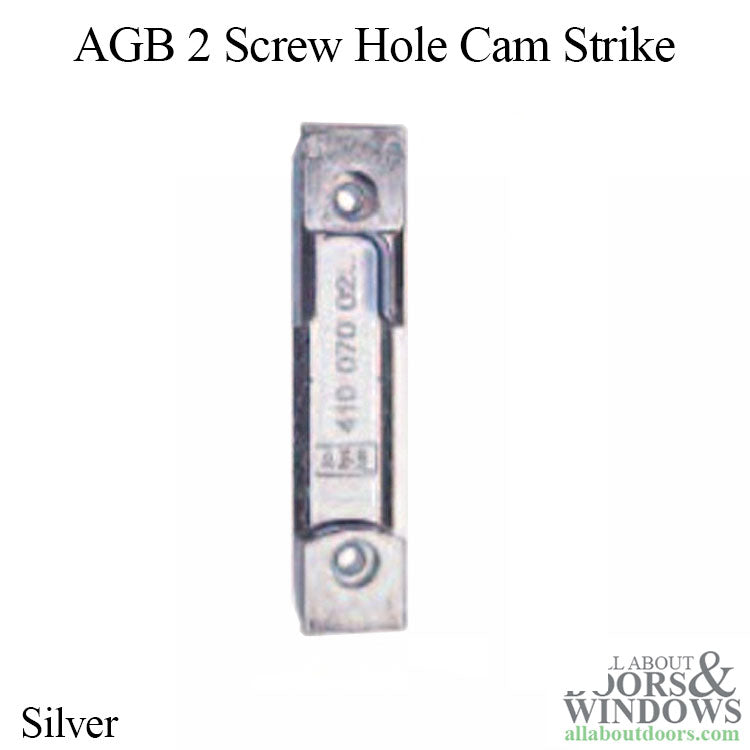

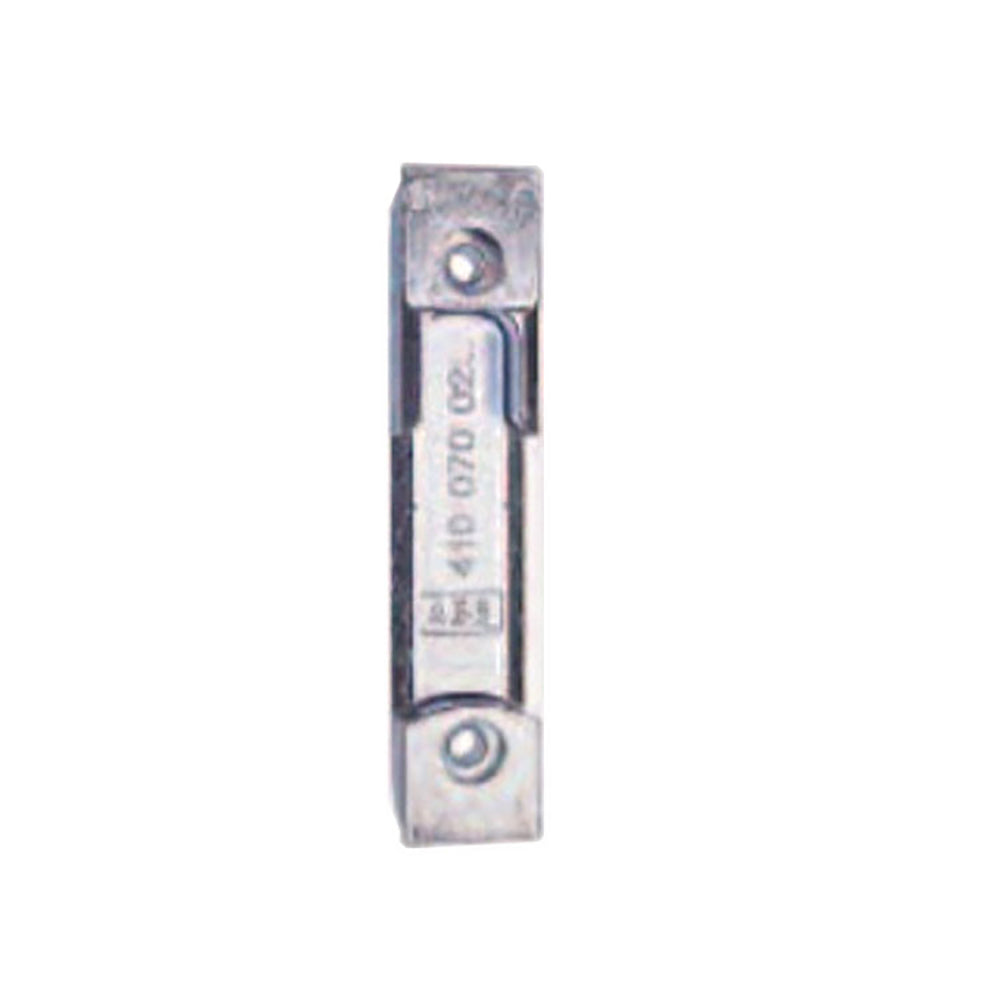

Cam Strike AG 4mm, Axis 9mm2 Screw Holes
Use the arrows or swipe left to view all images for this product
Cam Strike AG 4mm, Axis 9mm2 Screw Holes
Part Number: $1.49AGB 2 screw hole Cam Strike 4mm air gap, 9mm axis
Dimensions: 18x82x8mm
Air Gap: 4 mm / .157 inch / 5/32 inch
Axis: 9mm / .354 inch / 23/64 inch
Width: 3/4 inch (19mm)
Length: 3-3/8 inch (85.7mm)
Depth: 3/8 inch (9mm) .354 inch
Handed: No
Screw Holes: 2 spaced @ 2-7/16 inch
Color: Silver, the only color available
Markings on Strike: AGB 410 070 02
Note:
Gap is the space between the door and the jamb.
Axis is the depth of the euro groove
Dimensions: 18x82x8mm
Air Gap: 4 mm / .157 inch / 5/32 inch
Axis: 9mm / .354 inch / 23/64 inch
Width: 3/4 inch (19mm)
Length: 3-3/8 inch (85.7mm)
Depth: 3/8 inch (9mm) .354 inch
Handed: No
Screw Holes: 2 spaced @ 2-7/16 inch
Color: Silver, the only color available
Markings on Strike: AGB 410 070 02
Note:
Gap is the space between the door and the jamb.
Axis is the depth of the euro groove
