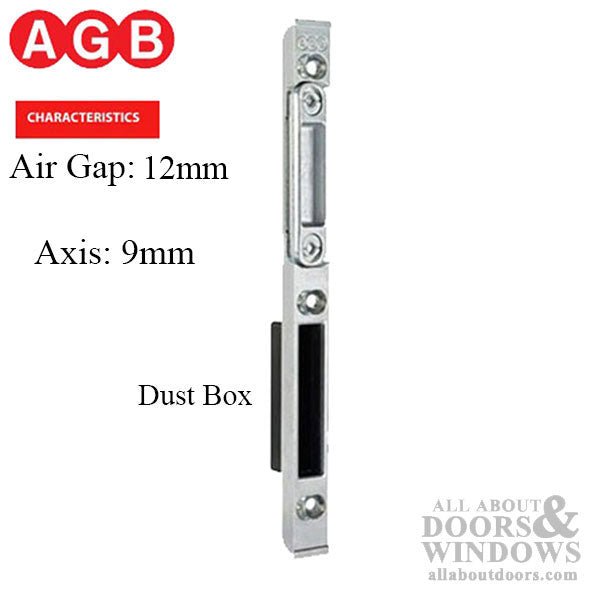

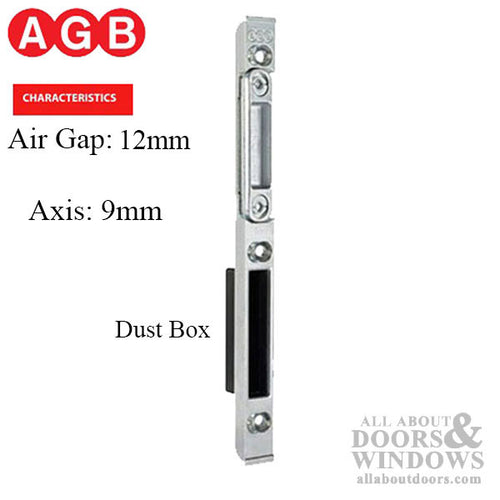

AGB Surface Mount Lock Strike Plate with Dust box

AGB  Surface Mount Lock Strike Plate w/ Dust box  and spacers

Brand: AGB
Application: Strike Plate
Air Gap  12mm  0.472 ( uses black plastic spacer )
Axis: 9mm, .354 inch
Material: Steel
Color: Silver
Markings: 0 056 9504

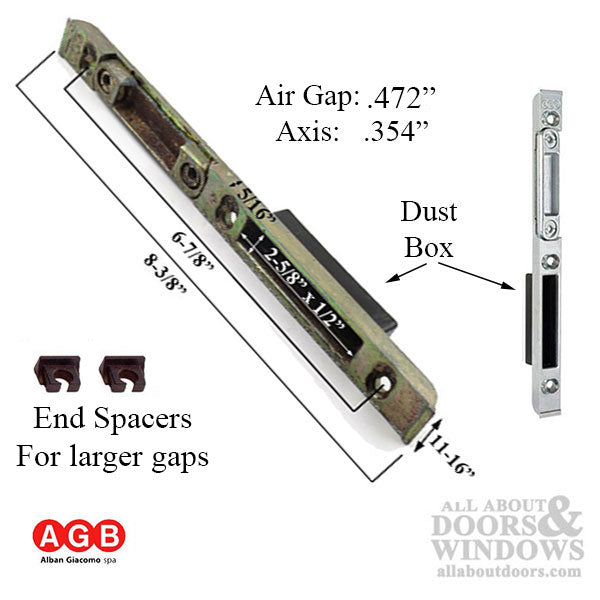

Thickness: 5/16 inch (8mm)
Width: 11/16
Length: 8-3/8 inch
Screw holes: 6-7/8 inch
Dust Cover - Black , part number  0 040 9543
Strike Plate, Part Number:   0 056 9504
The Hex / Allen adjustment screw with allow horizontal strike adjustment

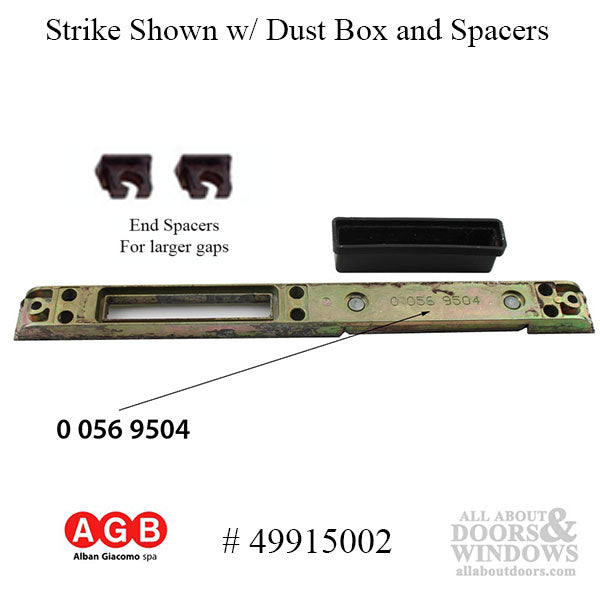

2 - Black Spacers to change from 4mm to 12mm thickness for larger gaps

Gap: 12 mm
Axis: 9 mm

Note:
Gap is the space between the door and the jamb.
Axis  is the depth of the euro grove so you know if a dust box will fit.
