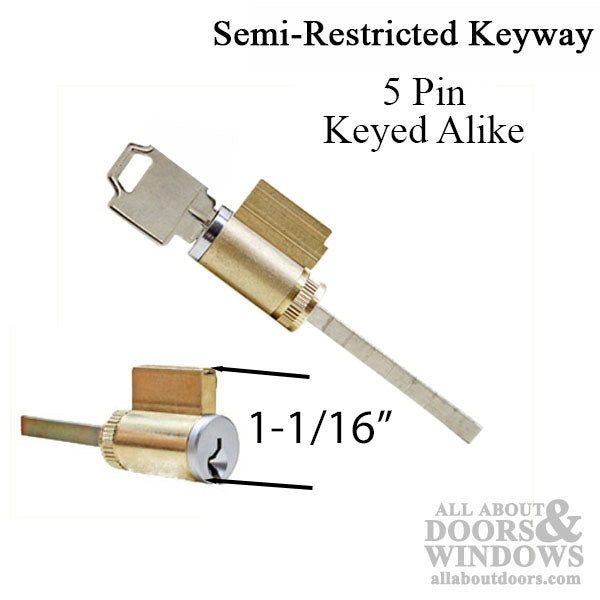

NOTE: Semi-Restricted Keyway. This cylinder has Changed - It will not accept standard  Weiser or Kwikset  keys. The keyway is the same profile but thinner and keyblanks are not readily available from hardware stores or locksmiths.

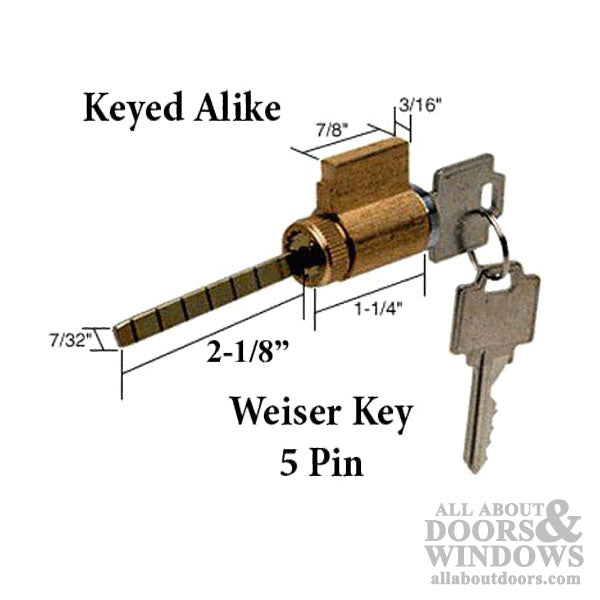

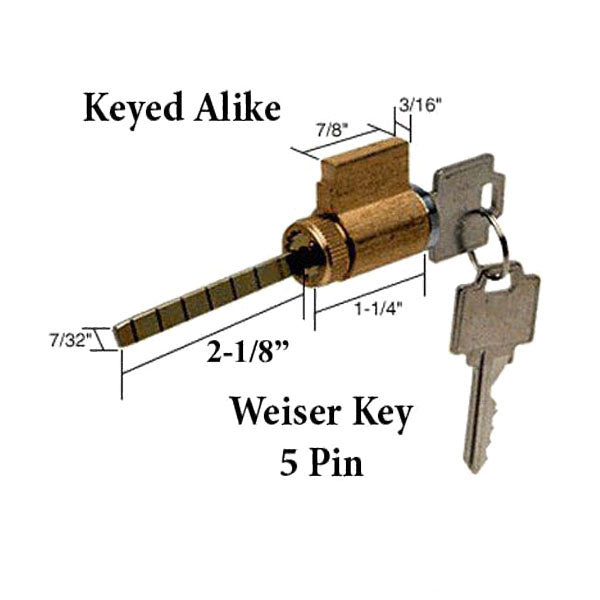

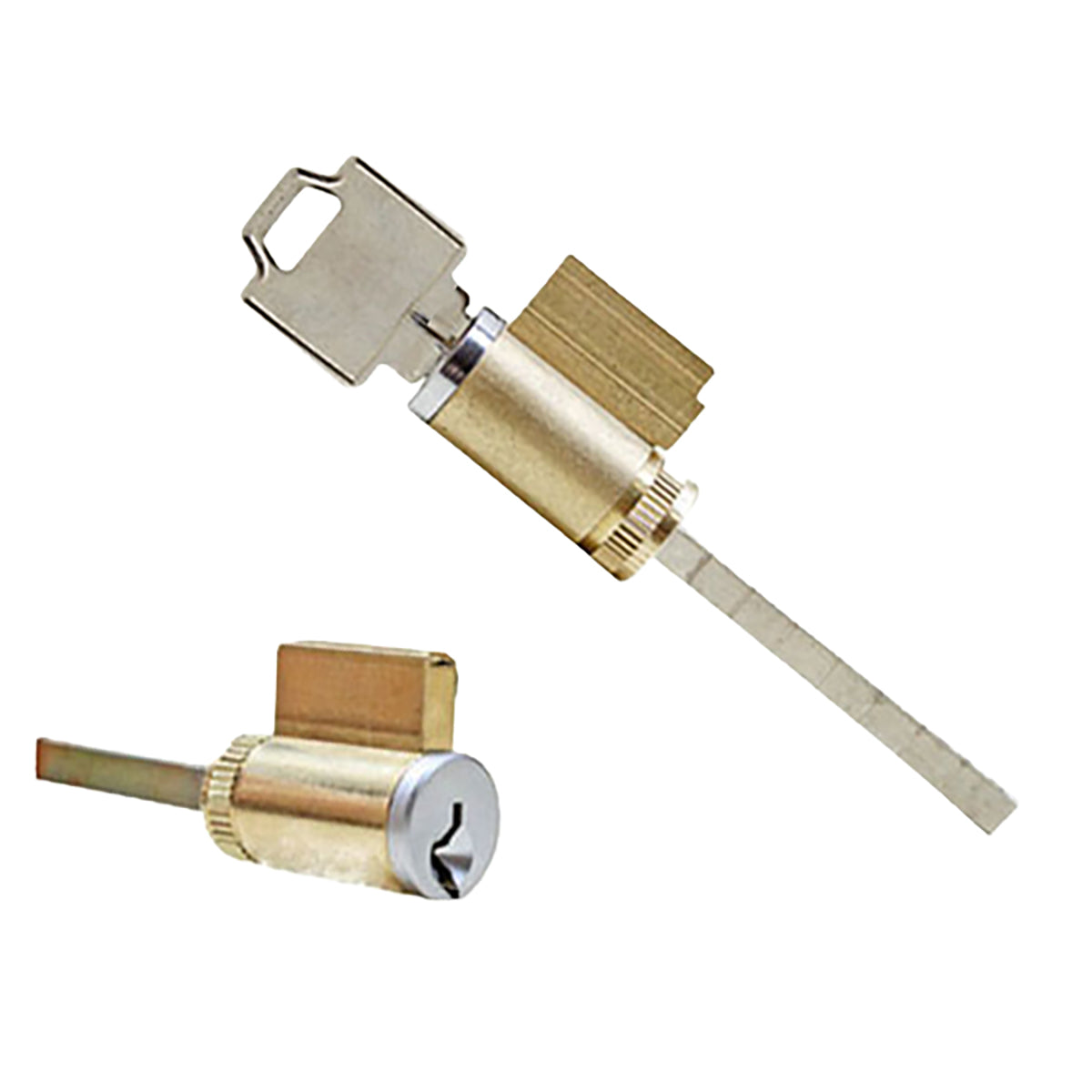

American Rekeyable cylinder 5 pin lock for sliding glass door - Keyed Alike.

Sliding glass door key lock cylinder consists of 1-1/4 inch tumbler lock with hardened break away tailpiece and 2 keys.

This cylinder type will work to key lock most surface mount handle sets.
It is the most common keyed cylinder used with deadbolt, single and multipoint locks. Such as Andersen, Peachtree, Pease and others.

Keyway will work with Amesbury handlesets and can be used with some other brands of handlesets, Except Pella

NOTE: If needing additional keys, we have them available.  See: 1430-BLANK WEI

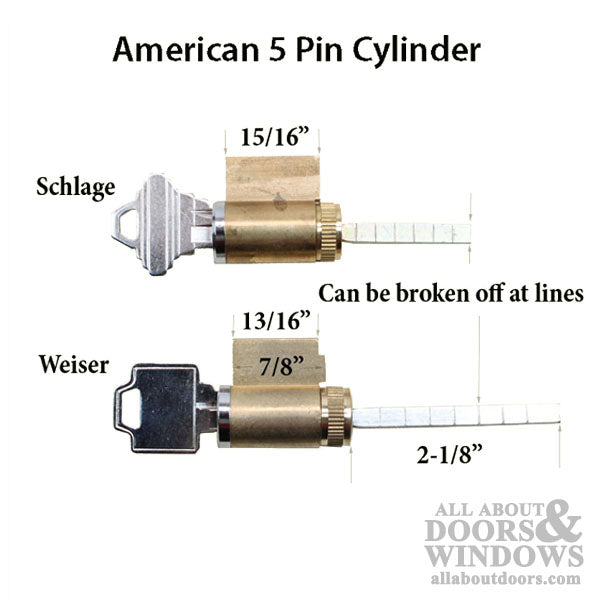

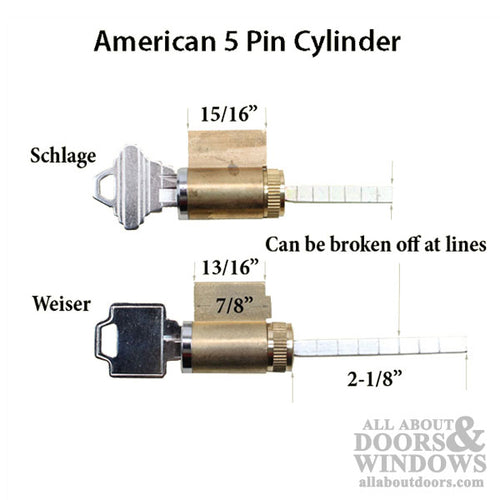

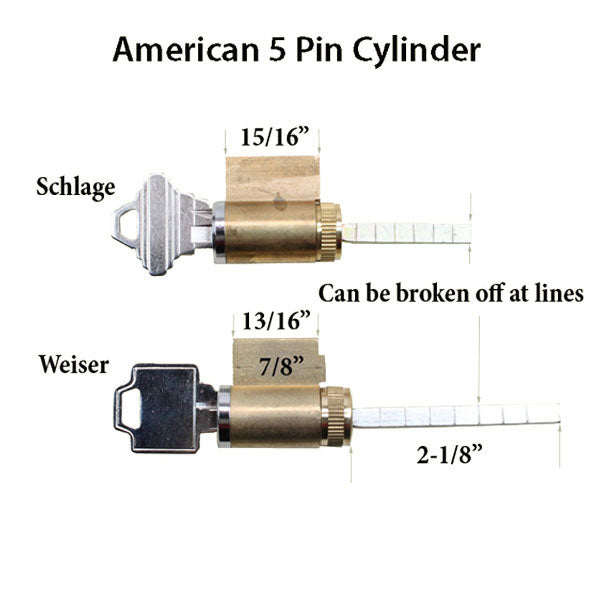

Please note that Schlage cylinder housing is 1/32 inch longer and does not have a notch in the back.
The extra length may be too long and require some filing.
Be sure to check measurements before ordering your lock cylinder to insure you get the correct cylinder.

Keyway:  Semi-Restricted,  Rekeyable to 1430-BLANK WEI
Keying: Keyed Alike
Tail Piece Length: 2-1/8 Inch
Door Thickness: Up to 1-3/4 Inch

Contents: 1 Key Lock for Sliding Glass Door and 2 Keys

Keyed door locks priced and sold each.

Related Parts:
Cylinder clip: 15010
