This item is considered blemished and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.

Blemished items are priced accordingly and are sold as-is.

No returns, refunds or exchanges.

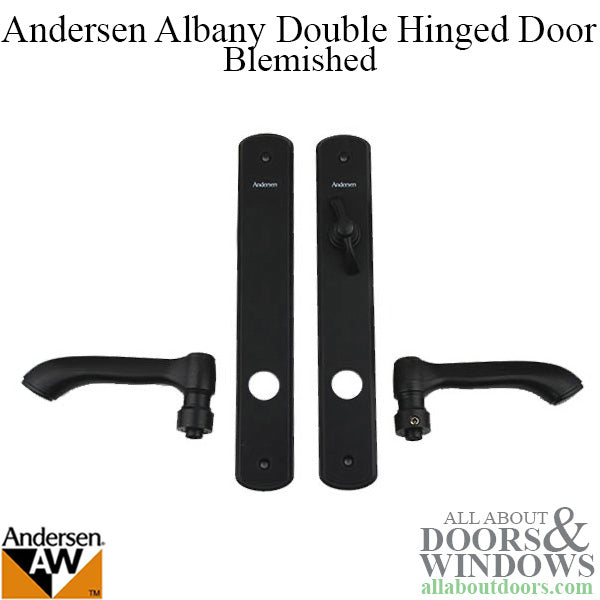

Andersen Albany Style Hinged Door Hardware

Double Active/Passive - Black

Works with 400 Series Frenchwood hinged (in-swing and out-swing) patio doors manufactured from 1988–present.

Andersen hinged patio door hardware set is for a (double active) hinged door in which two doors will open.

Works on active and passive door panels.

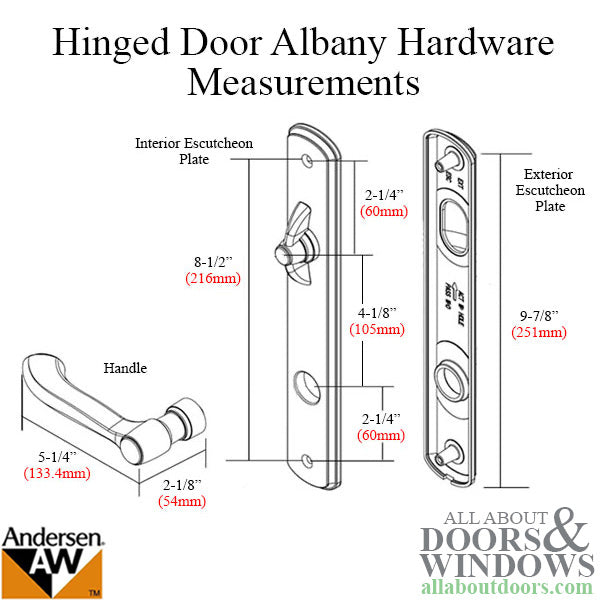

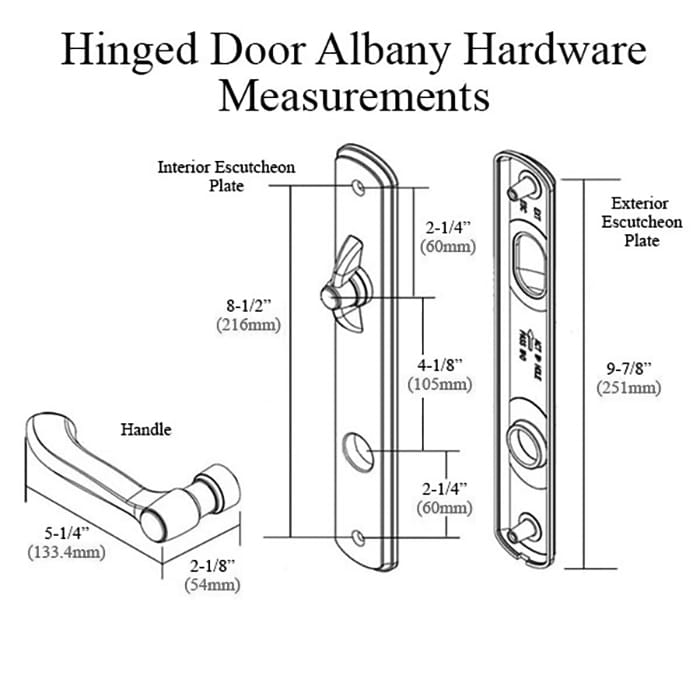

Measurements:

• Color/Finish:  Black
• Plate Width:  1-5/8 inch (41.25 mm)
• Plate Length:  10 inch (254 mm)
• Handle Neck/Depth:  2-1/8 inch (54 mm)
• Handle Length:  5-1/4 inch (133.4 mm)
• PZ (Distance from center-of-cylinder to center-of-spindle):  4-1/8 inch (105 mm)
• Top screw hole to center-of-cylinder:  2-1/4 inch (57 mm)
• Bottom screw hole to center-of-spindle:  2-1/4 inch (57 mm)
• Top screw hole to bottom screw hole:  8-1/2 inch (219 mm)

Complete hardware trim set includes:

• Inside and outside handles
• Inside and outside escutcheon plates
• Inside thumb latch lock
• Mounting studs
• Mounting bolts
• Gasket
• Spindle
• Set screws
• Bushings
• Installation instructions.

Note: Exterior Keyed Lock 9007623 is sold separately. (Lock/unlock the door from outside with a key)

Guide: How to replace an Andersen dummy cylinder with a keyed cylinder.
