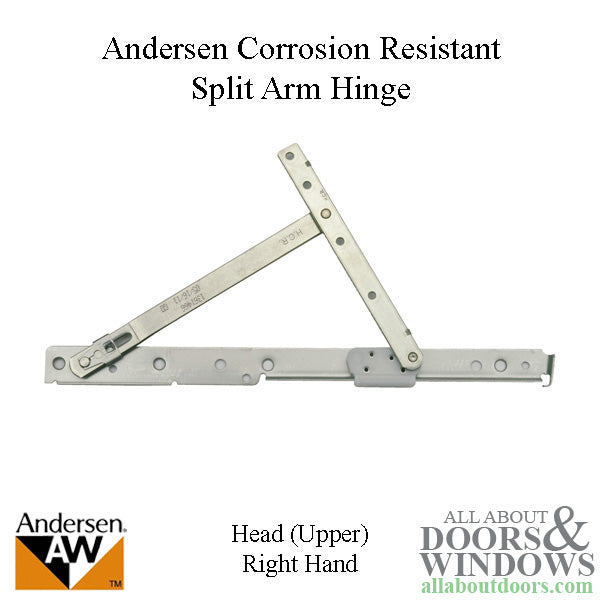

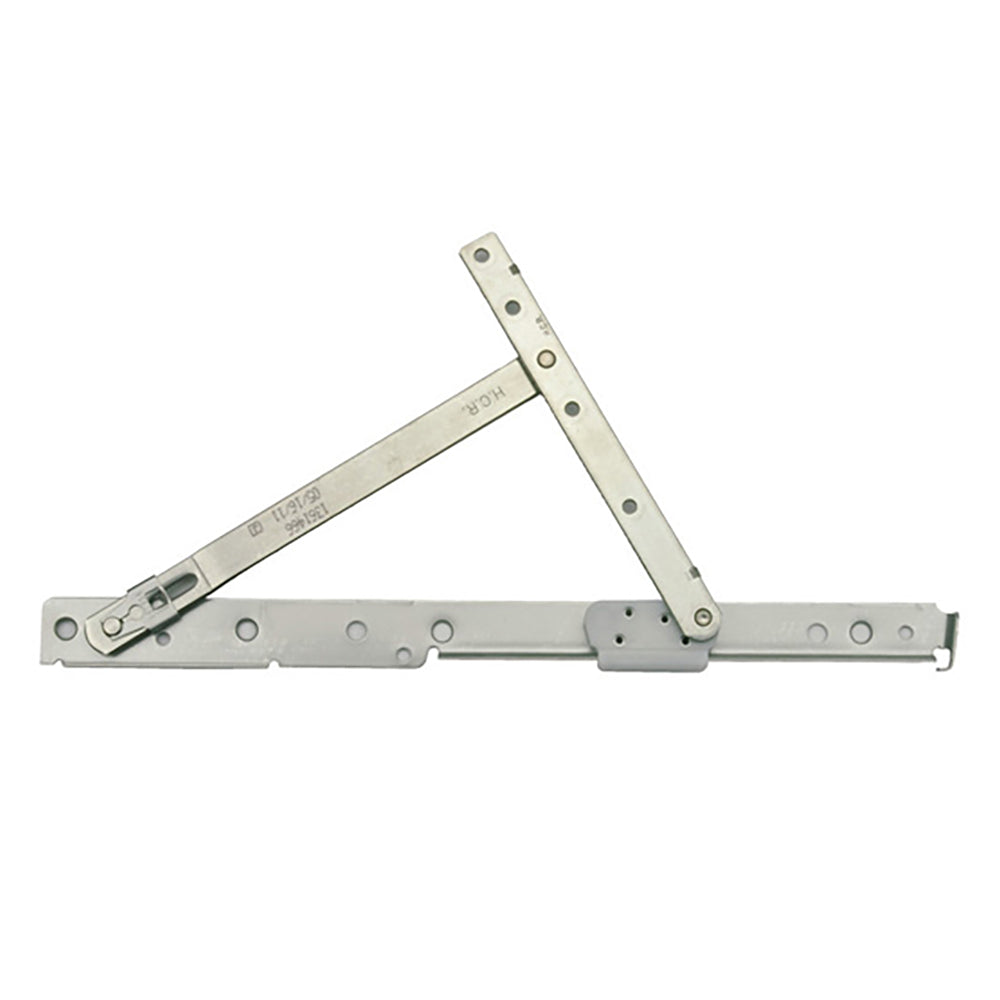

Andersen Awning/Casement Corrosion Resistant Right-Hand Split-Arm Head Hinge

Part Number: 1361466 Price: $68.18
Andersen right-handed split arm head (upper) hinge with screws for Andersen Perma-Shield casement and awning windows: CR, CN, C, CW, CX25 - CX6, and CXW2 - CXW45 - All awning sizes 1967 - present (Excluding A335/AX31).

This hinge is corrosion-resistant and is made with high-quality stainless steel, which is ideal for harsh and corrosive environment applications such as heavy industrial or coastal areas.

Handing: Right handed; when viewing window from outside the home, the hinge will be located on the right side.
Window Opening Size: 20"

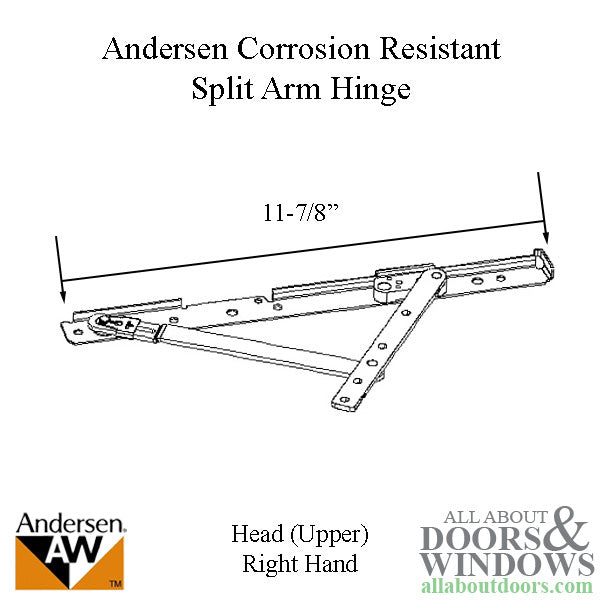

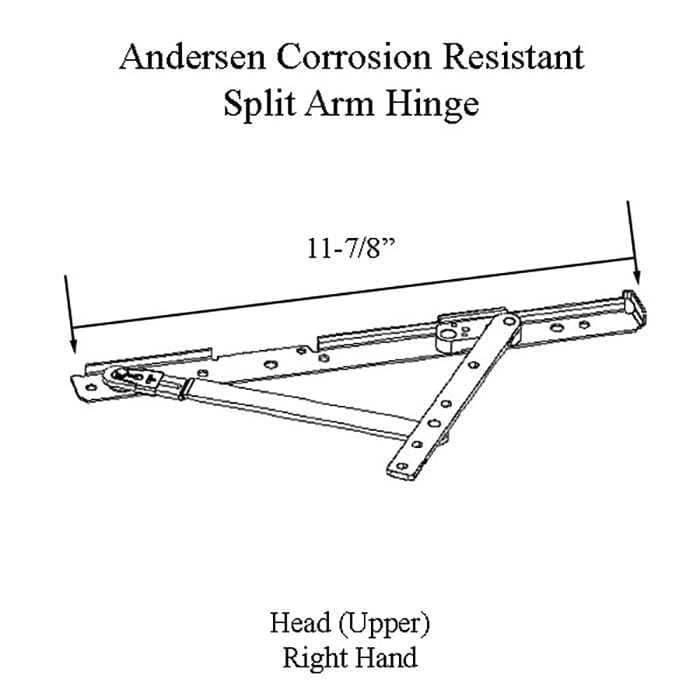

Track length: 11-7/8"
Hinge arm length: 6-9/32"

NOTE: These parts require the Hinge Replacement/Conversion Instruction Guide from Andersen. View instruction guide or watch video here.

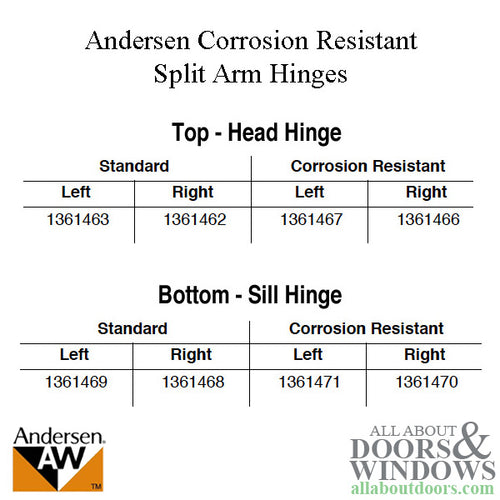

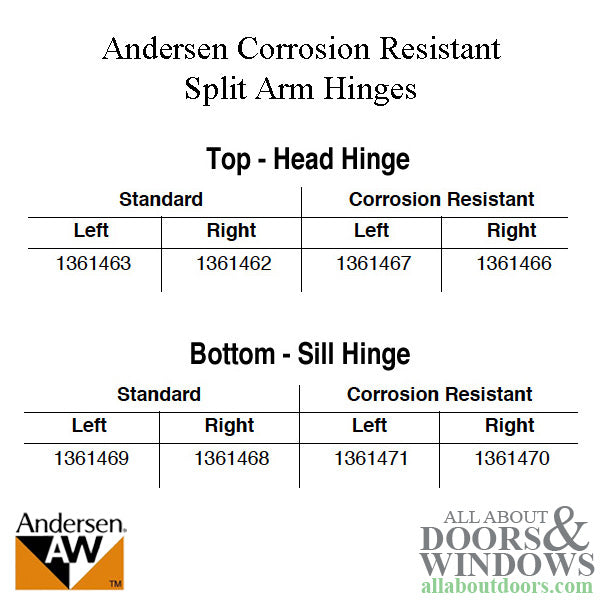

Related Parts:

Head (Upper) Hinges:
1361463 - Left Head, Standard
1361462 - Right Head, Standard
1361467- Left Head, Corrosion Resistant
1361466 - Right Head, Corrosion Resistant

Sill (Lower) Hinges:
1361469 - Left Sill, Standard
1361468 - Right Sill, Standard
1361471 - Left Sill, Corrosion Resistant
1361470 - Right Sill, Corrosion Resistant
