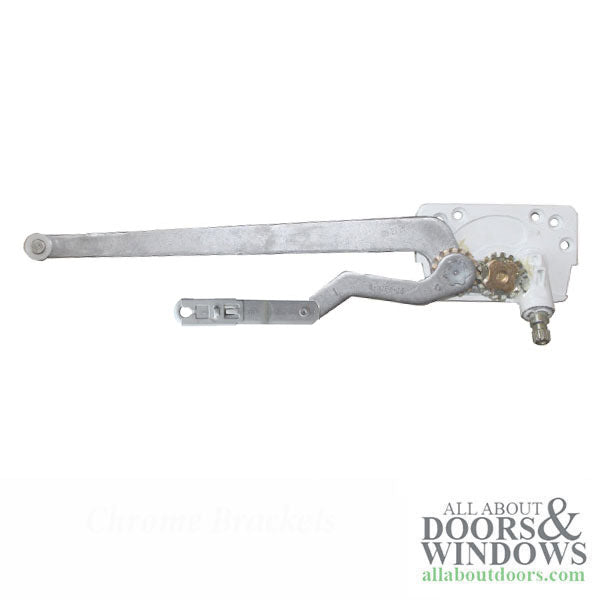

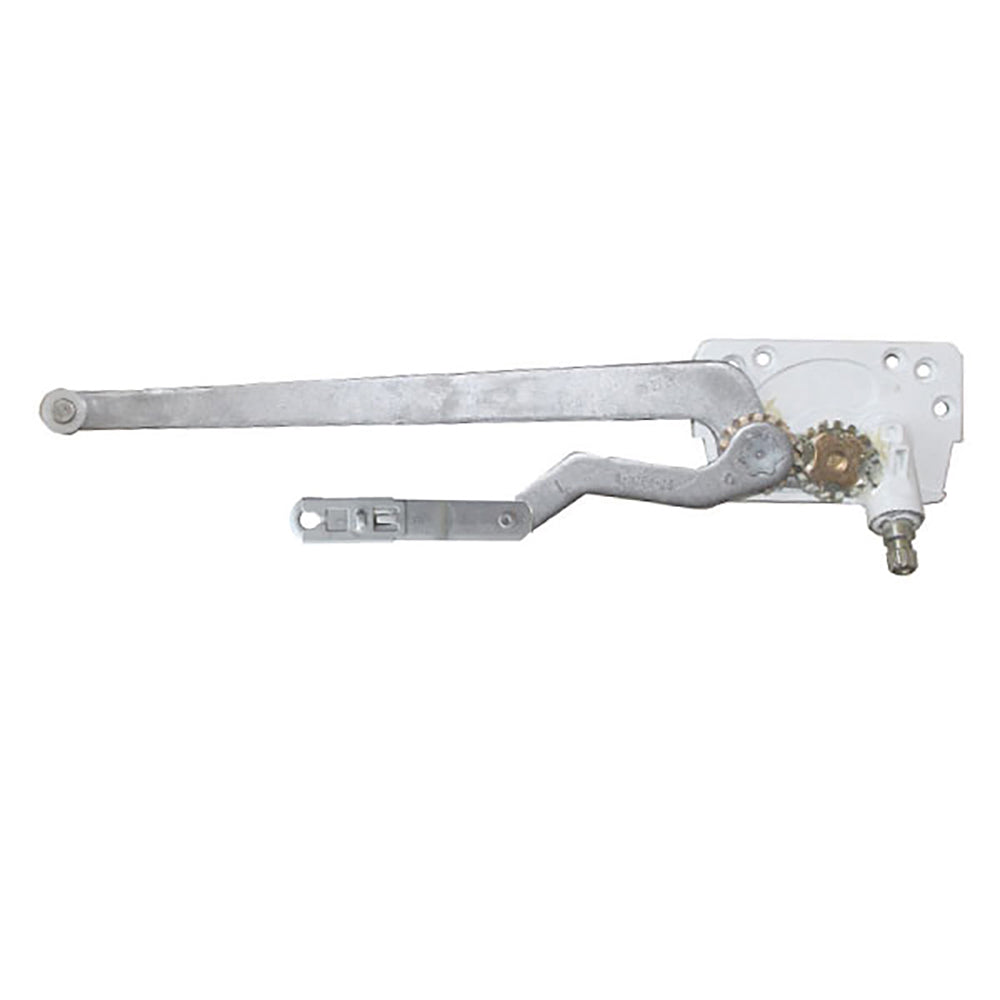

Andersen, Eagle E-Series Casement Egress Operator, for window frame units wider than 20 inch
Windows larger than 21" wide use Dual Arm Operator
Windows up to 21" wide use Split Arm Operator
Egress opening windows, larger than 20", may require use of Dual arm with shorter 2-7/8 link

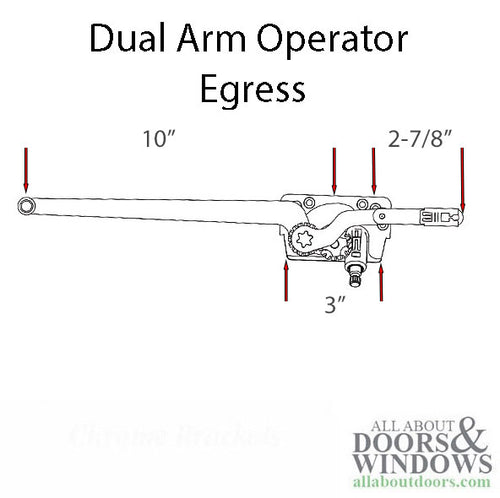

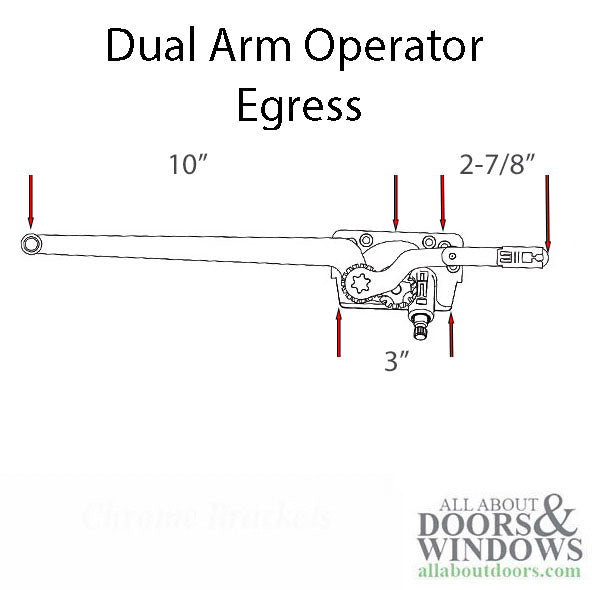

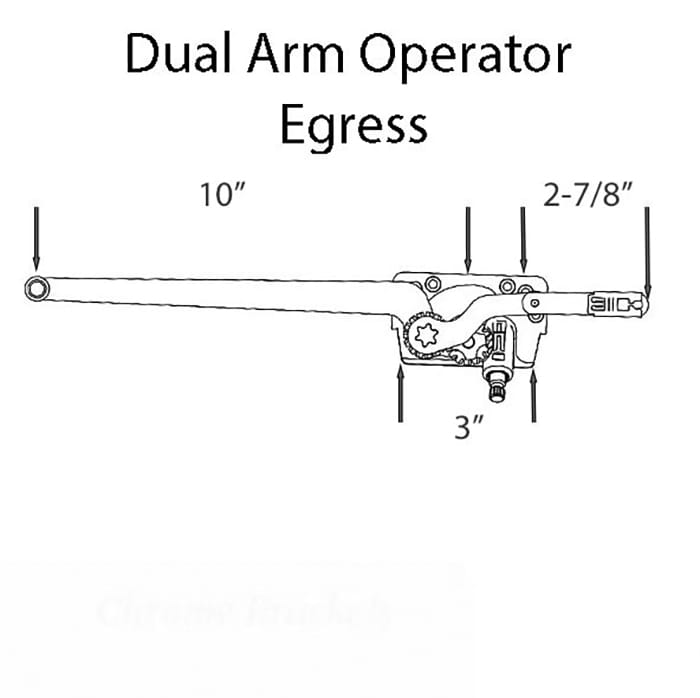

Operator Type: Dual Arm
Long Arm Length: 10-1/2 inches; center of operator to center of button
Short Arm Link 2-7/8 inch with detach clip
Arm Type: Dual Arm - Straight Arm, No Offset, Split arm with Link
Roller Material: Nylon
Roller Size: 9/16 Diameter; 3/16 thick
Handed: Yes, As Shown
Markings:
Base C-1081-201
Straight Arm S-1081-202
Short Arm S-1081-03 R

Egress Note:
Egress windows are designed to be used in casement window applications to achieve approximately 90º of opening. When fully open the sash is positioned close to the side jamb to allow an average sized person the ability to escape through the window’s opening in case of an emergency as required by Egress codes.

Related Andersen Hardware
0007646 Egress Dual Arm Operator Left Hand
0007647 Egress Dual Arm Operator Right Hand
0007648 Egress Dual Arm Operator Bracket LH
0007649 Egress Dual Arm Operator Bracket RH
0007672 Egress Dual Arm Operator Track
0013396 #8 x 1˝ PFH SM Screw
