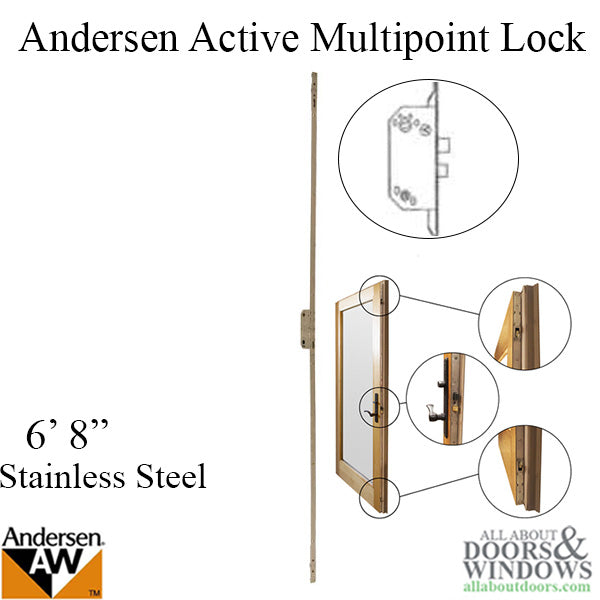

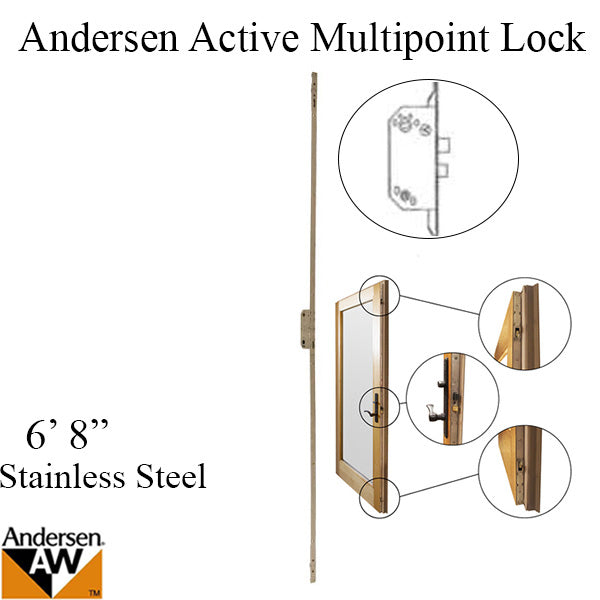

Andersen Active Multipoint Lock for 6 Foot 8 Inch Frenchwood Hinged Door

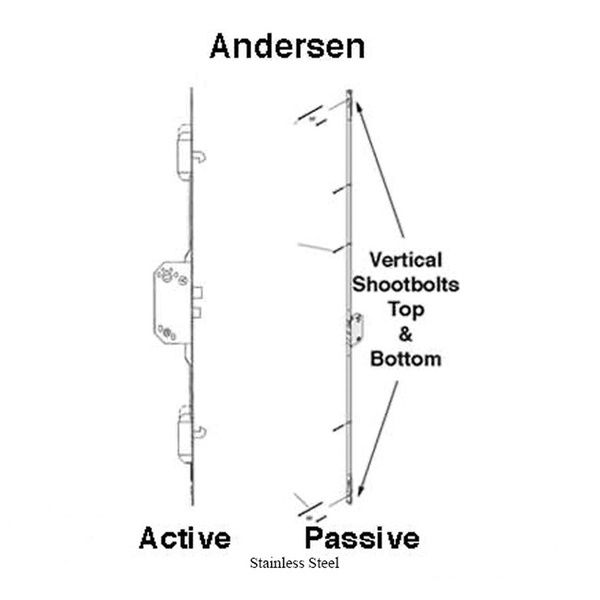

Andersen ACTIVE 3- Point Lock Mechanism.
Frenchwood Hinged Patio Door with locking hooks at top and bottom
Stainless Steel
This 3-point lock fits Andersen 6 foot 8 inch tall Frenchwood Hinged Doors built from 1988 - present.
Overall Length: 76-1/2 inch
Faceplate Width: 7/8 Inch.
Backset: 2 inch
Handle Spacing (PZ): 4-3/16
Center of Deadbolt to Center of Spring latch: 1-3/8 inch
Handle Height: 36-1/8 inch

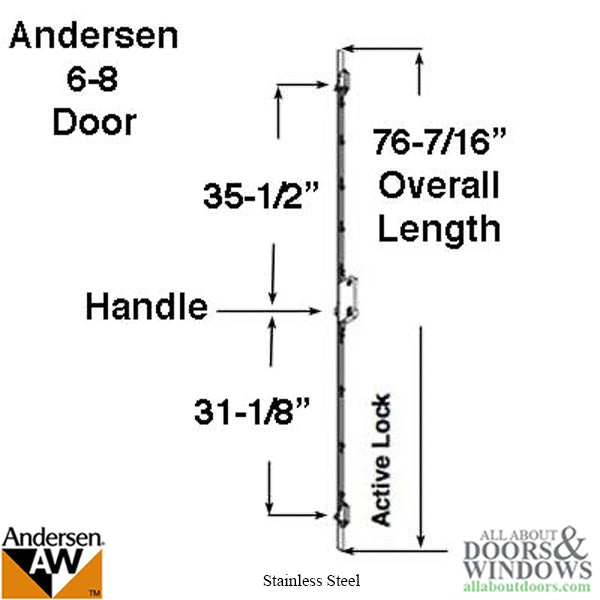

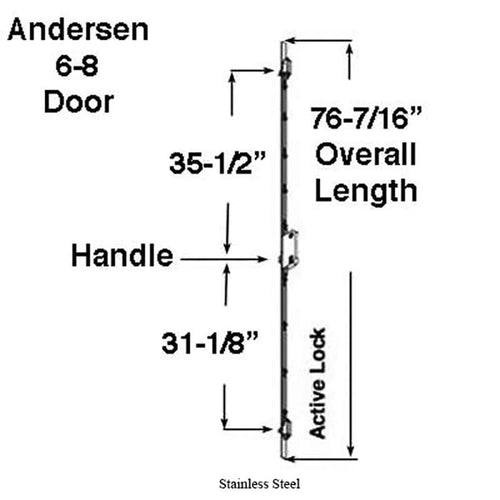

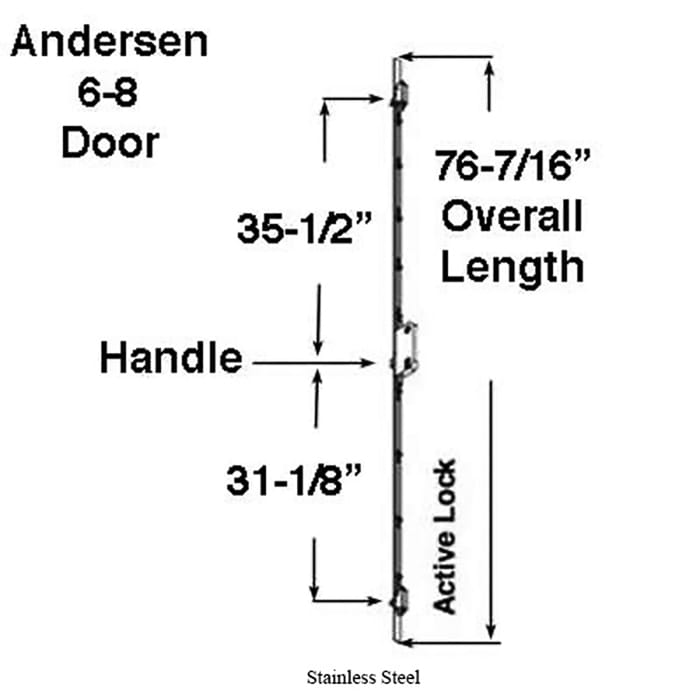

Bottom Hook Location: 31-1/8 Inches (center of handle to center of hook)
Top Hook Location: 35-1/2 inches - (center of Handle to center of hook)
Please see additional information tab for resources and videos.

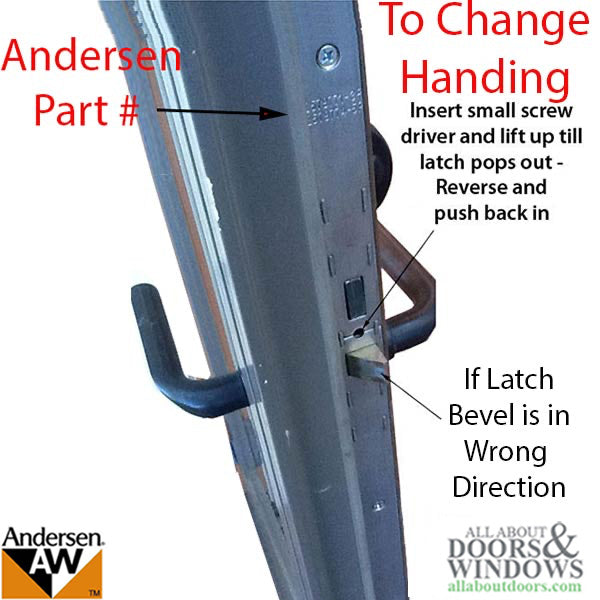

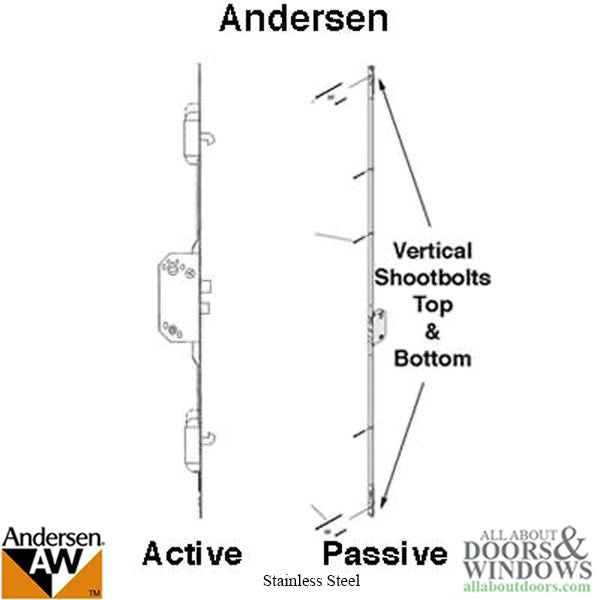

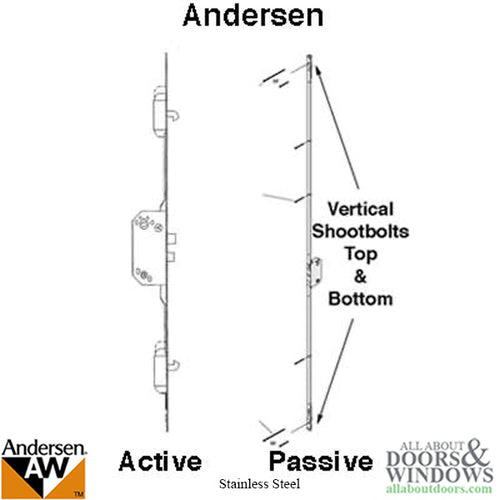

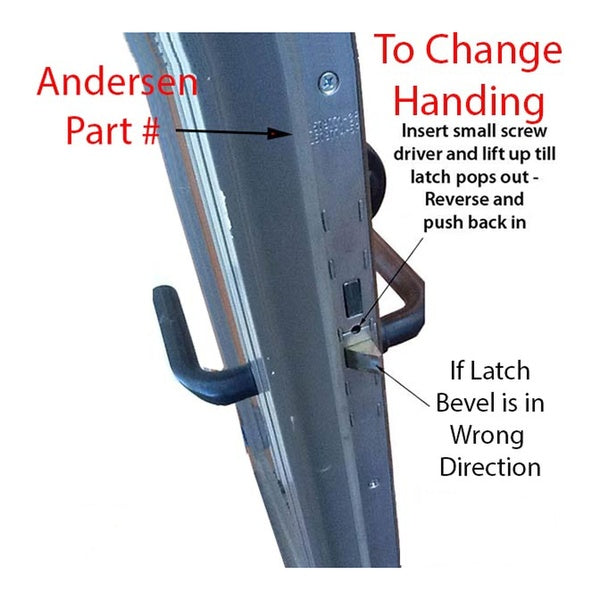

<p><span style="font-size:18px;"><strong>Note:</strong> Andersen Frenchwood hinged doors have 4 heights</span><br /><span style="font-size:18px;">6-8 door panel = 76-7/16 </span><br /><span style="font-size:18px;">6-11 door panel = 79-3/8</span><br /><span style="font-size:18px;">7-6 door panel = 86-7/16</span><br /><span style="font-size:18px;">8-0 door panel = 93-1/2</span><br /><br /><span style="font-size:18px;">Most Andersen patio door locks have a 7 digit part number on the face platePlease note: your lock may have more than one number stamped onto it followed by a 3P or 5P, which indicates the number of locking points. If your lock has both 2579771 and 2579774 stamped into the faceplate, please be sure to check whether your lock has shootbolts (locking bolts that go into the floor and the top of the door frame). If it DOES, you need part </span><a href="http://www.allaboutdoors.com/Andersen-Stormwatch-5-Point-Lock-AP-PA-FWH68-Door" target="_blank"><span style="font-size:18px;">2579774</span></a><br /><br /><span style="font-size:18px;">Related Andersen Multi-point locks - Frenchwood Hinged 6-8 Door</span><br /><span style="font-size:18px;">2579771 - 6-8 Active New Style (the listing you're currently on)</span><br /><a href="http://www.allaboutdoors.com/Andersen-Multipoint-Lock-FWH68-Passive-Stainless" target="_blank"><span style="font-size:18px;">2579777</span></a><span style="font-size:18px;">- 6-8 Passive New Style</span><br /><a href="http://www.allaboutdoors.com/Andersen-Multipoint-Lock-FWH68-Active-Door-Gold-Face-Disc" target="_blank"><span style="font-size:18px;">2579512</span></a><span style="font-size:18px;">- 6-8 Active Old Style </span><br /><a href="http://www.allaboutdoors.com/Products/Andersen-Multipoint-Locks/Andersen-Multipoint-Lock-FWH68-Passive-Gold-Faceplate-Dis" target="_blank"><span style="font-size:18px;">2579527</span></a><span style="font-size:18px;">- 6-8 Passive Old Style </span><br /><br /><span style="font-size:18px;"><strong>NOTE:</strong></span><br /><span style="font-size:18px;">This Andersen patio door lock is interchangeable with the older zinc dichromate (gold colored) Active Models. </span><br /><br /><span style="font-size:18px;"><strong>Resources: </strong></span><br /><span style="font-size:18px;">Article:<strong> </strong></span><a href="https://www.allaboutdoors.com/Article-How-to-Rehand-Flip-the-Latch-of-an-Andersen-Multipoint-Lock" target="_blank"><span style="font-size:18px;">How to Change Handing of Andersen Multipoint Locks</span></a><br /><span style="font-size:18px;">Manufacturer's Guide:<strong> </strong></span><a href="http://www.allaboutdoors.com/Articles/Doors-and-Their-Hardware/Andersen-Frenchwood-Hinged-and-Outswing-Multipoint-Lock-Replacement" target="_blank"><span style="font-size:18px;">How to Replace an a Multipoint Lock in an Andersen Door</span></a><br /><br /><span style="font-size:18px;"><strong>To Reverse Latch Handing:</strong></span><br /><span style="font-size:18px;">1. Insert small screw driver into round hole between latch and deadbolt.</span><br /><span style="font-size:18px;">2. Push down on screw driver to release latch</span><br /><span style="font-size:18px;">3. Rotate latch and push back into lock</span><br /><br />Rehanding an Andersen Multipoint Lock<br /> <iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/nu1RoQttYbg" title="YouTube video player" width="360"></iframe></p>
