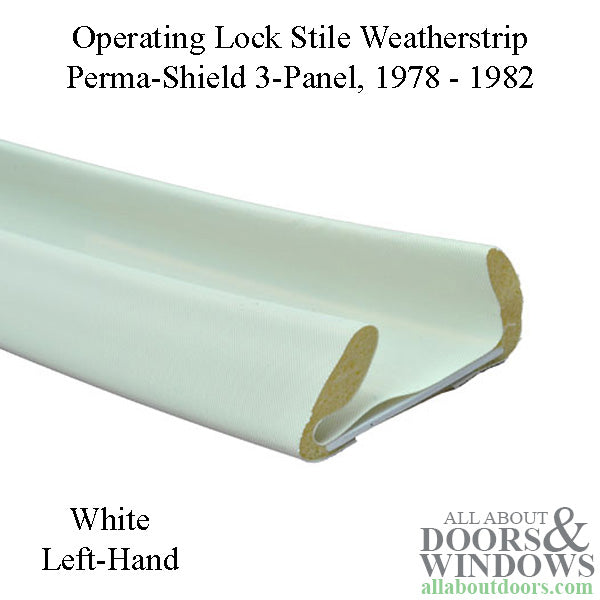

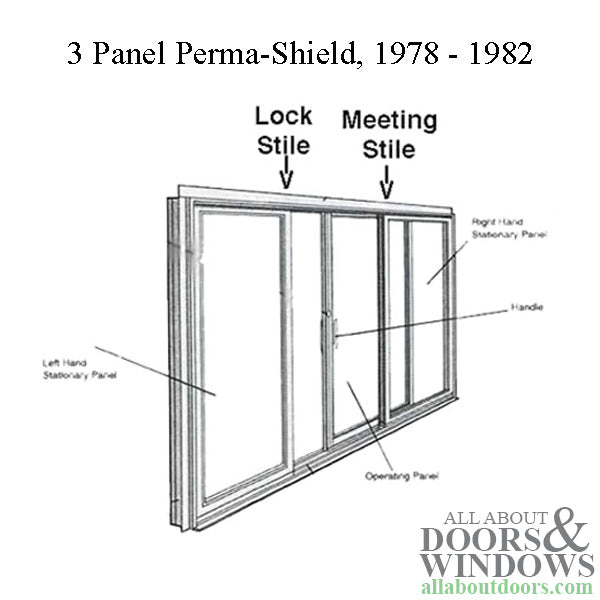

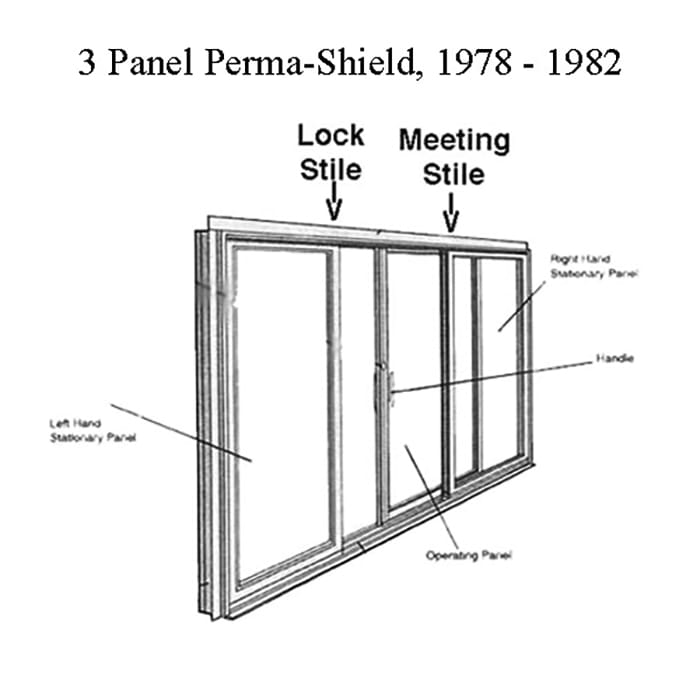

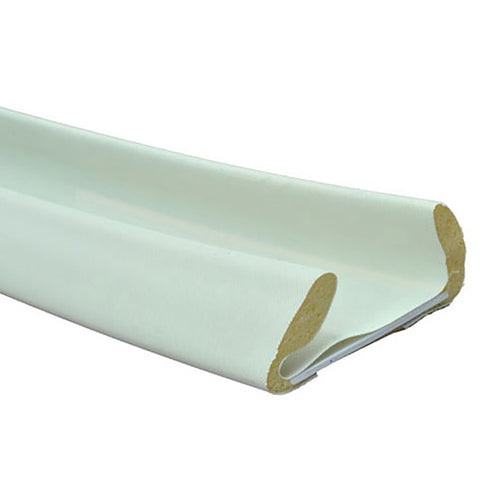

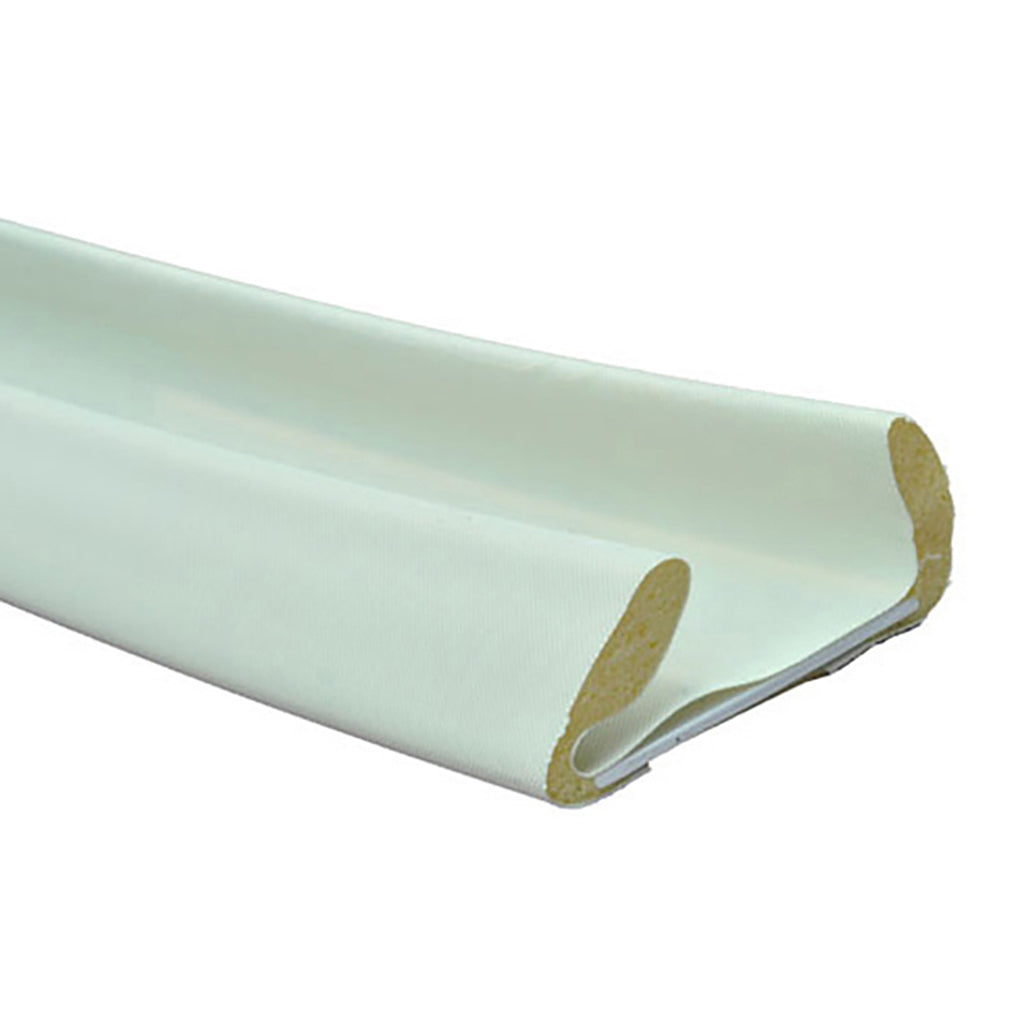

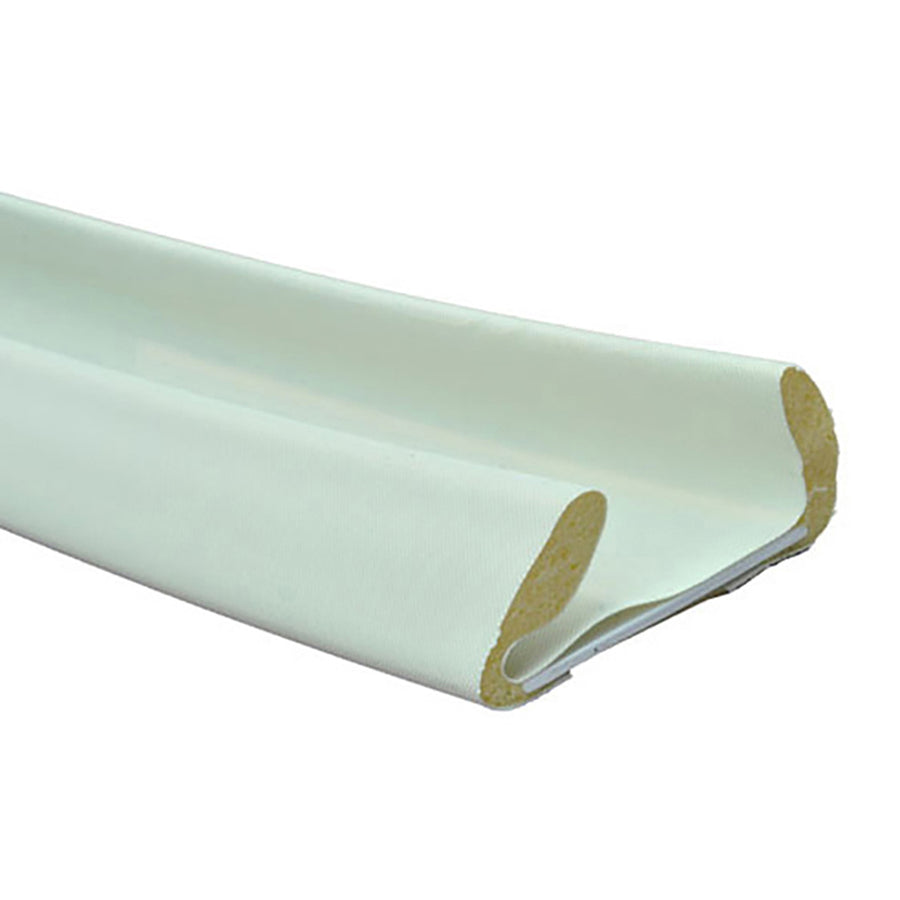

Left-handed operating lock stile weatherstrip for 3-panel Perma-Shield gliding patio doors manufactured from 1978 to June 2000. This is for the operating panel with a cutout near the center for the lock; for stationary panel see 1997093. This weatherstrip is foam-filled with screws included. - DISCONTINUED

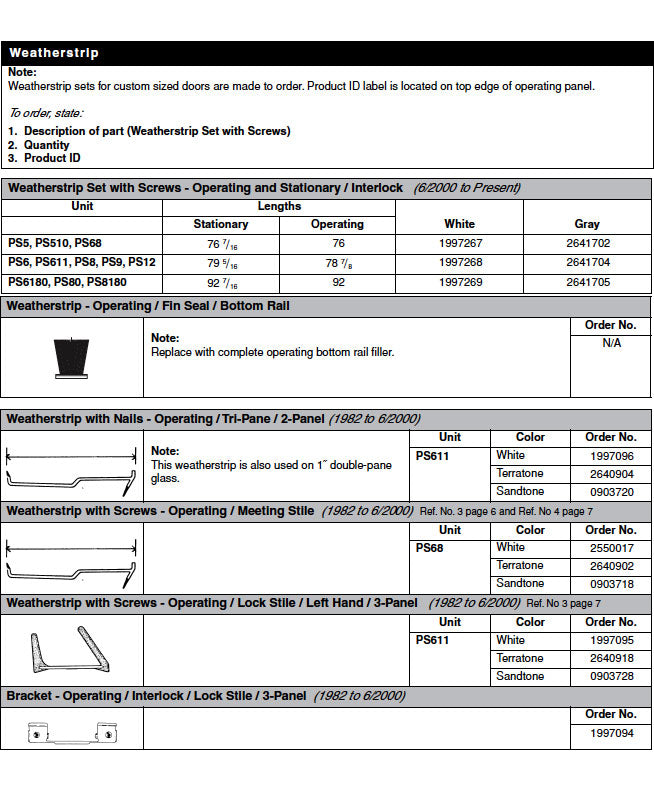

REPLACE with 1997268 - 6-11  Weatherstrip Set w/screws-Oper. & Sta./Interlock - White

Color: White
Weatherstrip Length: 79-1/16"

Basic Installation Instructions:
1. Mark where the cut outs are located on current door
2. Check you have the correct weatherstrip, both lengths and cut outs match
3. Remove old weatherstrip - most older doors had staples and some had a contact cement holding weatherstrip tight to door panel. May need to pull and scrap to remove.
4. Clean Surface
5. Apply Vinyl to Vinyl adhesive 1357007, allow to air dry a few minutes
6. Start at the lock cutout and work the weatherstrip outward, being sure the cut out is in the proper place.
7. Attached with staples or small tacks.

For more information, please read article: Identify Your Andersen Weatherstrip or download a Worksheet in PDF format to help you decipher which door you have.

Related Parts:
1997085 - Meeting Panel Interlock, Operating Door (Rigid) - White
1997086 - Meeting Panel Interlock, Stationary Door (Foam) - White
1997092 - Stationary 3 panel Interlock Bracket
1997093 - Stationary Panel (w/ lock cut out ) Lock Stile Weatherstrip - White
