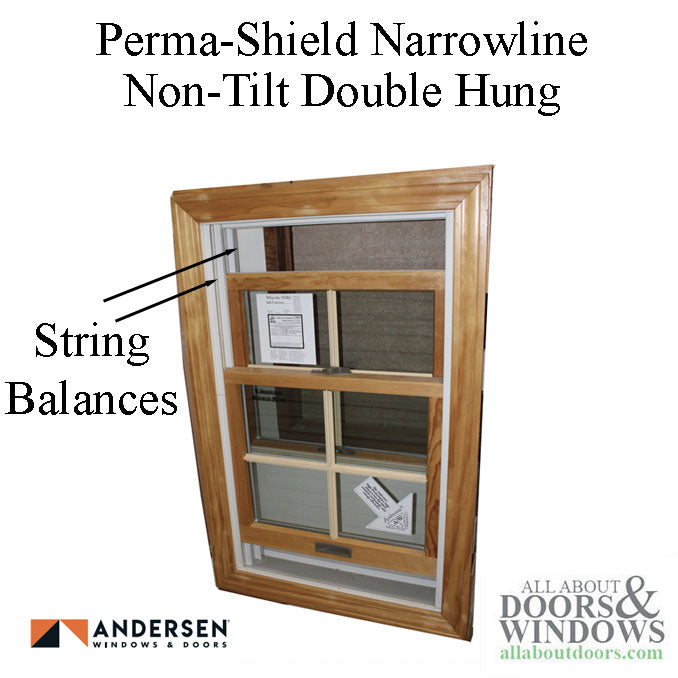

Glazing bead for upper rails and sides on Andersen Pera-Shield Narrowline, Non-Tilt Double Hung window with 3/8 inch Insulated glass. This window uses an overhead balance with strings attached to each side of the sliding window sash.

Narrowline Service Dates: 1968 - 2012; Different Years, used different beads

Application: Top Sash, Upper rail OR Sides

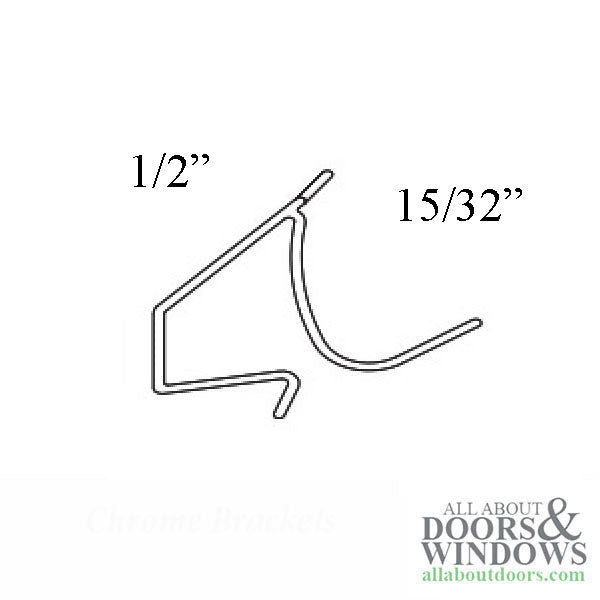

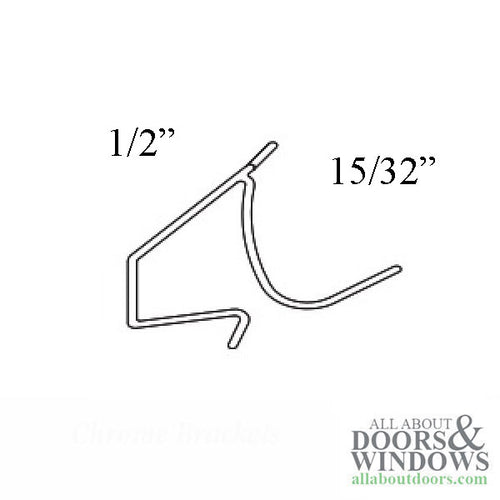

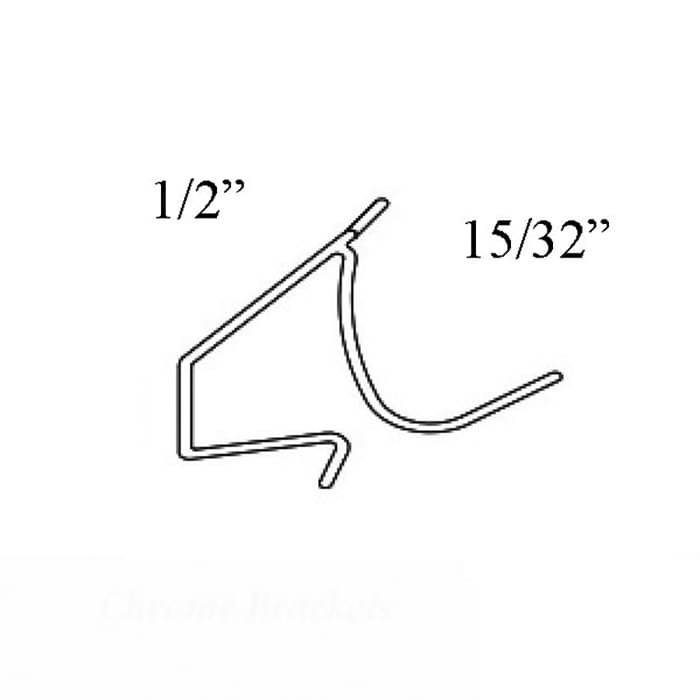

Glazing Bead - 3/8˝ Insulated glass upper rails or Sides (1980 to 1991)

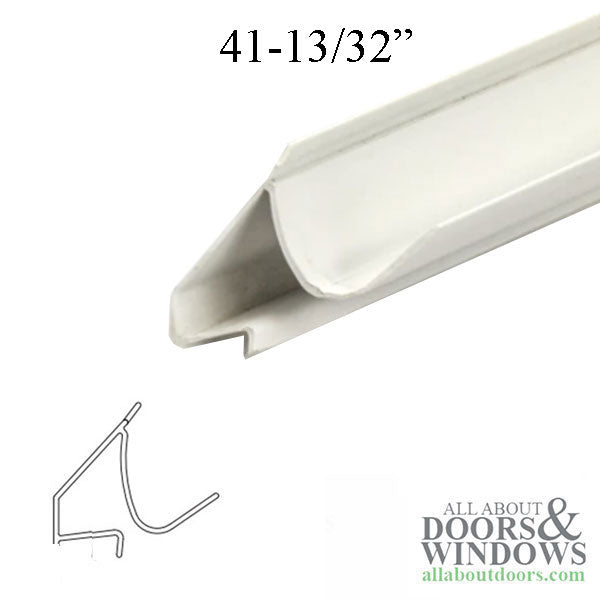

Length: 41-13/32 May be cut to size for units smaller than 38 sash width
Material: Rigid Vinyl
Color: White

Note 1:

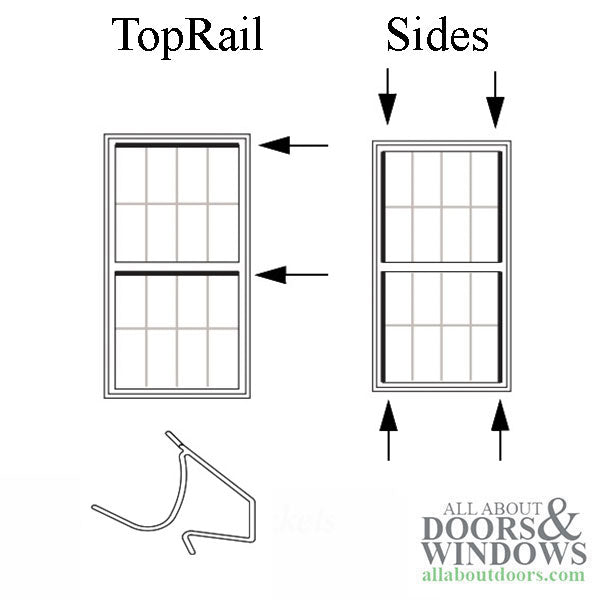

The glazing bead is different on sides, top of each sash, bottoms of each sash
Note 2:
Two used per unit. Use on Dual Pane (XI) organic glass with metal spacer or High Performance™ glass with metal spacer.

Andersen Narrowline Glazing Beads - Top only (1980 to 1991)
May be ordered from factory to length, sizes shown below
Unit Size Part #
18 17-13/32 1650632
20 21-13/32 1650634
24 25-13/32 1650636
28 29-13/32 1650638
30 33-13/32 1650640
34 37-13/32 1650642
38 41-13/32 1650644

Andersen Narrowline Glazing Beads - Sides Only (1980 to 1991)
May be ordered from factory to length, sizes shown below
Unit Size Part #
210 14-15/32 1650616
32 16-15/32 1650618
310 20-15/32 1650620
42 22-15/32 1650622
46 24-15/32 1650624
52 28-15/32 1650626
56LWR 36-15/32 1650628
62 34-15/32 1650630
