Andersen Primed wood casement Replacement Window sash, Clear Insulated Dual Pane Glass, NO ROUTE in bottom for Track.
Series: N - Narrow Width, W - Wide Glass & WX - Extra Wide Glass
Exposed Glass: Use Exposed Daylight Opening, Unobstructed Glass to determine actual sash size

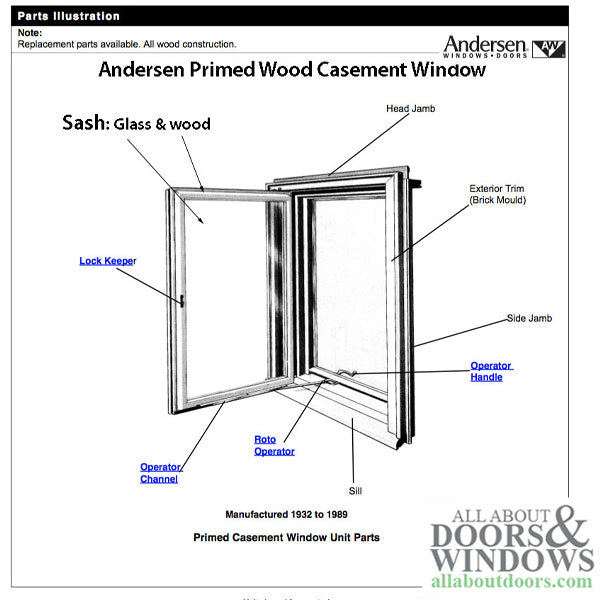

Andersen Primed Wood Casement Window Sash, Dual Pane Insulated Glass
Routed Bottom Rail: NO 1975-1989
Routed Bottom Rail: Yes 1945-1974
NOTE:
Sash from 1975 - 1989 Do NOT have a routed bottom rail

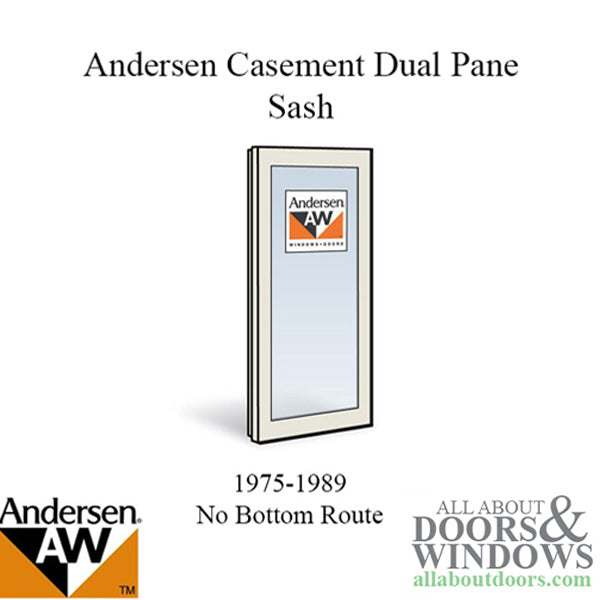

Andersen Window Sash - Dual Pane / Primed Wood - NO Bottom Route - Windows 1975-1989
This casement window sash does not include any mounting hardware
| Unit No. | Order No. | Unit No. | Order No. |
| N2 | 0517308 | W4 | 0559620 |
| N3 | 0517316 | W5 | 0559624 |
| N30 | 0517312 | W6 | 0559628 |
| N4 | 0517320 | WX3 (77) | 0559818 |
| N5 | 0517324 | WX3 (75) | 0559618 |
| W2 | 0559608 | WX4 (77) | 0559822 |
| W30 | 0559612 | WX4 (75) | 0559622 |
| W3 | 0559616 | WX5 (77) | 0559826 |
Andersen Window Sash - Dual Pane / Primed / with Routed Bottom Rail - Windows 1945 - 1974
Sash from 1945 - 1974 have a routed bottom rail for the track
| Unit No. | Order No. | Unit No. | Order No. |
| N2 | 0500145 | W30 | 0500151 |
| N30 | 0500146 | W3 | 0500152 |
| N3 | 0500147 | W4 | 0500153 |
| N4 | 0500148 | W5 | 0500154 |
| N5 | 0500149 | W6 | 0500155 |
| W2 | 0500150 |

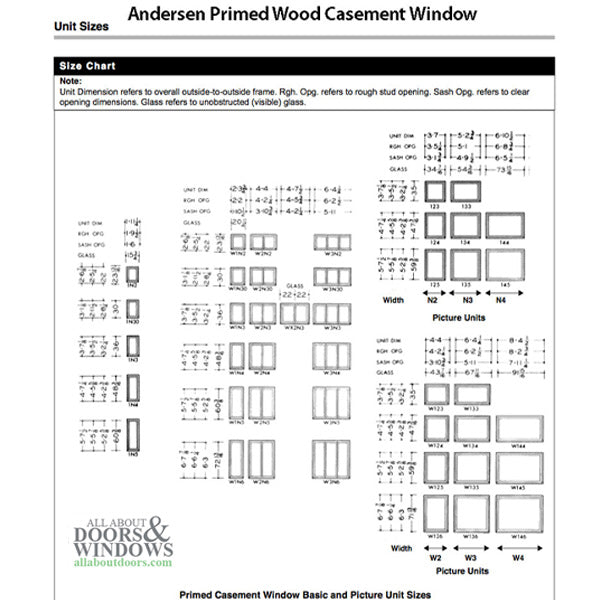

Andersen Window Sash Size Table - Standard Window
| Unit No. | Overall Sash (w x h) | Unobstructed Glass (w x h) | Actual Glass (w x h) |
| N2 | 18 17/95 × 26 25/32 | 15 3/4 × 23 13/16 | 16 5/8 × 24 11/16 |
| N30 | 18 23/32 × 32 94/97 | 15 3/4 × 30 | 16 5/8 × 30 7/8 |
| N3 | 18 23/32 × 38 94/97 | 15 3/4 × 36 | 16 5/8 × 36 7/8 |
| N4 | 18 23/32 × 51 5/32 | 15 3/4 × 48 3/16 | 16 5/8 × 49 1/16 |
| N5 | 18 23/32 × 63 32/93 | 15 3/4 × 60 3/8 | 16 5/8 × 61 1/4 |
| W2 | 23 7/32 × 26 25/32 | 20 1/4 × 23 13/16 | 21 1/8 × 24 11/16 |
| W30 | 23 7/32 × 32 94/97 | 20 1/4 × 30 | 21 1/8 × 30 7/8 |
| W3 | 23 7/32 × 38 94/97 | 20 1/4 × 36 | 21 1/8 × 36 7/8 |
| W4 | 23 7/32 × 51 5/32 | 20 1/4 × 48 3/16 | 21 1/8 × 49 1/16 |
| W5 | 23 7/32 × 63 32/93 | 20 1/4 × 60 3/8 | 21 1/8 × 61 1/4 |
| W6 | 23 7/32 × 75 25/32 | 20 1/4 × 72 13/16 | 21 1/8 × 73 11/16 |
| WX3 (77) | 25 23/32 × 38 94/97 | 22 3/4 × 36 | 23 5/8 × 38 7/8 |
| WX3 (75) | 24 31/32 × 38 94/97 | 22 × 36 | 22 7/8 × 38 7/8 |
| WX4 (77) | 25 23/32 × 51 5/32 | 22 3/4 × 48 3/16 | 23 5/8 × 49 1/16 |
| WX4 (75) | 24 31/32 × 51 5/32 | 22 × 48 3/16 | 22-7/8 × 491/16 |
| WX5 | 25 23/32 × 63 32/93 | 22 3/4 × 60 3/8 | 23-5/8 × 611/4 |
