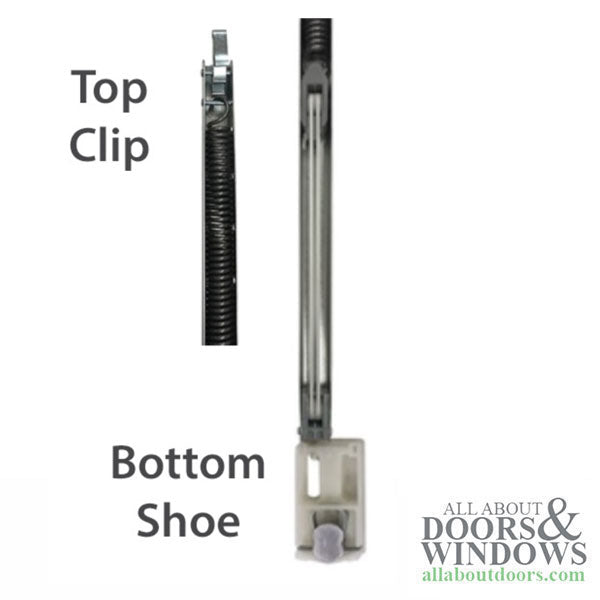

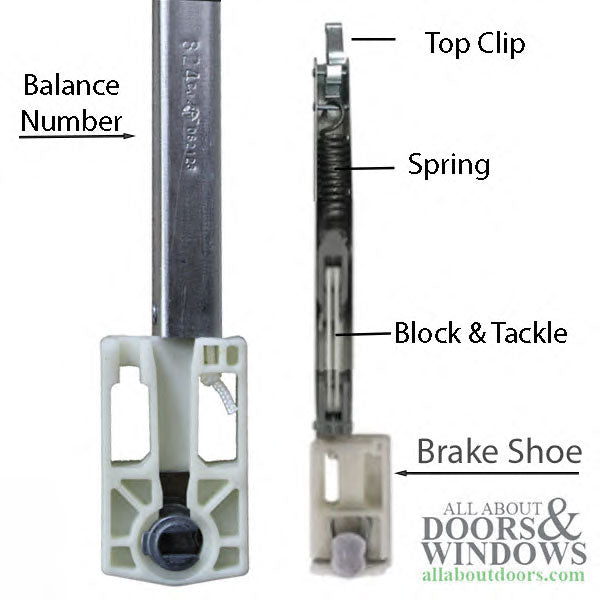

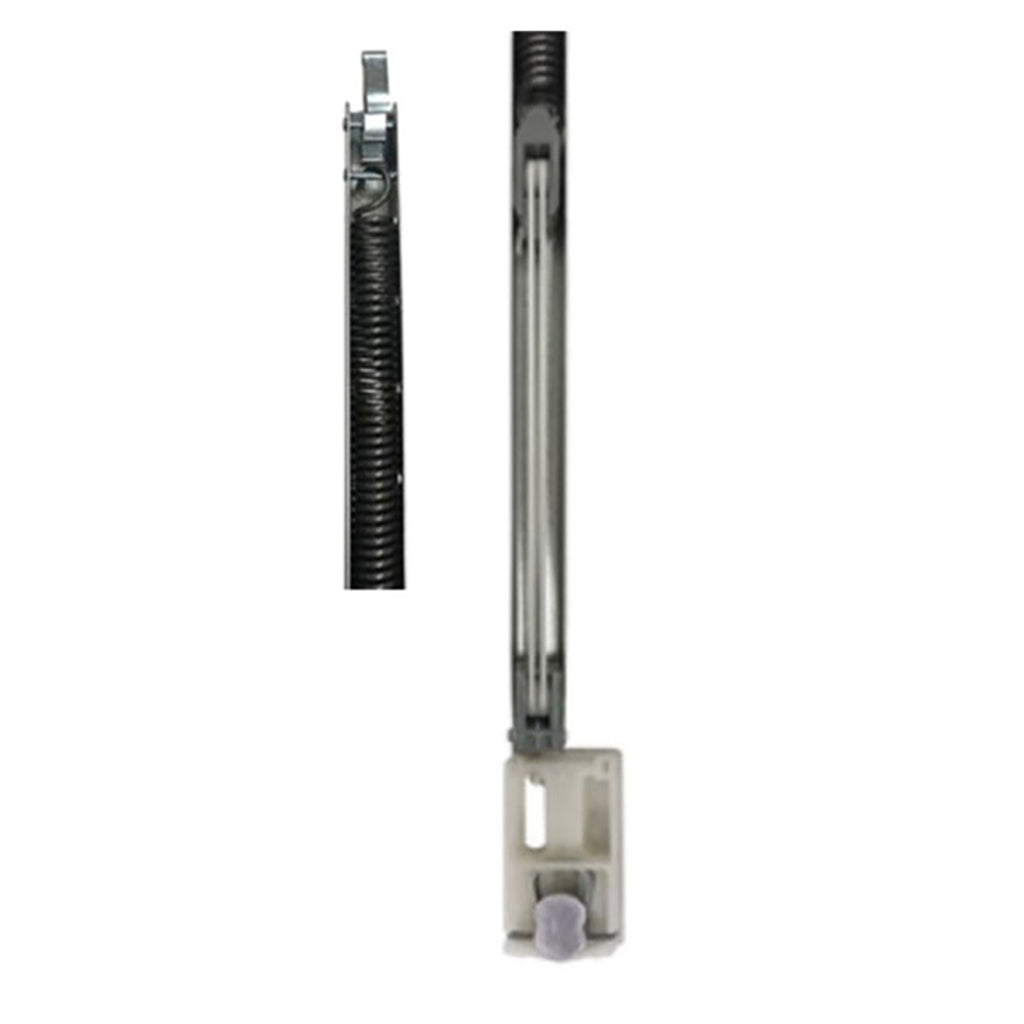

Andersen® replacement block and tackle with brake shoe attached sash balancer for 400 Series Tilt-Wash double-hung windows

Balance Number: 1034
Balance Length: 34 inch
Brake Shoe: Attached

Used with all HP glass types prior to April 2012 and with units with 2.2 etched into glass for sizes 2662 and 3862 Cottage Lower Sash
Used with units with 3.0 etched into glass for sizes 2062, 3462, 1862 Cottage Lower Sash and 21062 Cottage Lower Sash

To Remove Tilt-Wash Sash:
* Tilt window horizontal
* Depress balancer shoe retainer clip, if present, using a small flat blade screwdriver releasing sash pivot pin on bottom sash.
* Raise bottom sash corner two inches above balance shoe and hold in place.
* Repeat steps for opposite side of the bottom sash

Additional Information:
* Balancer was modified in 2016 - order quantity of two when ordering replacements for a unit manufactured prior to November 2016
* Balancers are found in the side jambs of both the upper and lower sash, when ordering balances, Andersen recommends replacing all balances and the window side jamb liners
