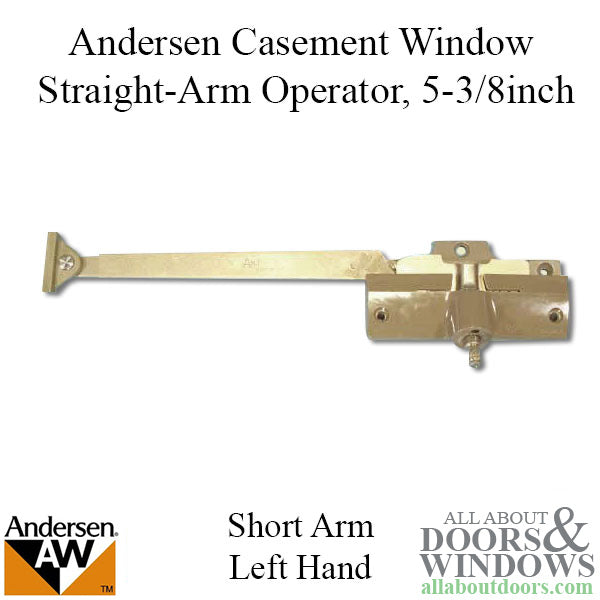

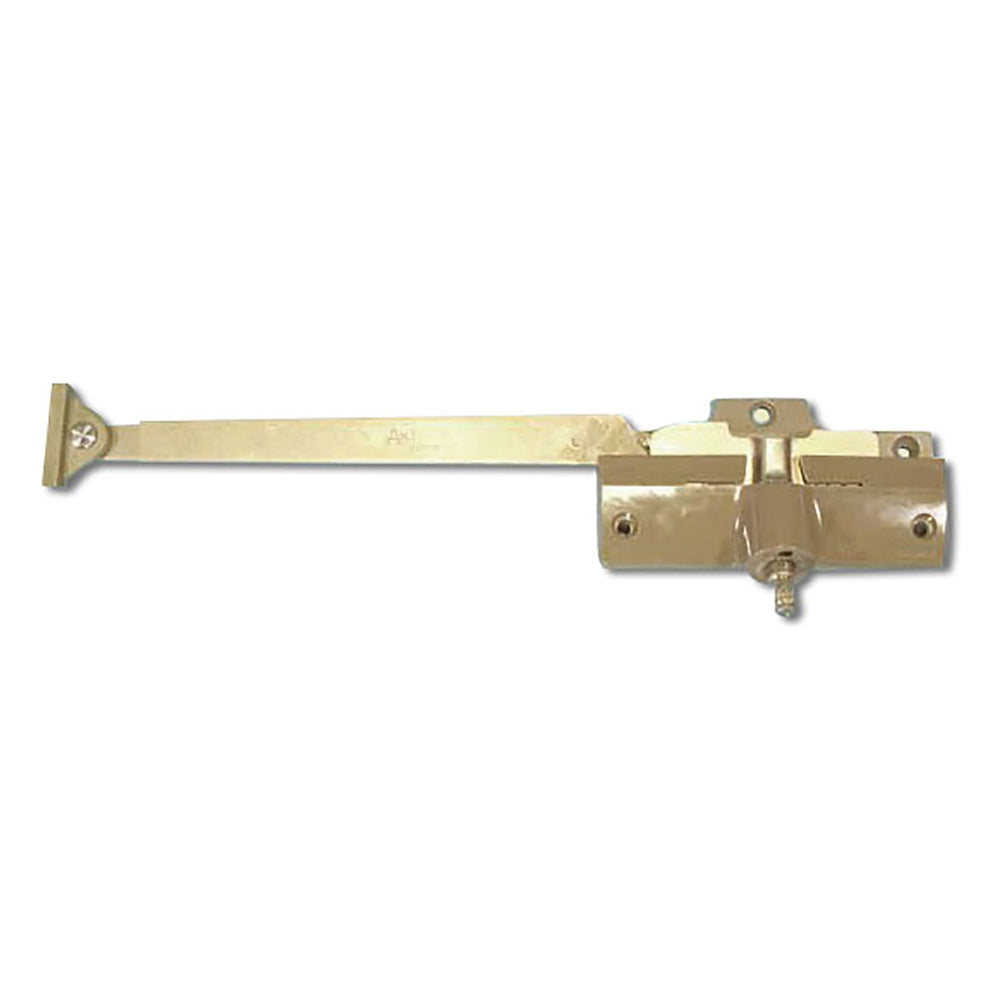

Andersen - Perma-Shield - Casement Window Straight Arm Operator LH, Wood, Single Arm, 7193-32
Part Number: Price: $56.04Andersen Window - Perma-Shield - Casement Window
Straight Arm Operator LH, Wood, Single Arm, PSC,
7193-32, C R, 5-3/8" SHORT ARM - 1978--82
7193 / 7191-32, 5-3/8" . SHORT ARM CR Series, Left Hand
Straight arm operator for left hand casement units 1974 to 1995.
This operator fits unit widths with the visible glass dimension width of 12 5/8.

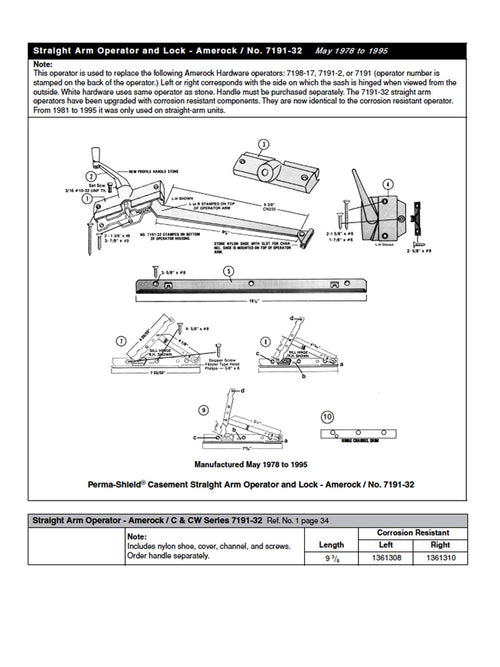

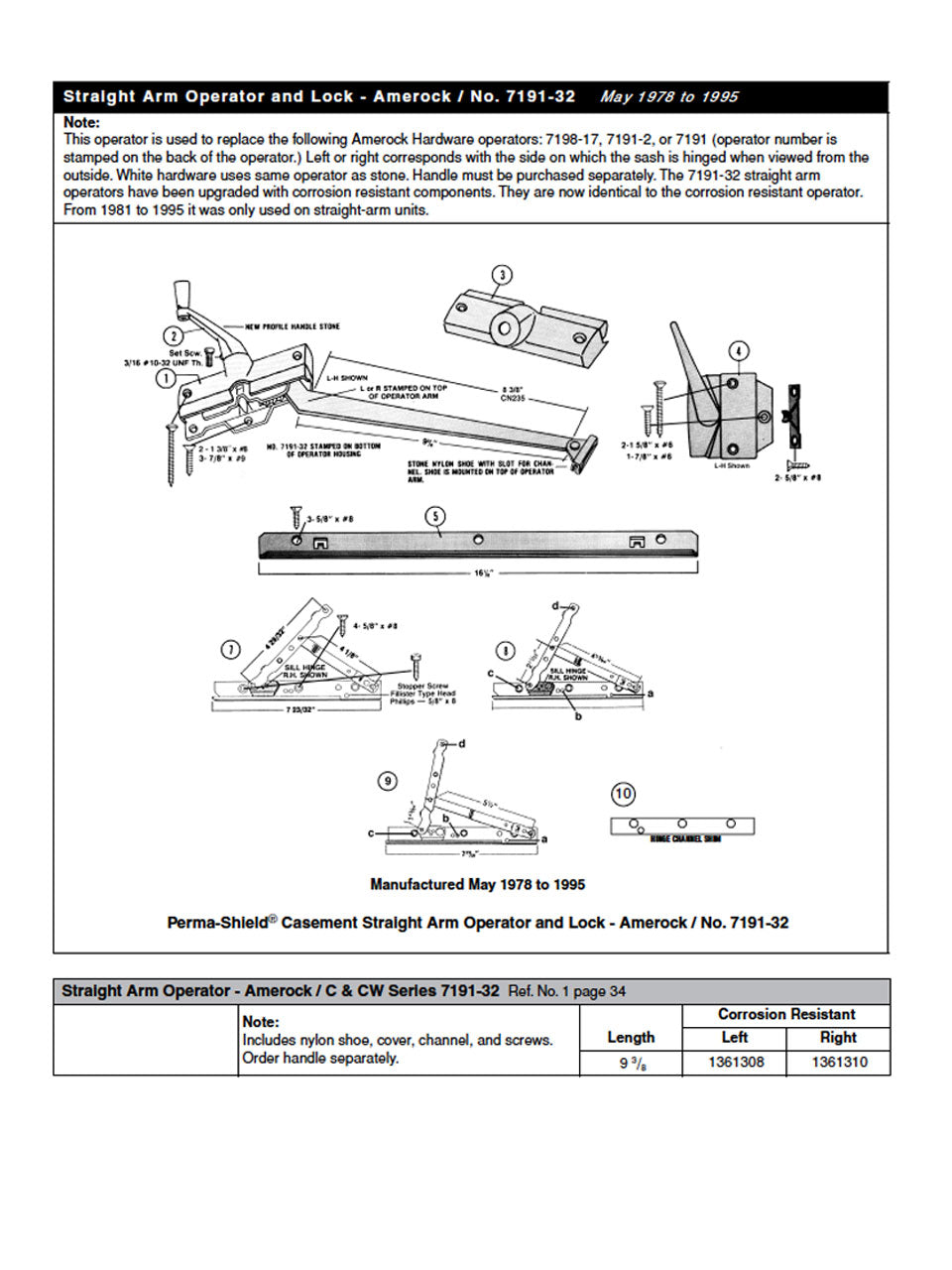

It is used to replace previous vintage operators with series numbers 7198-17, 1818-2, or 7191 stamped on the back of the operator.
This operator stamped with series 7191-32 has been upgraded with corrosion resistant components.

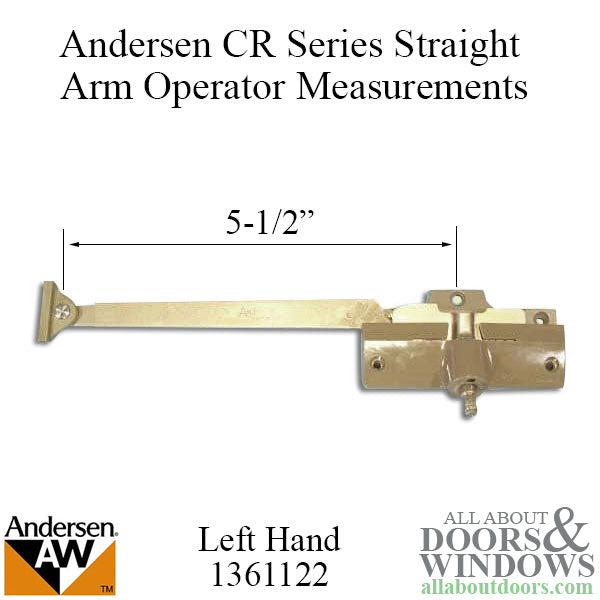

The length of the arm from the rivet to the elbow or bend is 5 1/2. Includes nylon shoe, cover, channel and screws.
Handle must be purchased separately.
A left hand unit will have the lock on the left hand side viewed from the interior.
Related Andersen Casement window hardware:
1361122 - Straight Arm Operator - CR Series - left
1361124 - Straight Arm Operator - CR Series - right
0532408 - Operator Handle Only, Stone - left/right
1351332 - Operator Handle Only, White - left/right
0532610 - Operator Cover - Stone
1351330 - Operator Cover - White
Written Article: Andersen Casement Window Operator Replacement
Straight Arm Operator LH, Wood, Single Arm, PSC,
7193-32, C R, 5-3/8" SHORT ARM - 1978--82
7193 / 7191-32, 5-3/8" . SHORT ARM CR Series, Left Hand
Straight arm operator for left hand casement units 1974 to 1995.
This operator fits unit widths with the visible glass dimension width of 12 5/8.
It is used to replace previous vintage operators with series numbers 7198-17, 1818-2, or 7191 stamped on the back of the operator.
This operator stamped with series 7191-32 has been upgraded with corrosion resistant components.
The length of the arm from the rivet to the elbow or bend is 5 1/2. Includes nylon shoe, cover, channel and screws.
Handle must be purchased separately.
A left hand unit will have the lock on the left hand side viewed from the interior.
Related Andersen Casement window hardware:
1361122 - Straight Arm Operator - CR Series - left
1361124 - Straight Arm Operator - CR Series - right
0532408 - Operator Handle Only, Stone - left/right
1351332 - Operator Handle Only, White - left/right
0532610 - Operator Cover - Stone
1351330 - Operator Cover - White
Written Article: Andersen Casement Window Operator Replacement
