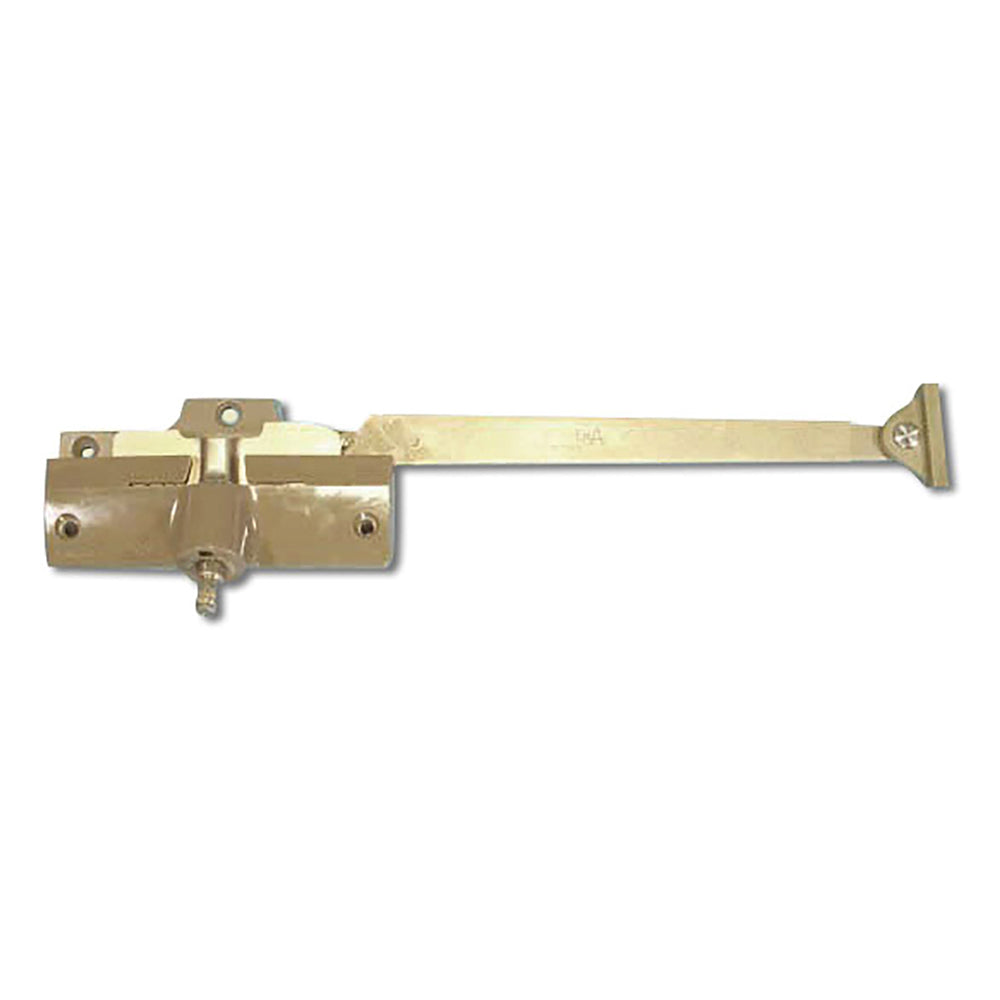

Andersen - Perma-Shield - Casement Window Straight Arm Operator RH, Wood, Single Arm, 7193-32

Part Number:1361124 Price: $54.29

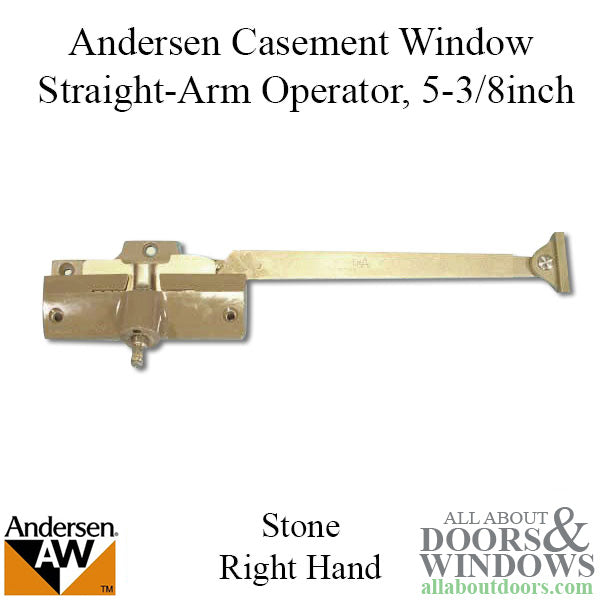

Andersen Perma-Shield Casement Window Straight Arm Operator
Right Hand as Viewed from Outside. ( Right Hand Shown )
Wood, Single Arm, PSC, 7193-32,
Series: CR - Short Arm
Arm Length: 5-3/8 inch
Years in Service: 1966 - 1995
Window Type: Perma-Shield Casement Windows

Straight arm operator for right hand casement units 1966 to 1995.
This operator fits unit widths with the visible glass dimension width of 12 5/8 inch.

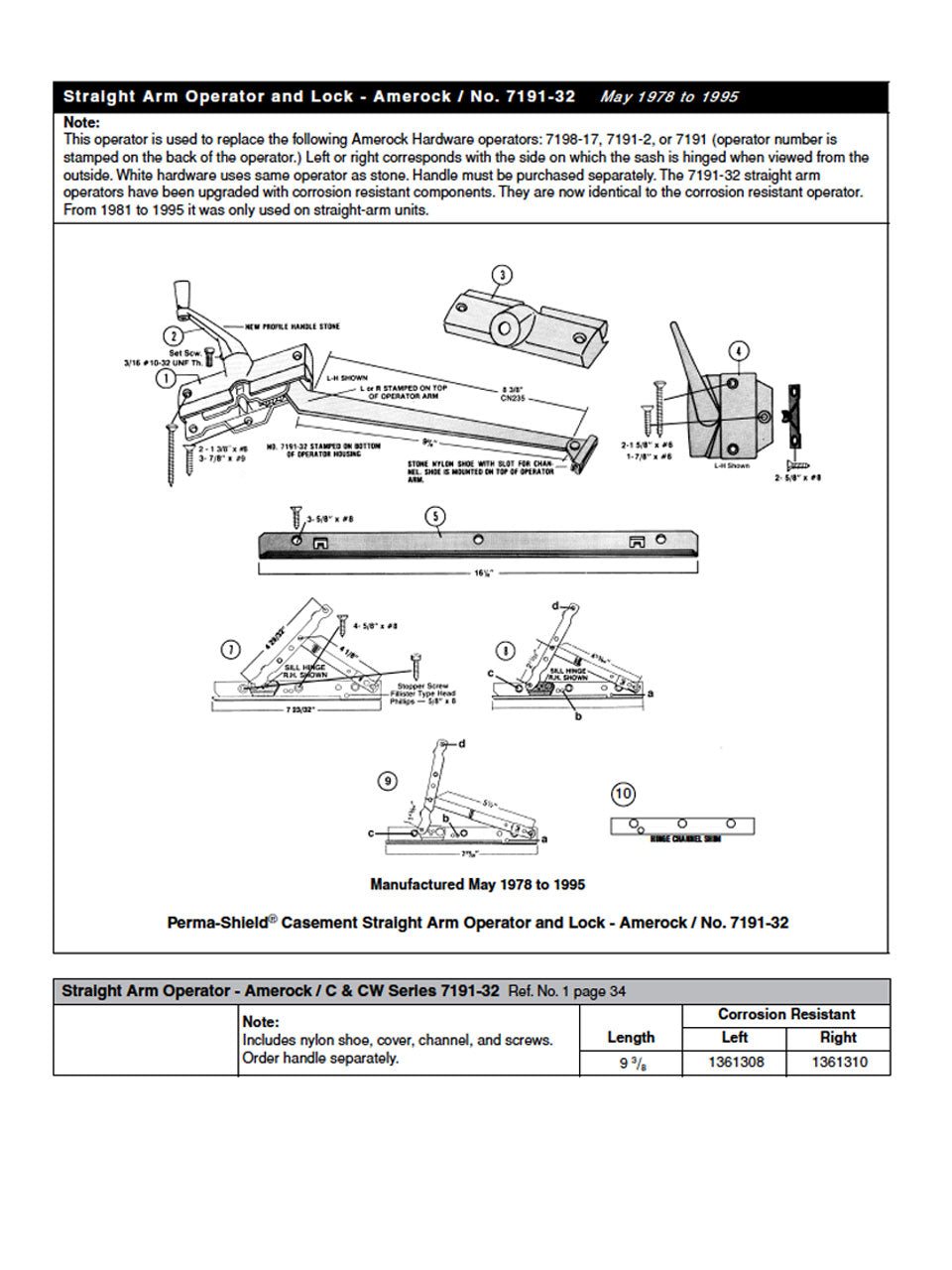

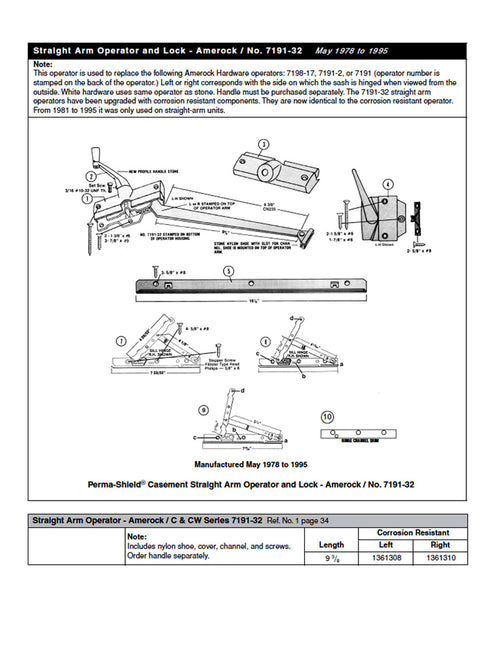

It is used to replace previous vintage Andersen operators with series numbers 7198-17, 1818-2, or 7191 stamped on the back of the operator.
This operator stamped with series 7191-32 has been upgraded with corrosion resistant components.

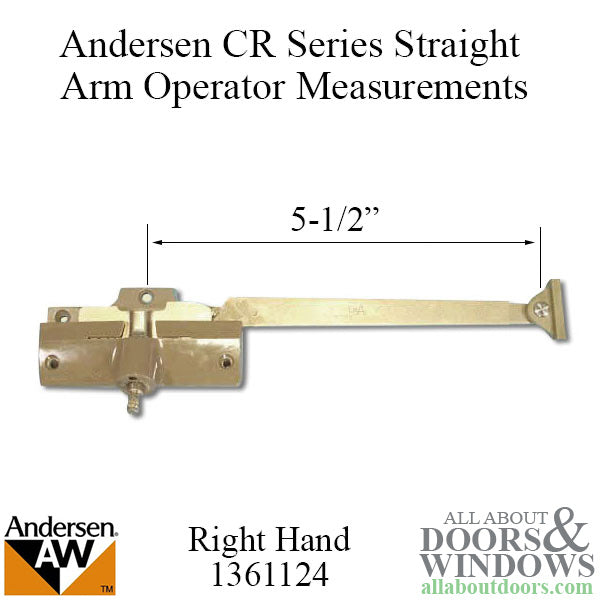

The length of the arm from the rivet to the elbow or bend is 5 1/2 inch Includes nylon shoe, cover, channel and screws.
Handle must be purchased separately.
A right hand unit will have the lock on the right hand side viewed from the interior.

Related Andersen Casement window hardware:
1361122- Straight Arm Operator - CR Series - left
1361124 - Straight Arm Operator - CR Series - right
0532408 - Operator Handle Only, Stone - left/right
1351332 - Operator Handle Only, White - left/right
0532610 - Operator Cover - Stone
1351330 - Operator Cover - White

Written Article: Andersen Casement Window Operator Replacement
