Atrium MP Lock / Essve, Atrium, Marvin, Truth 3-Point Lock, 81 inch Euro - Disc.

Part Number: 499051699 Price: $0.00
Discontinued: See 4990618 for Replacement

Original Atrium ESSVE Lock info:

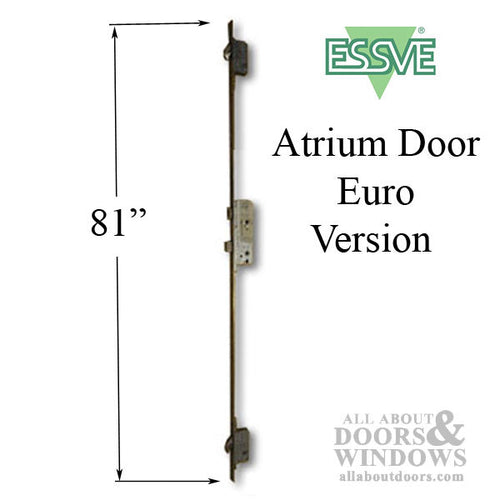

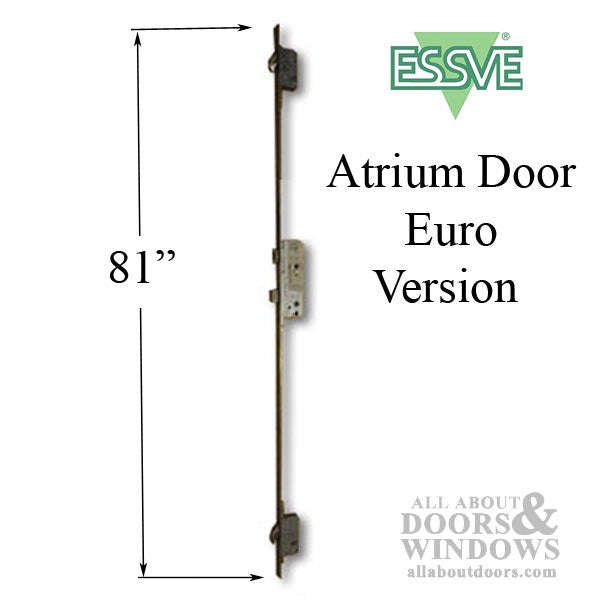

Overall Length: 81" with radius ends
Faceplate Width: 25/32 (20mm)
Handle PZ: 3-5/8 (92mm)
Lock Cylinder: European Style
Backset: 1-3/4" (45mm)

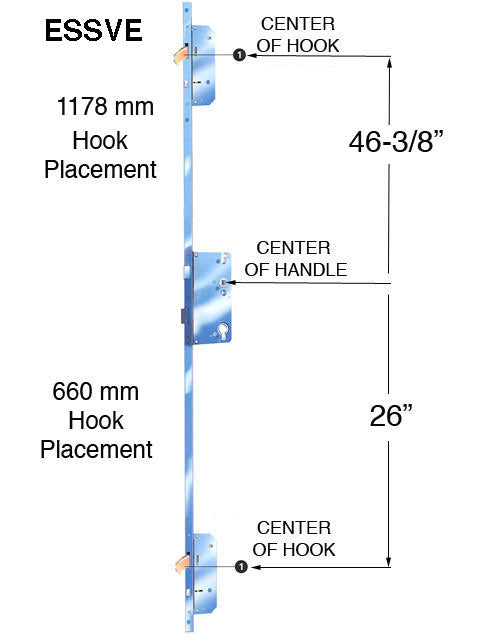

Bottom Hook Position: 26-3/4" (replacement 26")
Top Hook Position: 46-3/8" (replacement 45-3/4")

ESSVE Replacement Lock Info (Replacement Article):
The replacement kit has square vs radius ends; it is crop-able to fit your door panel height requirements 81-1/8". How to trim lock article

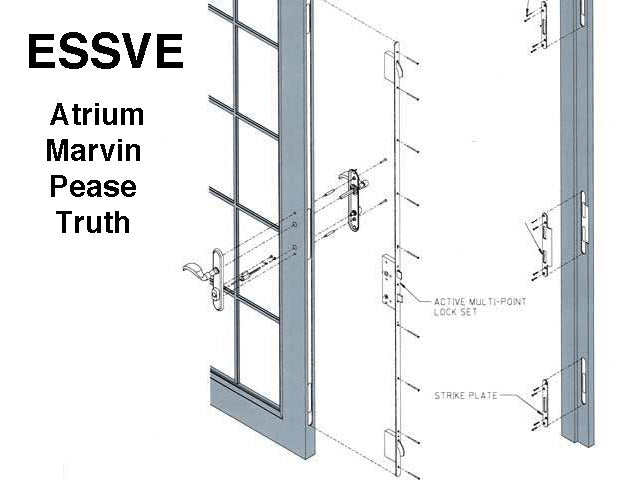

The Gear and hook lock boxes will fit back into the mortised groove in the door panel however, the hooks are off a little and may require slightly enlarging the strike plate hole.
ATRIUM DOORS - The original handle set trim for Atrium (Euro Cylinder Version) will not work; will require new trim. See additional images.
MARVIN / PEASE DOORS - The original handle set trim for Marvin, Pease and others with American Version lock have installation screw hole spacing of 6-3/8.
This trim will work with minor modifications to the lock body cylinder hole where the bottom screw goes though (a little tight, needs to be slightly enlarged with rasp).
Some PEASE DOORS had different Bore Hole spacing than others; the handle set trim was 2-3/8" wide, contact us if this is your case.

New Handle Set Trim Options:
If replacing we recommend the Expressions 2 x 12 Series Hardware
395009 - Modern, Square Top, Keyed
395007 - Traditional, Arch top, Keyed
