Bilt Well Casement Operator, 14-1/2 - DISC.- See Notes

Part Number:55004
Please note, this product has been discontinued.

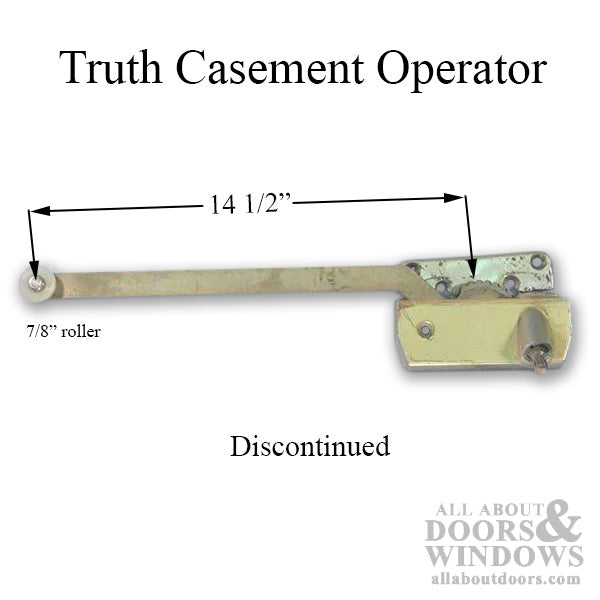

DISCONTINUED: Bilt Well Casement Operator with Large 7/8 inch round nylon button, 10-1/2 Straight Arm measured from the center of the operator to the center of the button.
The replacement operator has a smaller nylon button and requires changing the operator and metal track on window sash.
Note: 14-1/2 inch straight arm is replaced with a 13-1/2 inch arm.
14-1/2 inch straight arm (measured from the center of the operator to the center of the button)
Large 7/8 inch nylon button.

Replace with 55037 Traditional Style ( Limited Inventory)
The replacement has a smaller nylon button and requires changing the operator and metal track on window sash.

NOTE: 1
When Traditional styles are no longer available the operator may be replaced with Truth discontinued styles Ellipse, Nested or Maxim Series ( Limited Inventory)
NOTE: 2
Current replacement would be the Encore Series that uses a folding handle and cover with new track.
52.11.00.211 Encore Straight Arm Operator, LH
55309 Folding handle and Cover
55104 Track and Slide Guide
