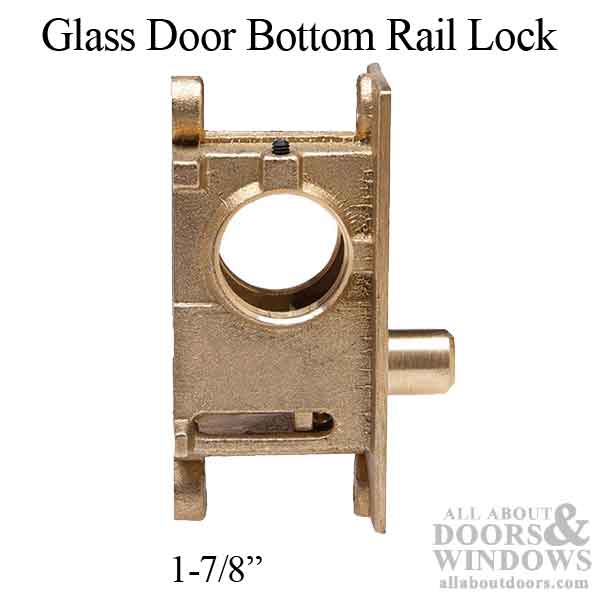

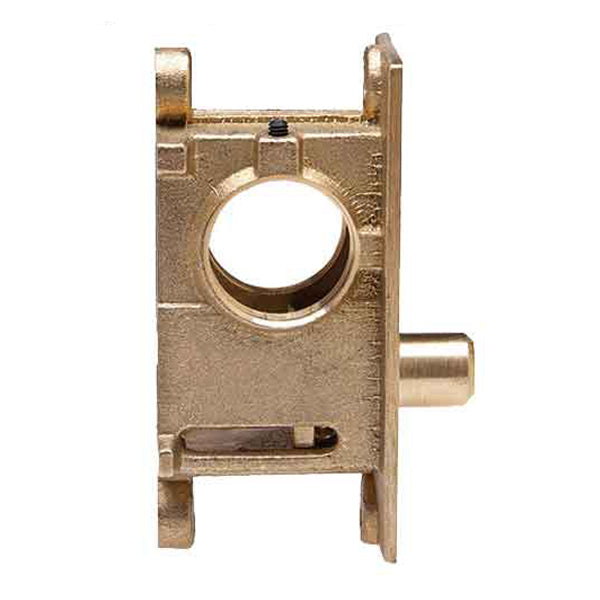

Bottom Rail Lock, 1-7/8" for Glass Doors

Kaba ilco BRL-01 bottom rail lock for glass doors.

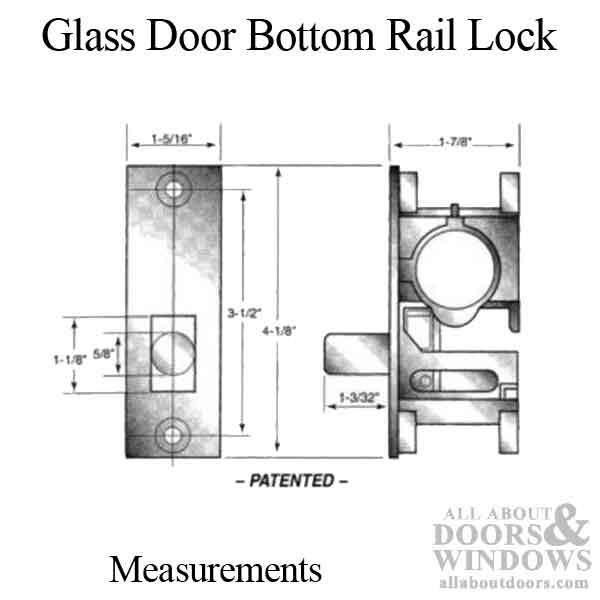

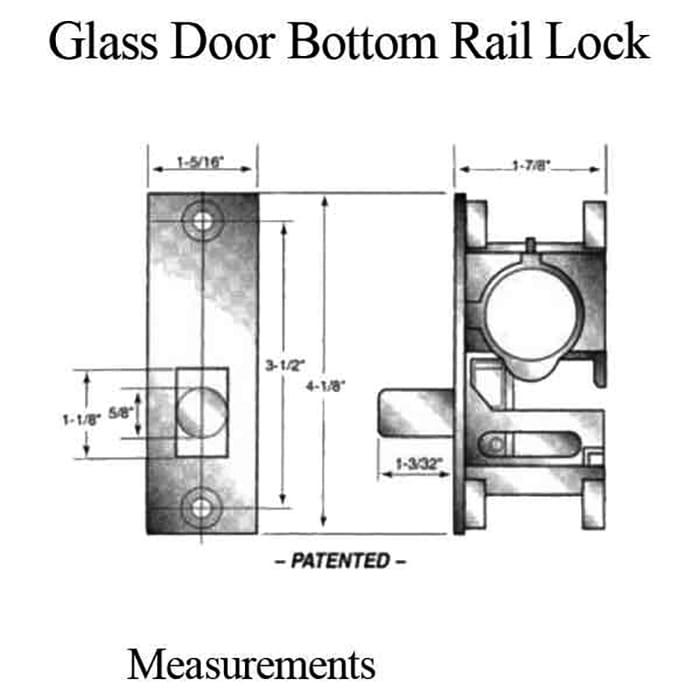

Faceplate Width: 1-5/16 inch

Faceplate Length: 4-1/8 inch

Lock Depth: 1-7/8 inch

Screw Holes: 3-1/2 inch

Bolt Diameter: 5/8 inch

Bolt Projection: 1-3/32 inch

Material: Cast Zinc

Sold Each, No screws

Note:

This lock is installed in the bottom rail or in patch fitting of an “all glass” door.

Bolt is retracted by a 1-5/32" (29.35 mm) mortise cylinder with standard cam.
