Casement Window SASH LOCK, 4 Screw holes, Left hand

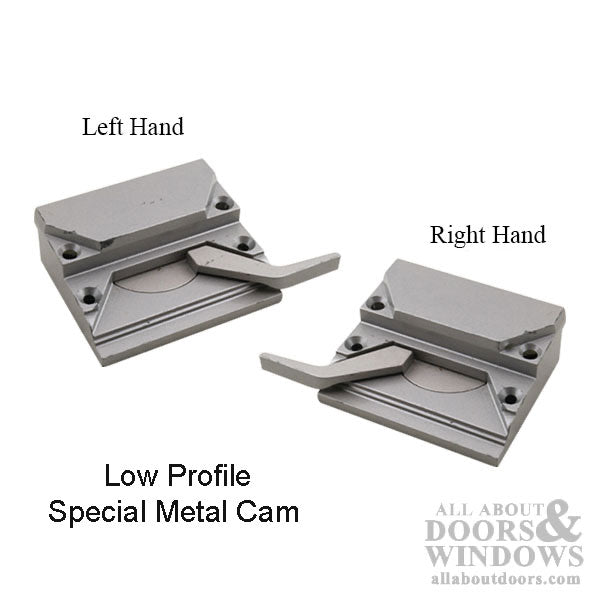

Part Number: 55427-PBLow Profile, Special Function Home Guard sash lock for Weather Shield casement windows
Application: Wood Casement Window

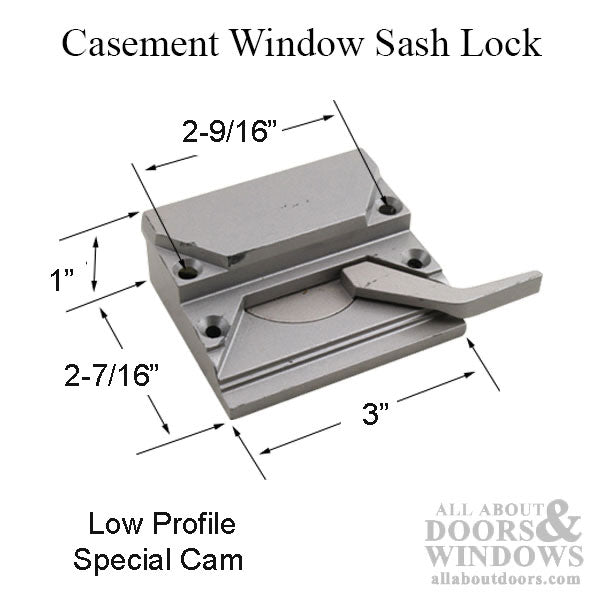

Overall Length: 3 inch
Base Width: 2-7/16 inch
Screw Hole center spacing: 2-19/32 inch (4 screw holes)
Projection - 1 inch
Handed: Yes as shown in locked position.

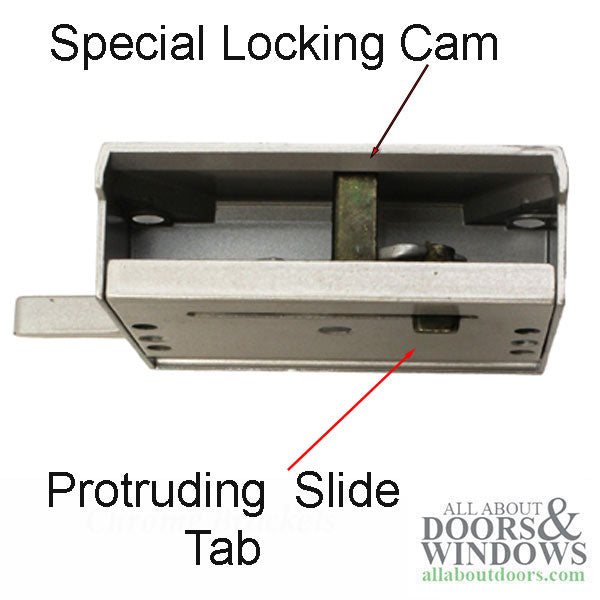

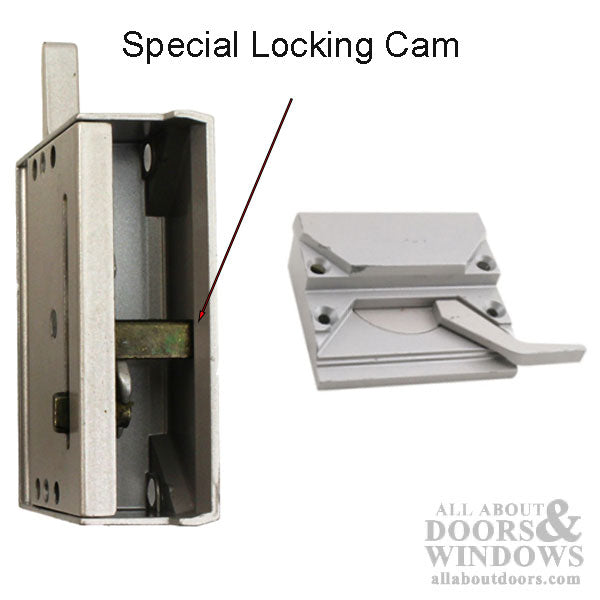

Cam Type: Flat Surface with Bevel
Color : Truth .47 Champagne (Weathershield Pewter)
NOTE: This sash lock is NOT the same as the 55417 and 55418. It uses a different cam, lower profile and different screw hole spacing
Related Casement Hardware
55417 Standard Cam, Left Hand (Truth 16.21 Series)
55418 Standard Cam, Right Hand (Truth 16.21 Series)
Application: Wood Casement Window
Overall Length: 3 inch
Base Width: 2-7/16 inch
Screw Hole center spacing: 2-19/32 inch (4 screw holes)
Projection - 1 inch
Handed: Yes as shown in locked position.
Cam Type: Flat Surface with Bevel
Color : Truth .47 Champagne (Weathershield Pewter)
NOTE: This sash lock is NOT the same as the 55417 and 55418. It uses a different cam, lower profile and different screw hole spacing
Related Casement Hardware
55417 Standard Cam, Left Hand (Truth 16.21 Series)
55418 Standard Cam, Right Hand (Truth 16.21 Series)
